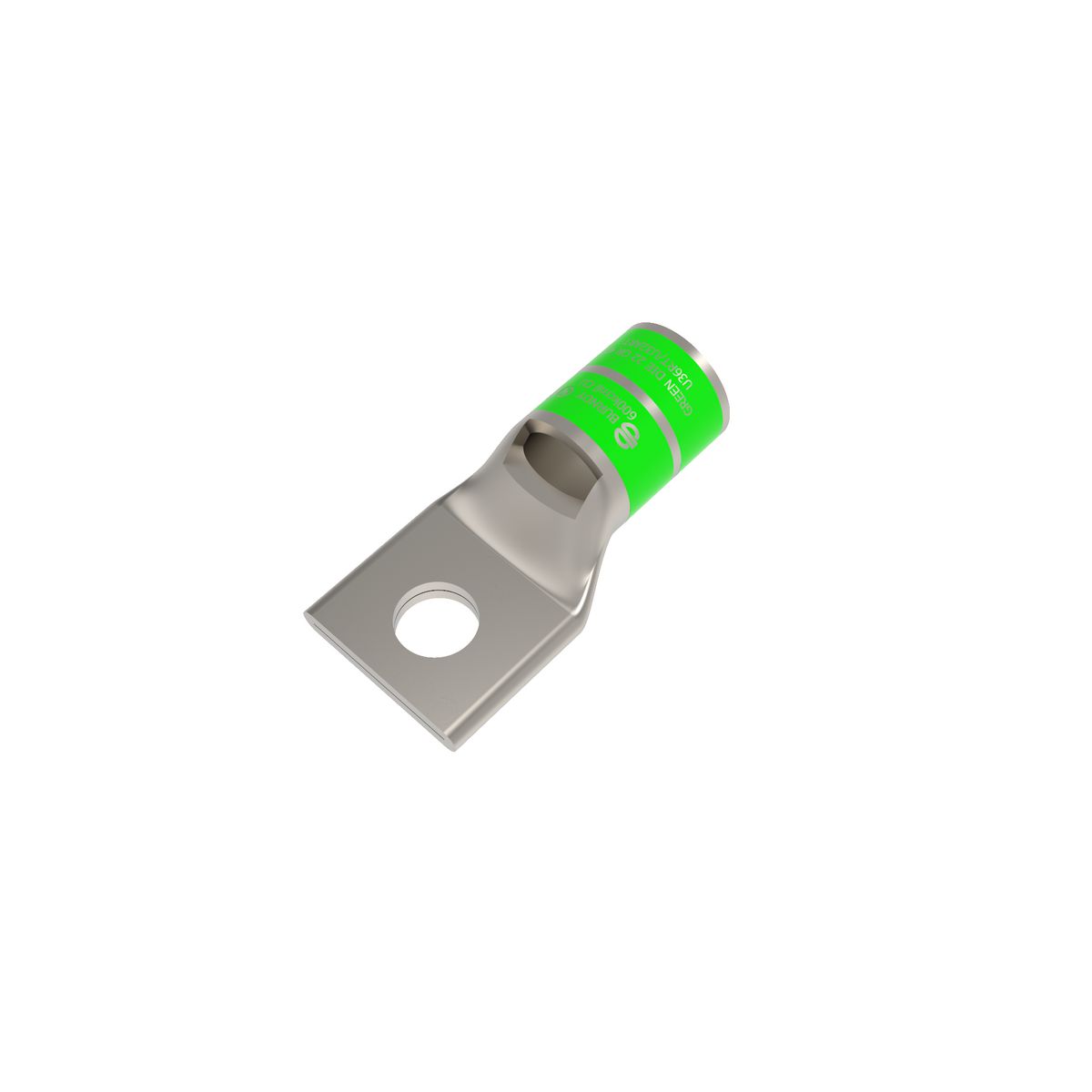

Burndy® YA36L11 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 600 kcmil Stranded Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA36L11 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 600 kcmil Stranded Copper Conductor, 1/2 in Stud
SKU337425
MFGR #YA36L11
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 1.19 in OD x 1.38 in L Barrel Type Chamfered/Skived/Standard Buy American Compliant C Catalog Number YA36L11 Color Green Color Code Green Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.4800 lb Gross Weight per Pack Metric 0.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.19 in Height [Metric] 3.0226 cm Length 3.29 in Length [Metric] 8.3566 cm Overall Length 3.29 in Returnable Y Series YA-L Specifications 1-3/4 in L Wire Stripe Standard UL 486A-486B Sub Brand Terminals, HYLUG Temperature Rating 90 °C Tongue Size 1.74 in W x 0.27 in THK Tongue Type Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181025039 UPC 12 781810250396 Voltage Rating 35,000 V Width 1.74 in Width [Metric] 4.4196 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 600 kcmil Conductor Type Stranded Copper Die Code 22/472 Material Copper Stud Size 1/2 in Wire Termination Features: Compression Terminal, With Inspection Window, Die Index: 22 or 472, Wire Strip Length: 1-3/4 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.19 in OD x 1.38 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA36L11 |
| Color | Green |
| Color Code | Green |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4800 lb |
| Gross Weight per Pack Metric | 0.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.19 in |
| Height [Metric] | 3.0226 cm |
| Length | 3.29 in |
| Length [Metric] | 8.3566 cm |
| Overall Length | 3.29 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 1-3/4 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | Terminals, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.74 in W x 0.27 in THK |
| Tongue Type | Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181025039 |
| UPC 12 | 781810250396 |
| Voltage Rating | 35,000 V |
| Width | 1.74 in |
| Width [Metric] | 4.4196 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 600 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 22/472 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: Compression Terminal, With Inspection Window, Die Index: 22 or 472, Wire Strip Length: 1-3/4 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight |
| Standard, short barrel |
