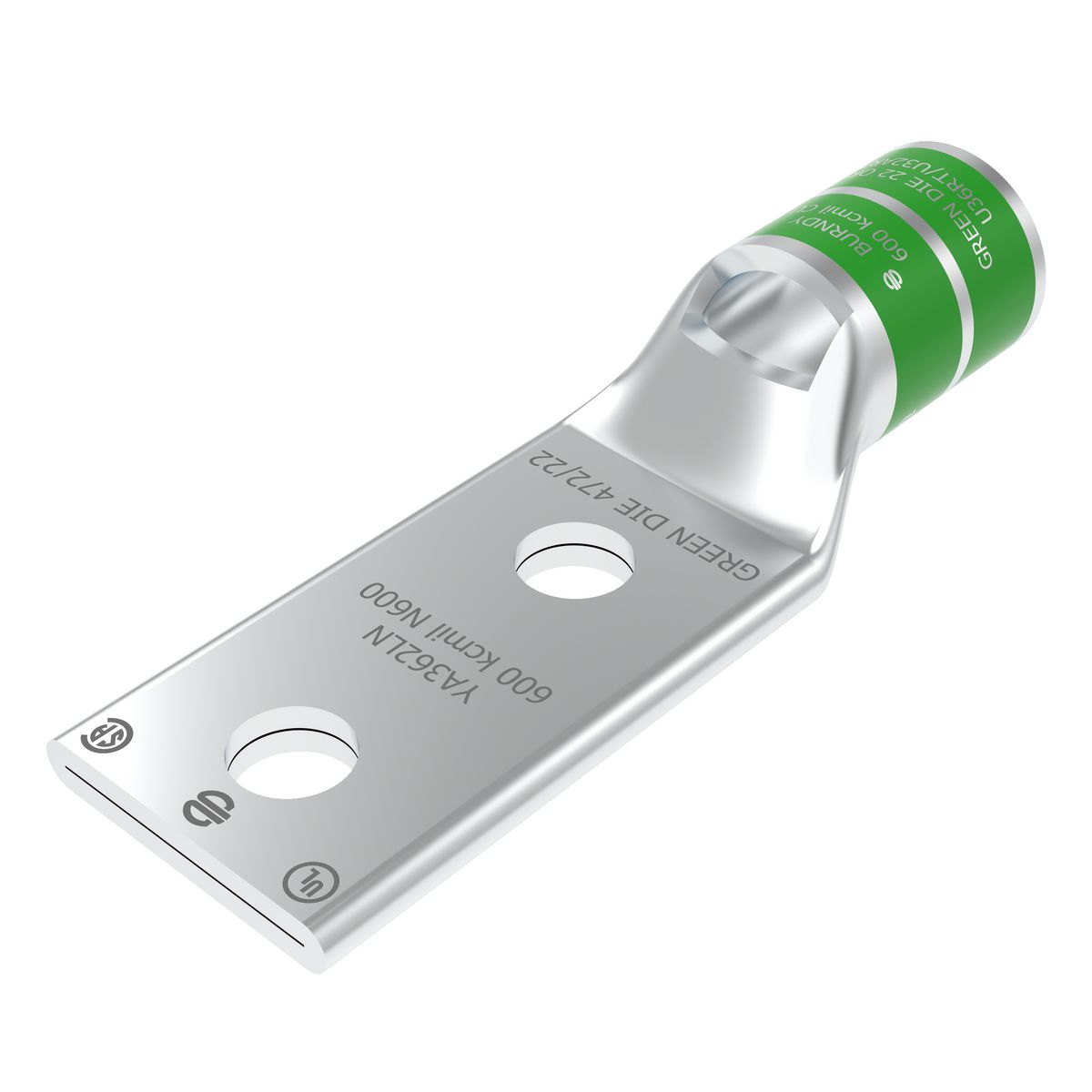

Burndy® YA362LN HYLUG™ YA-2LN 2-Hole Compression Lug With Inspection Window, 600 kcmil Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA362LN HYLUG™ YA-2LN 2-Hole Compression Lug With Inspection Window, 600 kcmil Copper Conductor, 1/2 in Stud
SKU85963
MFGR #YA362LN
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1.38 in L Barrel Type Beveled/Chamfered/Standard/Short Buy American Compliant C Catalog Number YA362LN Color Green Color Code Green Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.7500 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.19 in Height [Metric] 3.0226 cm Length 5.23 in Length [Metric] 13.2842 cm Overall Length 5.23 in Returnable Y Series YA-2LN Specifications 1-3/4 in L Wire Strip, 1-3/4 in Hole Spacing Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.74 in W x 0.27 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181052147 UPC 12 781810521472 Voltage Rating 35,000 V Width 1.74 in Width [Metric] 4.4196 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 600 kcmil Conductor Type Stranded Copper Die Code 22/472 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-3/4 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 22, Tongue Angle: Straight, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U36RT, U32ART Die, (2), Y46 Tool, U36RT, U32ART Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) For die set catalog number, and (number of crimps): hydraulic: Y35, Y39, Y750, PAT750 tool, (2) U36RT, U32ART die, Y46 tool, (2) U36RT, U32ART die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool Beveled entry Electro tin plated 600 kcmil stranded conductor size 1-3/4 in L Strip, 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.38 in L |
| Barrel Type | Beveled/Chamfered/Standard/Short |
| Buy American Compliant | C |
| Catalog Number | YA362LN |
| Color | Green |
| Color Code | Green |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.7500 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.19 in |
| Height [Metric] | 3.0226 cm |
| Length | 5.23 in |
| Length [Metric] | 13.2842 cm |
| Overall Length | 5.23 in |
| Returnable | Y |
| Series | YA-2LN |
| Specifications | 1-3/4 in L Wire Strip, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.74 in W x 0.27 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181052147 |
| UPC 12 | 781810521472 |
| Voltage Rating | 35,000 V |
| Width | 1.74 in |
| Width [Metric] | 4.4196 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 600 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 22/472 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-3/4 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 22, Tongue Angle: Straight, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U36RT, U32ART Die, (2), Y46 Tool, U36RT, U32ART Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| For die set catalog number, and (number of crimps): hydraulic: Y35, Y39, Y750, PAT750 tool, (2) U36RT, U32ART die, Y46 tool, (2) U36RT, U32ART die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool |
| Beveled entry |
| Electro tin plated |
| 600 kcmil stranded conductor size |
| 1-3/4 in L Strip, 1-3/4 in Stud Hole Spacing |
