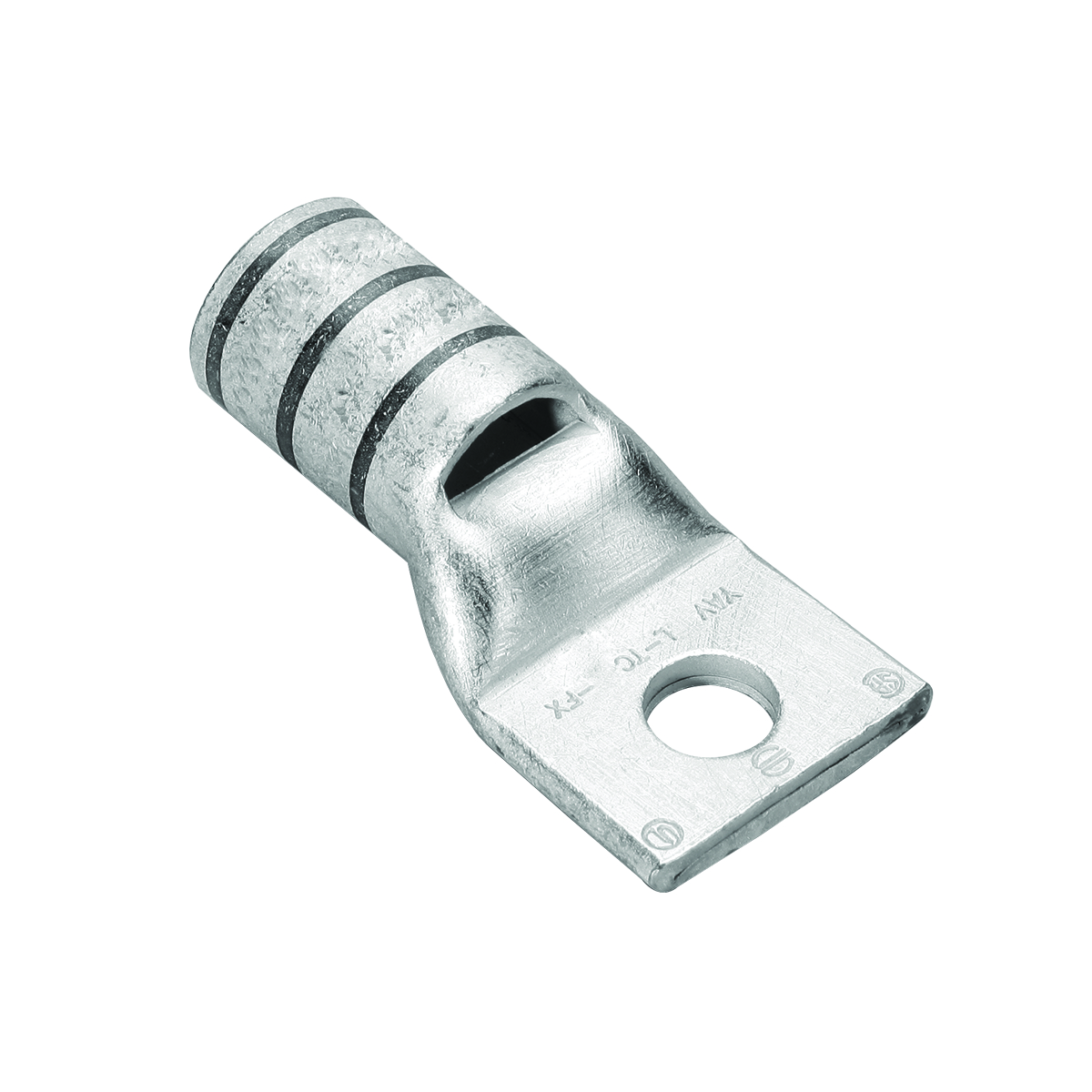

Burndy® YA34LTC12FX HYLUG™ YA-L-FX 1-Hole Compression Lug With Inspection Window, 373.7 kcmil, 1/2 in Stud, 19, Copper
Custom_Product_Images_Illustration
Burndy® YA34LTC12FX HYLUG™ YA-L-FX 1-Hole Compression Lug With Inspection Window, 373.7 kcmil, 1/2 in Stud, 19, Copper
SKU86007
MFGR #YA34LTC12FX
Your Cost: $19.92/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 1.27 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YA34LTC12FX Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.3300 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.06 in Height [Metric] 2.6924 cm Length 3.12 in Length [Metric] 7.9248 cm Overall Length 3.12 in Returnable Y Series YA-L-FX Specifications 1-5/16 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.55 in W x 0.23 in THK Tongue Type Standard Straight Type 1-Hole UNSPSC 39121405 UPC 11 78181054321 UPC 12 781810543214 Voltage Rating 600 VAC to 35 kV Width 1.55 in Width [Metric] 3.9370 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 373.7 kcmil Die Code 19 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 19, Finish: Electro-Tin Plated, Wire Strip Length: 1-5/16 IN, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (2), Y46 Tool, U32RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper For mechanical: MD6, OUR840, MD7-34R tool, (2) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (2) U32RT die, Y46 tool, (2) U32RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool Electro tin plated Conductor size of 373.7 kcmil, 925/NO 24 DLO, 350 Flex kcmil Flex conductor 1-5/16 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.27 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YA34LTC12FX |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.3300 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.06 in |
| Height [Metric] | 2.6924 cm |
| Length | 3.12 in |
| Length [Metric] | 7.9248 cm |
| Overall Length | 3.12 in |
| Returnable | Y |
| Series | YA-L-FX |
| Specifications | 1-5/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.55 in W x 0.23 in THK |
| Tongue Type | Standard Straight |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181054321 |
| UPC 12 | 781810543214 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 1.55 in |
| Width [Metric] | 3.9370 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 373.7 kcmil |
| Die Code | 19 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 19, Finish: Electro-Tin Plated, Wire Strip Length: 1-5/16 IN, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (2), Y46 Tool, U32RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper |
| For mechanical: MD6, OUR840, MD7-34R tool, (2) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (2) U32RT die, Y46 tool, (2) U32RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool |
| Electro tin plated |
| Conductor size of 373.7 kcmil, 925/NO 24 DLO, 350 Flex kcmil |
| Flex conductor |
| 1-5/16 in L Strip |
