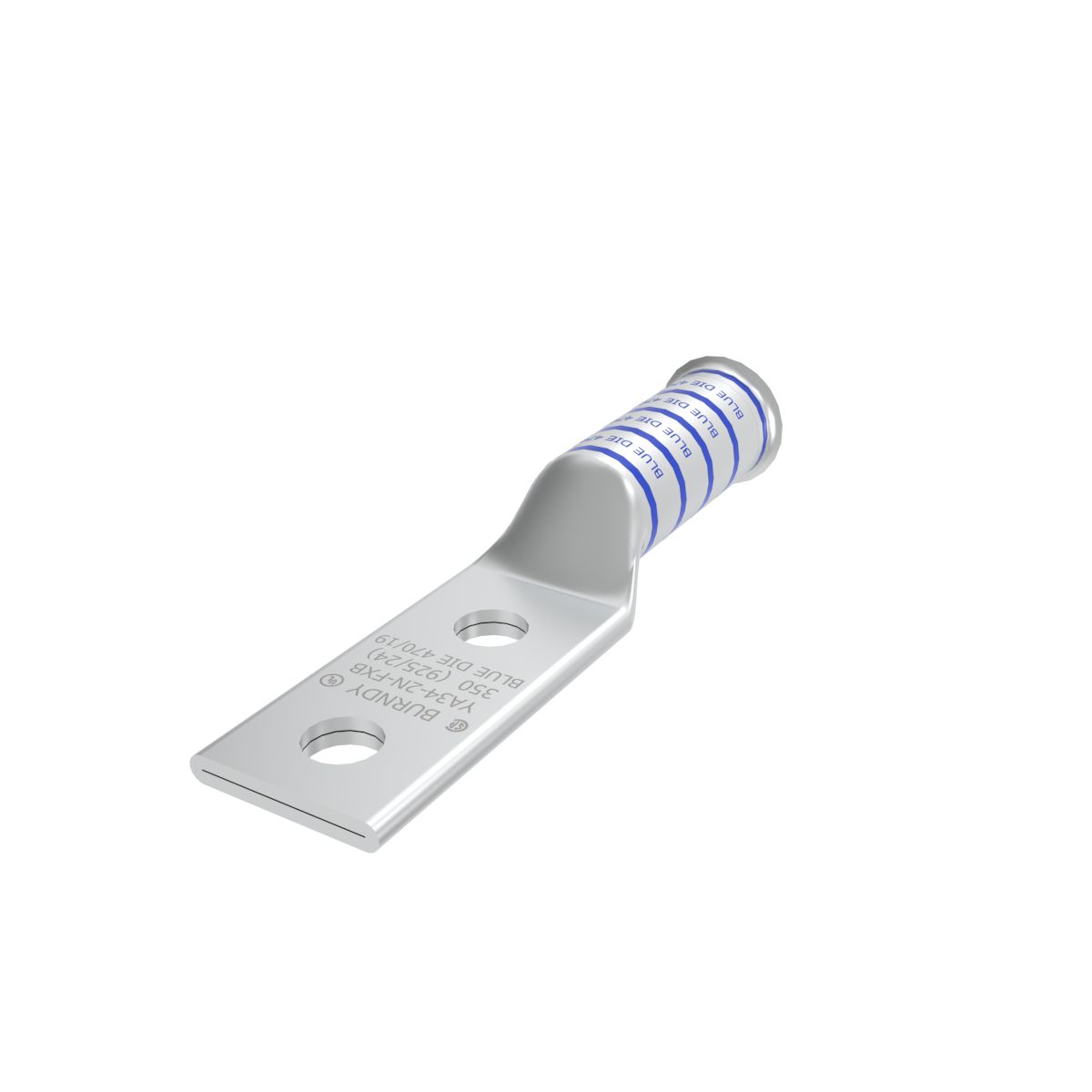

Burndy® YA342NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 350 kcmil Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA342NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 350 kcmil Copper Conductor, 1/2 in Stud
SKU236170
MFGR #YA342NFXB
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 2.48 in L Barrel Type Belled End/Long Buy American Compliant C Catalog Number YA342NFXB Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.6600 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.06 in Height [Metric] 2.6924 cm Length 6.29 in Length [Metric] 15.9766 cm Overall Length 6.29 in Returnable Y Series YA Series Specifications 2-9/16 in L Wire Strip, 1-3/4 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.55 in W x 0.23 in THK Tongue Type Standard Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181003992 UPC 12 781810039922 Voltage Rating 35,000 V Width 1.55 in Width [Metric] 3.9370 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 373.7 kcmil Conductor Type Copper Die Code 19 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Wire Strip Length: 2-9/16 IN, Tongue Angle: Straight, Die Index: 19, Finish: Electro-Tin Plated, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (4), Y46 Tool, U32RT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) For mechanical: MD6, OUR840, MD7-34R tool, (4) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (4) U32RT die, Y46 tool, (4) U32RT die with PUADP-1 adapter installation tool Electro tin plated 373.7 kcmil flex class H, I, G, M, 925/NO24 DLO conductor Without inspection window 2-9/16 in L Strip, 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 2.48 in L |
| Barrel Type | Belled End/Long |
| Buy American Compliant | C |
| Catalog Number | YA342NFXB |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.6600 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.06 in |
| Height [Metric] | 2.6924 cm |
| Length | 6.29 in |
| Length [Metric] | 15.9766 cm |
| Overall Length | 6.29 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 2-9/16 in L Wire Strip, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.55 in W x 0.23 in THK |
| Tongue Type | Standard Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181003992 |
| UPC 12 | 781810039922 |
| Voltage Rating | 35,000 V |
| Width | 1.55 in |
| Width [Metric] | 3.9370 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 373.7 kcmil |
| Conductor Type | Copper |
| Die Code | 19 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Wire Strip Length: 2-9/16 IN, Tongue Angle: Straight, Die Index: 19, Finish: Electro-Tin Plated, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (4), Y46 Tool, U32RT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| For mechanical: MD6, OUR840, MD7-34R tool, (4) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (4) U32RT die, Y46 tool, (4) U32RT die with PUADP-1 adapter installation tool |
| Electro tin plated |
| 373.7 kcmil flex class H, I, G, M, 925/NO24 DLO conductor |
| Without inspection window |
| 2-9/16 in L Strip, 1-3/4 in Stud Hole Spacing |
