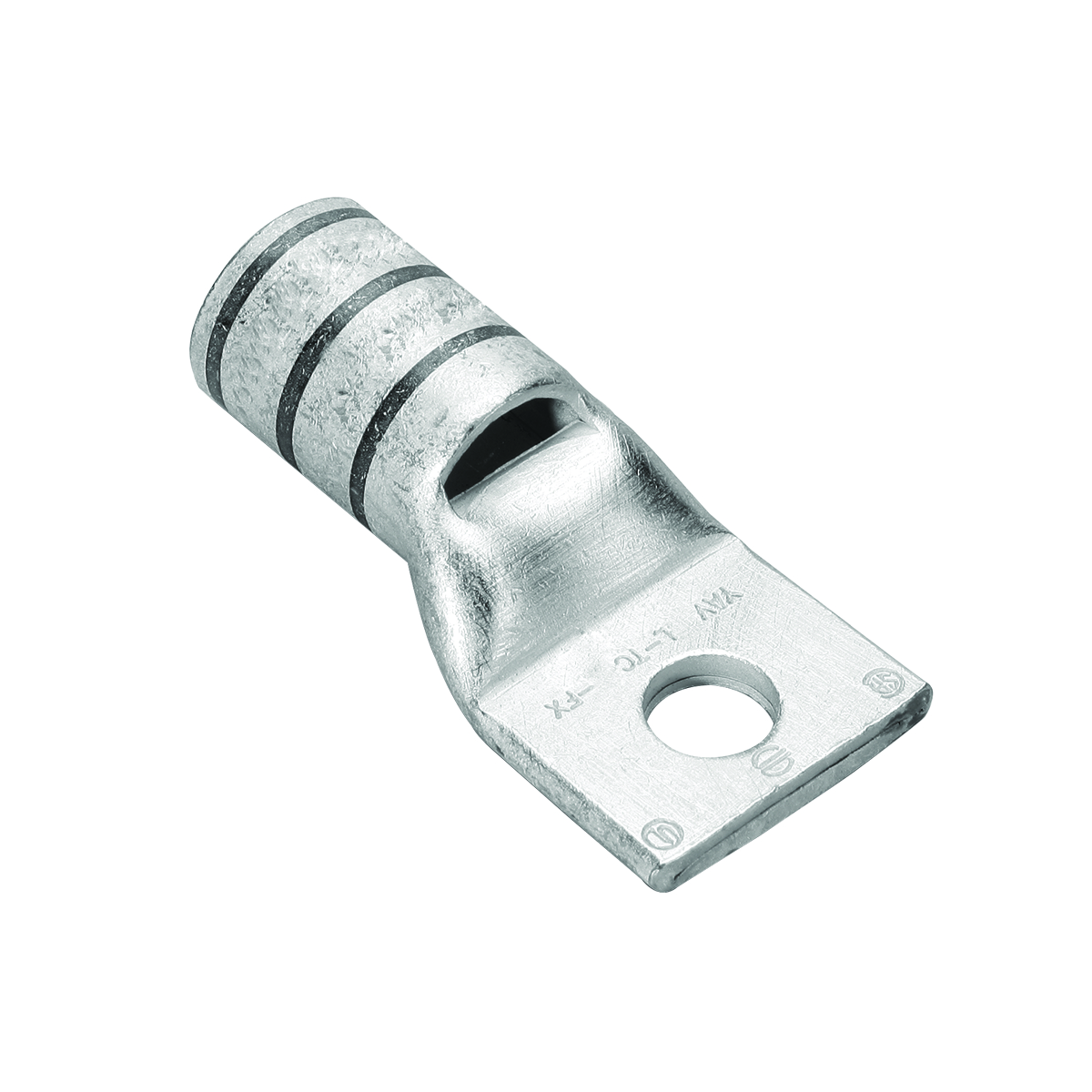

Burndy® YA32LTC12FX HYLUG™ YA-L-FX 1-Hole Compression Lug With Inspection Window, 313.1 kcmil, 1/2 in Stud, 18, Copper
Custom_Product_Images_Illustration
Burndy® YA32LTC12FX HYLUG™ YA-L-FX 1-Hole Compression Lug With Inspection Window, 313.1 kcmil, 1/2 in Stud, 18, Copper
SKU366817
MFGR #YA32LTC12FX
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 1.19 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YA32LTC12FX Color Red Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.95 in Height [Metric] 2.4130 cm Length 2.93 in Length [Metric] 7.4422 cm Overall Length 2.93 in Returnable Y Series YA-L-FX Specifications 1-1/4 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.4 in W x 0.19 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181002023 UPC 12 781810020234 Voltage Rating 35,000 V Width 1.40 in Width [Metric] 3.5560 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 313.1 kcmil Die Code 18 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 18, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 1-1/4 IN, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U31RT Die, (2), Y46 Tool, U31RT Die With PUADP-1 Adapter, (2), Color Code: Red, Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) For mechanical: MD6, OUR840, MD7-34R tool, (2) W31VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W31VT, W31RT die, Y35, Y39, Y750, PAT750 tool, (2) U31RT die, Y46 tool, (2) U31RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool Electro tin plated Conductor size of 313.1 kcmil, 775/NO 24 DLO, 300 Flex kcmil Flex conductor 1-1/4 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.19 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YA32LTC12FX |
| Color | Red |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.95 in |
| Height [Metric] | 2.4130 cm |
| Length | 2.93 in |
| Length [Metric] | 7.4422 cm |
| Overall Length | 2.93 in |
| Returnable | Y |
| Series | YA-L-FX |
| Specifications | 1-1/4 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.4 in W x 0.19 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002023 |
| UPC 12 | 781810020234 |
| Voltage Rating | 35,000 V |
| Width | 1.40 in |
| Width [Metric] | 3.5560 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 313.1 kcmil |
| Die Code | 18 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 18, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 1-1/4 IN, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U31RT Die, (2), Y46 Tool, U31RT Die With PUADP-1 Adapter, (2), Color Code: Red, Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| For mechanical: MD6, OUR840, MD7-34R tool, (2) W31VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W31VT, W31RT die, Y35, Y39, Y750, PAT750 tool, (2) U31RT die, Y46 tool, (2) U31RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool |
| Electro tin plated |
| Conductor size of 313.1 kcmil, 775/NO 24 DLO, 300 Flex kcmil |
| Flex conductor |
| 1-1/4 in L Strip |
