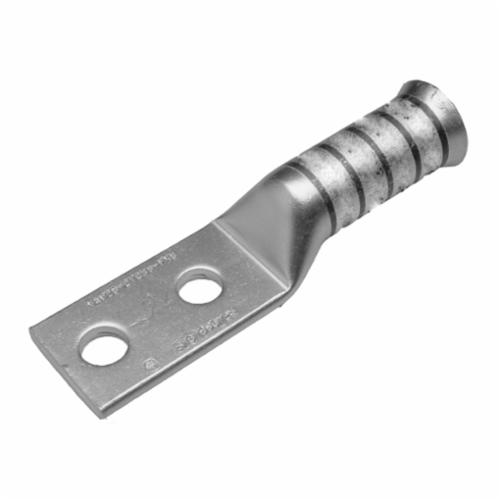

Burndy® YA322NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 300 kcmil Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA322NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 300 kcmil Copper Conductor, 1/2 in Stud
SKU366816
MFGR #YA322NFXB
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Barrel Size 2.32 in L Barrel Type Belled End/Long Catalog Number YA322NFXB Color Red Country of Origin US Gross Weight Per Pack 0.4800 lb Overall Length 6.04 in Series YA Series Specifications 2-1/4 in L Wire Strip, 1-3/4 in Hole Spacing Standard UL 486A-486B Temperature Rating 90 °C Tongue Size 1.4 in W x 0.19 in THK Tongue Type Standard Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181003991 UPC 12 781810039915 Voltage Rating 600 VAC to 35 kV Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 313.1 kcmil Conductor Type Copper Die Code 18 Material Copper Stud Size 1/2 in Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Temperature Rating: 90 DEG C, Die Index: 18, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U31RT Die, (4), Y46 Tool, U31RT Die With PUADP-1 Adapter, (4), Color Code: Red, Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) For mechanical: MD6, OUR840, MD7-34R tool, (4) W31VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W31VT, W31RT die, Y35, Y39, Y750, PAT750 tool, (4) U31RT die, Y46 tool, (4) U31RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool Electro tin plated 313.1 kcmil flex class H, I, G, M, 775/NO24 DLO conductor Without inspection window 2-1/4 in L Strip, 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 2.32 in L |
| Barrel Type | Belled End/Long |
| Catalog Number | YA322NFXB |
| Color | Red |
| Country of Origin | US |
| Gross Weight Per Pack | 0.4800 lb |
| Overall Length | 6.04 in |
| Series | YA Series |
| Specifications | 2-1/4 in L Wire Strip, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Temperature Rating | 90 °C |
| Tongue Size | 1.4 in W x 0.19 in THK |
| Tongue Type | Standard Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181003991 |
| UPC 12 | 781810039915 |
| Voltage Rating | 600 VAC to 35 kV |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 313.1 kcmil |
| Conductor Type | Copper |
| Die Code | 18 |
| Material | Copper |
| Stud Size | 1/2 in |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Temperature Rating: 90 DEG C, Die Index: 18, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U31RT Die, (4), Y46 Tool, U31RT Die With PUADP-1 Adapter, (4), Color Code: Red, Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| For mechanical: MD6, OUR840, MD7-34R tool, (4) W31VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W31VT, W31RT die, Y35, Y39, Y750, PAT750 tool, (4) U31RT die, Y46 tool, (4) U31RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool |
| Electro tin plated |
| 313.1 kcmil flex class H, I, G, M, 775/NO24 DLO conductor |
| Without inspection window |
| 2-1/4 in L Strip, 1-3/4 in Stud Hole Spacing |
