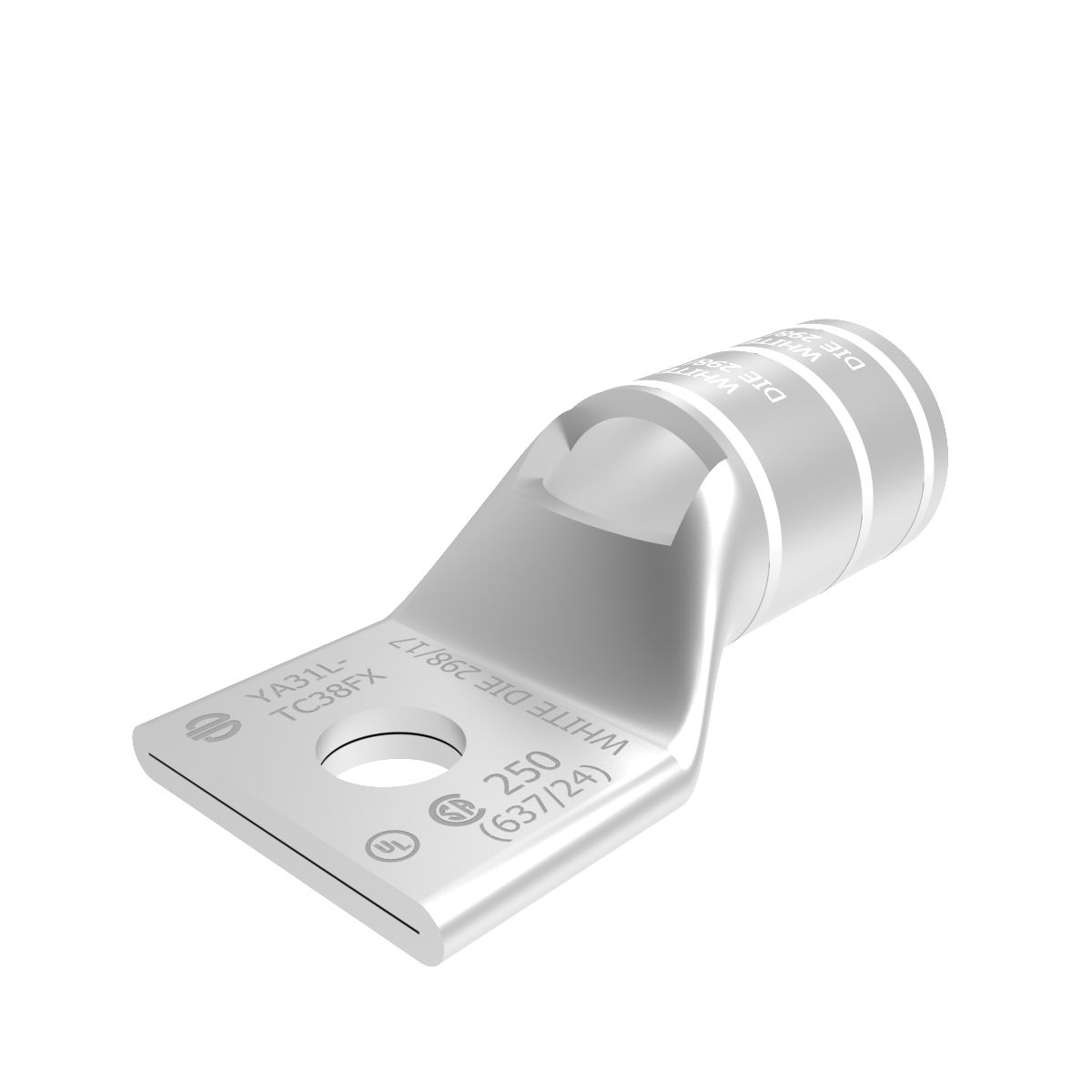

Burndy® YA31LTC38FX HYLUG™ YA-L-FX 1-Hole Compression Lug With Inspection Window, 250 kcmil, 3/8 in Stud, 17, Copper
Custom_Product_Images_Illustration
Burndy® YA31LTC38FX HYLUG™ YA-L-FX 1-Hole Compression Lug With Inspection Window, 250 kcmil, 3/8 in Stud, 17, Copper
SKU501275
MFGR #YA31LTC38FX
Your Cost: $21.18/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 1.06 in L Barrel Type Chamfered/Skived/Standard Buy American Compliant C Catalog Number YA31LTC38FX Color White Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1700 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.88 in Height [Metric] 2.2352 cm Length 2.50 in Length [Metric] 6.3500 cm Overall Length 2-1/2 in Returnable Y Series YA-L-FX Specifications 1-1/8 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.29 in W x 0.18 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181002025 UPC 12 781810020258 Voltage Rating 35,000 V Width 1.29 in Width [Metric] 3.2766 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 250 kcmil Die Code 17 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-1/8 IN, Die Index: 17, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT Die, (2), Y46 Tool, U30RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper For mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT die, Y46 tool, (2) U30RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool Used for W30VT, W30RT W-dies and U30RT U-die Electro tin plated Conductor size of 250 Flex kcmil, 637/24 Class I, K, M Flex conductor 1-1/8 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.06 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA31LTC38FX |
| Color | White |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1700 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.88 in |
| Height [Metric] | 2.2352 cm |
| Length | 2.50 in |
| Length [Metric] | 6.3500 cm |
| Overall Length | 2-1/2 in |
| Returnable | Y |
| Series | YA-L-FX |
| Specifications | 1-1/8 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.29 in W x 0.18 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002025 |
| UPC 12 | 781810020258 |
| Voltage Rating | 35,000 V |
| Width | 1.29 in |
| Width [Metric] | 3.2766 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 250 kcmil |
| Die Code | 17 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-1/8 IN, Die Index: 17, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT Die, (2), Y46 Tool, U30RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper |
| For mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT die, Y46 tool, (2) U30RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool |
| Used for W30VT, W30RT W-dies and U30RT U-die |
| Electro tin plated |
| Conductor size of 250 Flex kcmil, 637/24 Class I, K, M |
| Flex conductor |
| 1-1/8 in L Strip |
