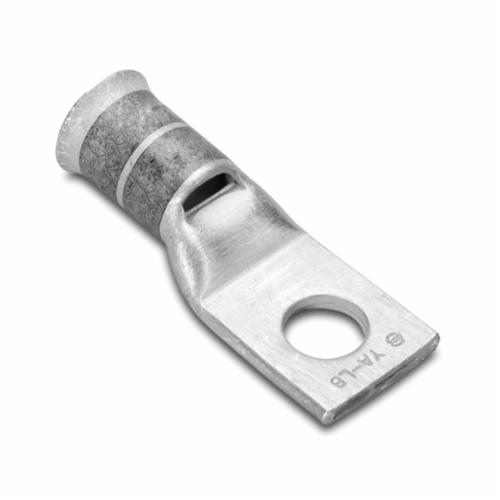

Burndy® YA31LB HYLUG™ YA-LB 1-Hole Compression Lug With Inspection Window, 250 kcmil Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA31LB HYLUG™ YA-LB 1-Hole Compression Lug With Inspection Window, 250 kcmil Copper Conductor, 1/2 in Stud
SKU85940
MFGR #YA31LB
Your Cost: $37.80/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Barrel Size 1.1 in L Barrel Type Belled End/Standard Catalog Number YA31LB Color Red Country of Origin US Gross Weight Per Pack 0.1900 lb Overall Length 2.93 in Series YA-LB Specifications 1-3/16 in L Wire Strip Standards UL Listed, CSA Certified and RoHS Compliant Temperature Rating 90 °C Tongue Size 1.29 in W x 0.18 in THK Tongue Type Standard Straight Type 1-Hole UNSPSC 39121405 UPC 11 78181050496 UPC 12 781810504963 Voltage Rating 600 VAC to 35 kV Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 250 kcmil Conductor Type Copper Die Code 1025 Material Copper Stud Size 1/2 in Features: UL Listed 90 DEG C, 600 V - 35 KV, Temperature Rating: 90 DEG C, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U31D-1 Die Nest, Y34PR2 Die Indentor, Finish: Electro-Tin Plated, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Wire Strip Length: 1-3/16 IN, Die Index: 1025 For welding cable, class M (no 34 STR), locomotive cable, battery cable, class K (no 30 STR), dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool installation tool Conductor size of flexible copper 250, 262.2 kcmil, welding cable class M (no 34 STR) 262.2 kcmil (6384 Strands), locomotive 262.2 kcmil (650/24 strands) Conductor size of battery cable, class K (no 30 STR) 262.2 kcmil (2499 Strands), class I (no 24 STR) 262.2 kcmil (637 Strands) Copper/Flex conductor 1-3/16 in L Strip
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 1.1 in L |
| Barrel Type | Belled End/Standard |
| Catalog Number | YA31LB |
| Color | Red |
| Country of Origin | US |
| Gross Weight Per Pack | 0.1900 lb |
| Overall Length | 2.93 in |
| Series | YA-LB |
| Specifications | 1-3/16 in L Wire Strip |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Temperature Rating | 90 °C |
| Tongue Size | 1.29 in W x 0.18 in THK |
| Tongue Type | Standard Straight |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181050496 |
| UPC 12 | 781810504963 |
| Voltage Rating | 600 VAC to 35 kV |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 250 kcmil |
| Conductor Type | Copper |
| Die Code | 1025 |
| Material | Copper |
| Stud Size | 1/2 in |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, Temperature Rating: 90 DEG C, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U31D-1 Die Nest, Y34PR2 Die Indentor, Finish: Electro-Tin Plated, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Wire Strip Length: 1-3/16 IN, Die Index: 1025 |
| For welding cable, class M (no 34 STR), locomotive cable, battery cable, class K (no 30 STR), dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool installation tool |
| Conductor size of flexible copper 250, 262.2 kcmil, welding cable class M (no 34 STR) 262.2 kcmil (6384 Strands), locomotive 262.2 kcmil (650/24 strands) |
| Conductor size of battery cable, class K (no 30 STR) 262.2 kcmil (2499 Strands), class I (no 24 STR) 262.2 kcmil (637 Strands) |
| Copper/Flex conductor |
| 1-3/16 in L Strip |
