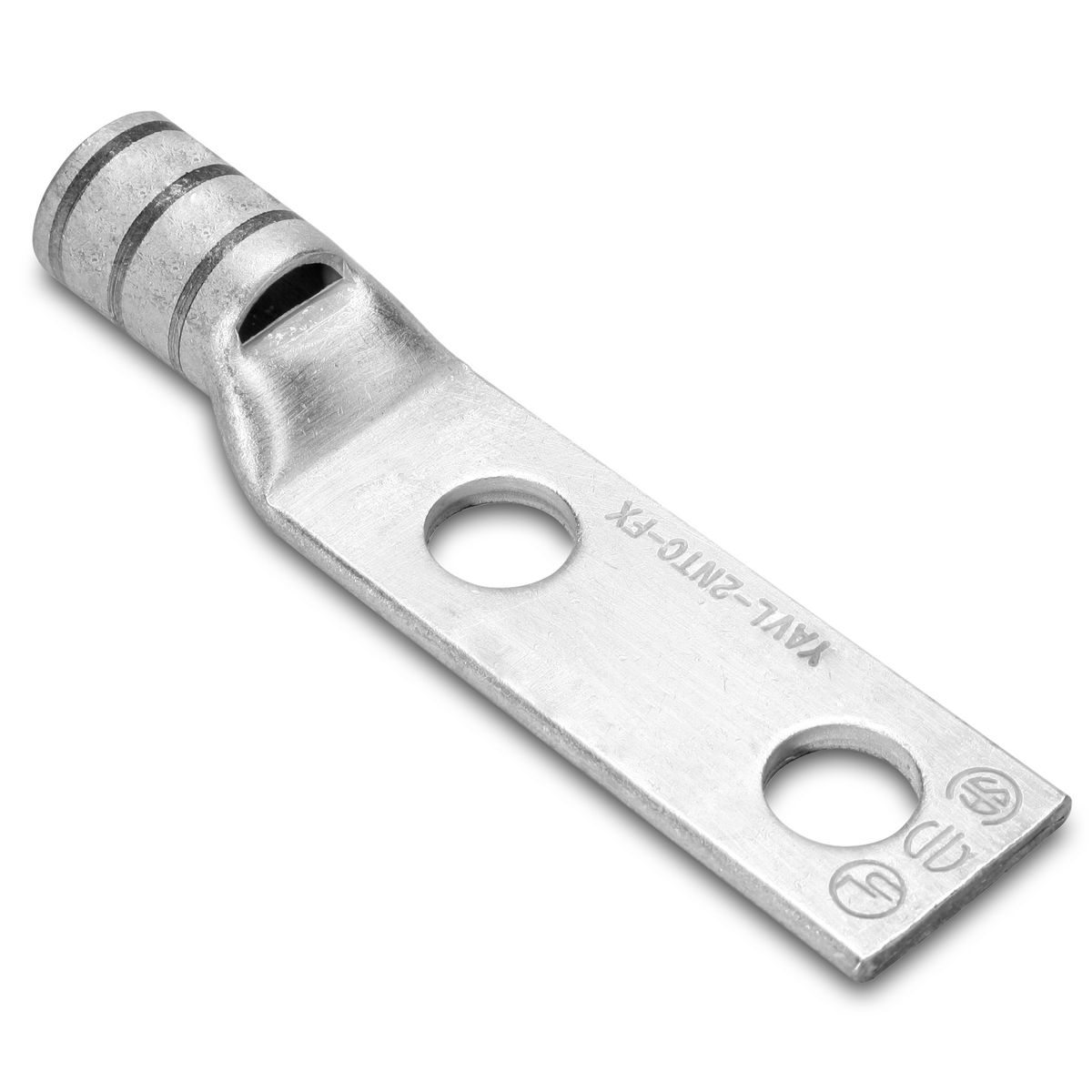

Burndy® YA31L2NTCFX HYLUG™ YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 250 kcmil Class I Flex Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA31L2NTCFX HYLUG™ YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 250 kcmil Class I Flex Conductor, 1/2 in Stud
SKU508415
MFGR #YA31L2NTCFX
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.88 in OD x 1.06 in L Barrel Type Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YA31L2NTCFX Color White Country of Origin US EU RoHS Indicator Y Finish Tinned Gross Weight Per Pack 0.3100 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.88 in Height [Metric] 2.2352 cm Length 4.70 in Length [Metric] 11.9380 cm Overall Length 4.7 in Returnable Y Series YA-L-2TC-FX Specifications 1-1/8 in L Wire Strip, 1-3/4 in Stud Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.29 in W x 0.18 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121408 UPC 11 78181003391 UPC 12 781810033913 Voltage Rating 35,000 V Width 1.29 in Width [Metric] 3.2766 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 250 kcmil Die Code 17/298 Material Copper Stud Size 1/2 in Wire Termination UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.88 in OD x 1.06 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA31L2NTCFX |
| Color | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tinned |
| Gross Weight Per Pack | 0.3100 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.88 in |
| Height [Metric] | 2.2352 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Overall Length | 4.7 in |
| Returnable | Y |
| Series | YA-L-2TC-FX |
| Specifications | 1-1/8 in L Wire Strip, 1-3/4 in Stud Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.29 in W x 0.18 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121408 |
| UPC 11 | 78181003391 |
| UPC 12 | 781810033913 |
| Voltage Rating | 35,000 V |
| Width | 1.29 in |
| Width [Metric] | 3.2766 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 250 kcmil |
| Die Code | 17/298 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight |
| Standard, short barrel |
