BURNDY®

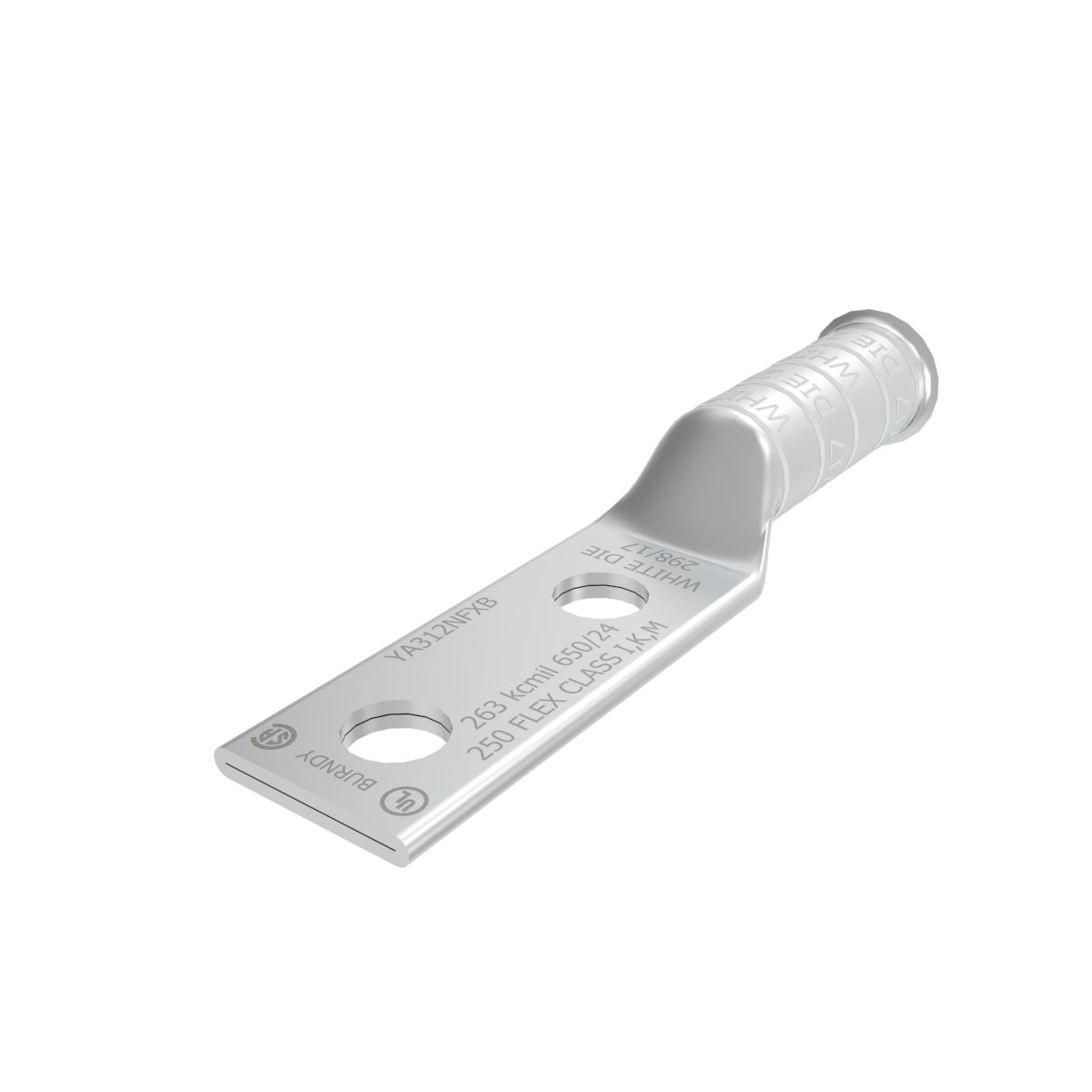

Burndy® YA312NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 250 kcmil Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA312NFXB HYLUG™ YA Series 2-Hole Compression Lug Without Inspection Window, 250 kcmil Copper Conductor, 1/2 in Stud
SKU366814
MFGR #YA312NFXB
Your Cost: $21.38/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 2.18 in L Barrel Type Belled End/Long Buy American Compliant C Catalog Number YA312NFXB Color White Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.3900 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.88 in Height [Metric] 2.2352 cm Length 5.85 in Length [Metric] 14.8590 cm Overall Length 5.85 in Returnable Y Series YA Series Specifications 2-1/4 in L Wire Strip, 1-3/4 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.29 in W x 0.18 in THK Tongue Type Standard Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181003990 UPC 12 781810039908 Voltage Rating 35,000 V Width 1.29 in Width [Metric] 3.2766 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 250 kcmil Conductor Type Copper Die Code 17 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Die Index: 17, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT Die, (4), Y46 Tool, U30RT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible Copper For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (4) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (4) U30RT die, Y46 tool, (4) U30RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool Electro tin plated 250 kcmil flex Class H, I, G, M, 263 kcmil, 650/NO24 DLO conductor Without inspection window 2-1/4 in L Strip, 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 2.18 in L |
| Barrel Type | Belled End/Long |
| Buy American Compliant | C |
| Catalog Number | YA312NFXB |
| Color | White |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.3900 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.88 in |
| Height [Metric] | 2.2352 cm |
| Length | 5.85 in |
| Length [Metric] | 14.8590 cm |
| Overall Length | 5.85 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 2-1/4 in L Wire Strip, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.29 in W x 0.18 in THK |
| Tongue Type | Standard Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181003990 |
| UPC 12 | 781810039908 |
| Voltage Rating | 35,000 V |
| Width | 1.29 in |
| Width [Metric] | 3.2766 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 250 kcmil |
| Conductor Type | Copper |
| Die Code | 17 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Die Index: 17, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT Die, (4), Y46 Tool, U30RT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible Copper |
| For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (4) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (4) U30RT die, Y46 tool, (4) U30RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool |
| Electro tin plated |
| 250 kcmil flex Class H, I, G, M, 263 kcmil, 650/NO24 DLO conductor |
| Without inspection window |
| 2-1/4 in L Strip, 1-3/4 in Stud Hole Spacing |
