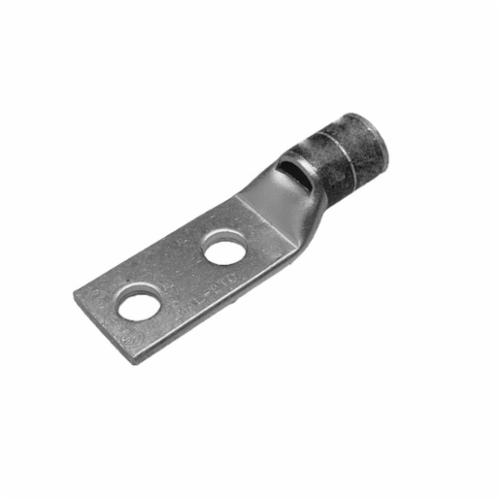

Burndy® YA30L2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 300 kcmil Copper Conductor, 3/8 in Stud
Custom_Product_Images_Illustration
Burndy® YA30L2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 300 kcmil Copper Conductor, 3/8 in Stud
SKU914617
MFGR #YA30L2TC38
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Barrel Size 1.03 in L Barrel Type Chamfered/Standard Catalog Number YA30L2TC38 Color White Country of Origin US Gross Weight Per Pack 0.2100 lb Overall Length 3.45 in Series YA-L-2TC Specifications 1-1/8 in L Wire Strip, 1 in Hole Spacing Standard UL 486A-486B Temperature Rating 90 °C Tongue Size 1.2 in W x 0.16 in THK Tongue Type Standard Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181001832 UPC 12 781810018323 Voltage Rating 600 VAC to 35 kV Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 300 kcmil Conductor Type Stranded Copper Die Code 17 Material Copper Stud Size 3/8 in Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 17, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1-1/8 IN, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (2), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT, U28ART die, Y46 tool, (2) U30RT, U28ART die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool Conductor size of 150 sq-mm for class 2 conductor 300 kcmil stranded conductor size 0.39 in Bolt, 1-1/8 in L Strip
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 1.03 in L |
| Barrel Type | Chamfered/Standard |
| Catalog Number | YA30L2TC38 |
| Color | White |
| Country of Origin | US |
| Gross Weight Per Pack | 0.2100 lb |
| Overall Length | 3.45 in |
| Series | YA-L-2TC |
| Specifications | 1-1/8 in L Wire Strip, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Temperature Rating | 90 °C |
| Tongue Size | 1.2 in W x 0.16 in THK |
| Tongue Type | Standard Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181001832 |
| UPC 12 | 781810018323 |
| Voltage Rating | 600 VAC to 35 kV |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 300 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 17 |
| Material | Copper |
| Stud Size | 3/8 in |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 17, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1-1/8 IN, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (2), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT, U28ART die, Y46 tool, (2) U30RT, U28ART die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool |
| Conductor size of 150 sq-mm for class 2 conductor |
| 300 kcmil stranded conductor size |
| 0.39 in Bolt, 1-1/8 in L Strip |
