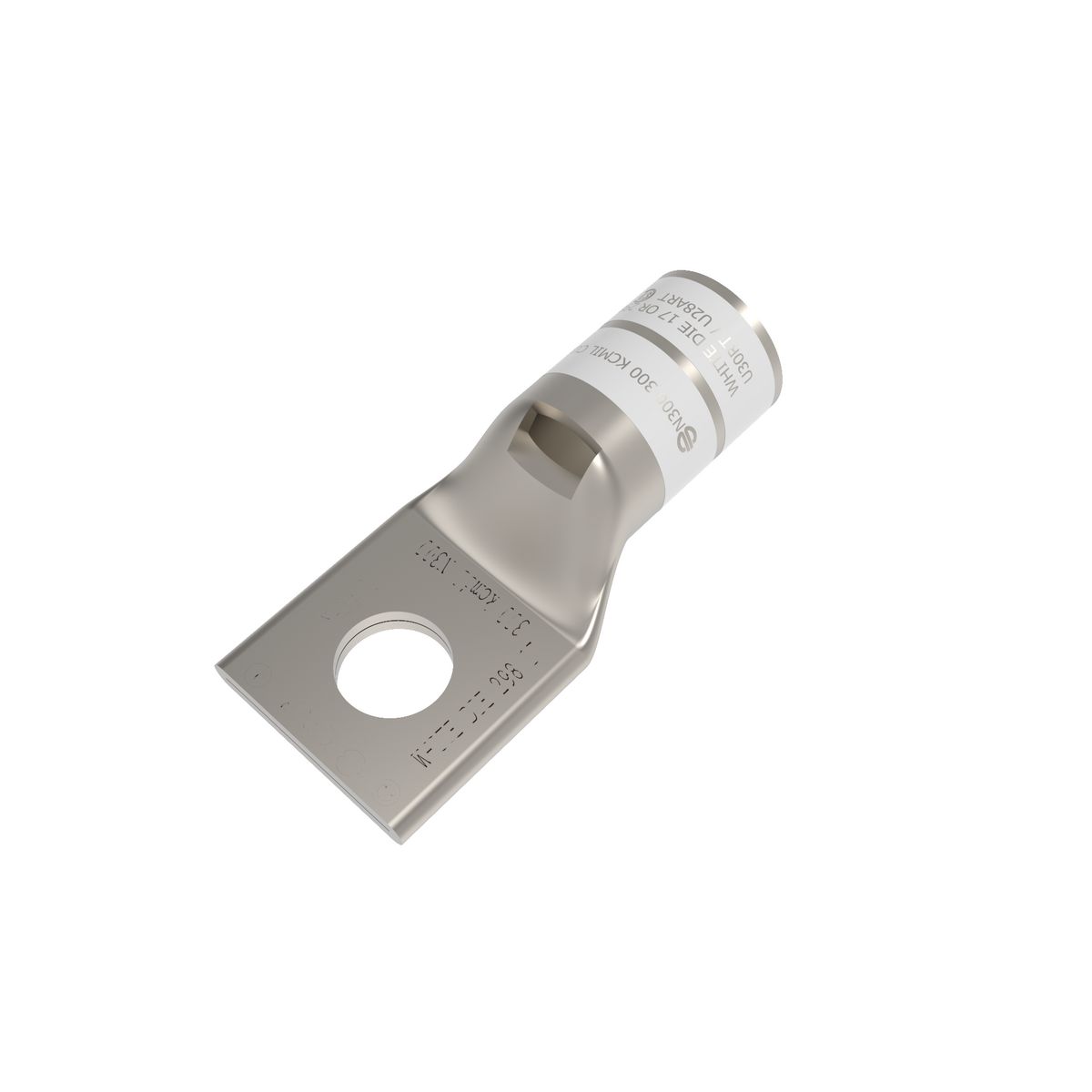

Burndy® YA30L24 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 300 kcmil Copper Conductor, 3/8 in Stud, 17, Copper
Custom_Product_Images_Illustration
Burndy® YA30L24 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 300 kcmil Copper Conductor, 3/8 in Stud, 17, Copper
SKU85938
MFGR #YA30L24
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1.03 in L Barrel Type Chamfered/Skived/Standard Buy American Compliant C Catalog Number YA30L24 Color White Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.81 in Height [Metric] 2.0574 cm Length 2.44 in Length [Metric] 6.1976 cm Overall Length 2.44 in Returnable Y Series YA-L Specifications 1-1/8 in L Wire Strip Standard UL 486A-486B Standards UL Listed, CSA Certified and RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.2 in W x 0.16 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181050489 UPC 12 781810504895 Voltage Rating 35,000 V Width 1.20 in Width [Metric] 3.0480 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 300 kcmil Conductor Type Stranded Copper Die Code 17 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/8 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: 17, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (2), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (2), Color Code: White, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) For die set catalog number, and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT, U28ART die, Y46 tool, (2) U30RT, U28ART die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool Conductor size of 150 sq-mm for class 2 conductor 300 kcmil stranded conductor size 0.39 in Bolt, 1-1/8 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.03 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA30L24 |
| Color | White |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.81 in |
| Height [Metric] | 2.0574 cm |
| Length | 2.44 in |
| Length [Metric] | 6.1976 cm |
| Overall Length | 2.44 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 1-1/8 in L Wire Strip |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified and RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.2 in W x 0.16 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181050489 |
| UPC 12 | 781810504895 |
| Voltage Rating | 35,000 V |
| Width | 1.20 in |
| Width [Metric] | 3.0480 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 300 kcmil |
| Conductor Type | Stranded Copper |
| Die Code | 17 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/8 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: 17, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (2), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (2), Color Code: White, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| For die set catalog number, and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT, U28ART die, Y46 tool, (2) U30RT, U28ART die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool |
| Conductor size of 150 sq-mm for class 2 conductor |
| 300 kcmil stranded conductor size |
| 0.39 in Bolt, 1-1/8 in L Strip |
