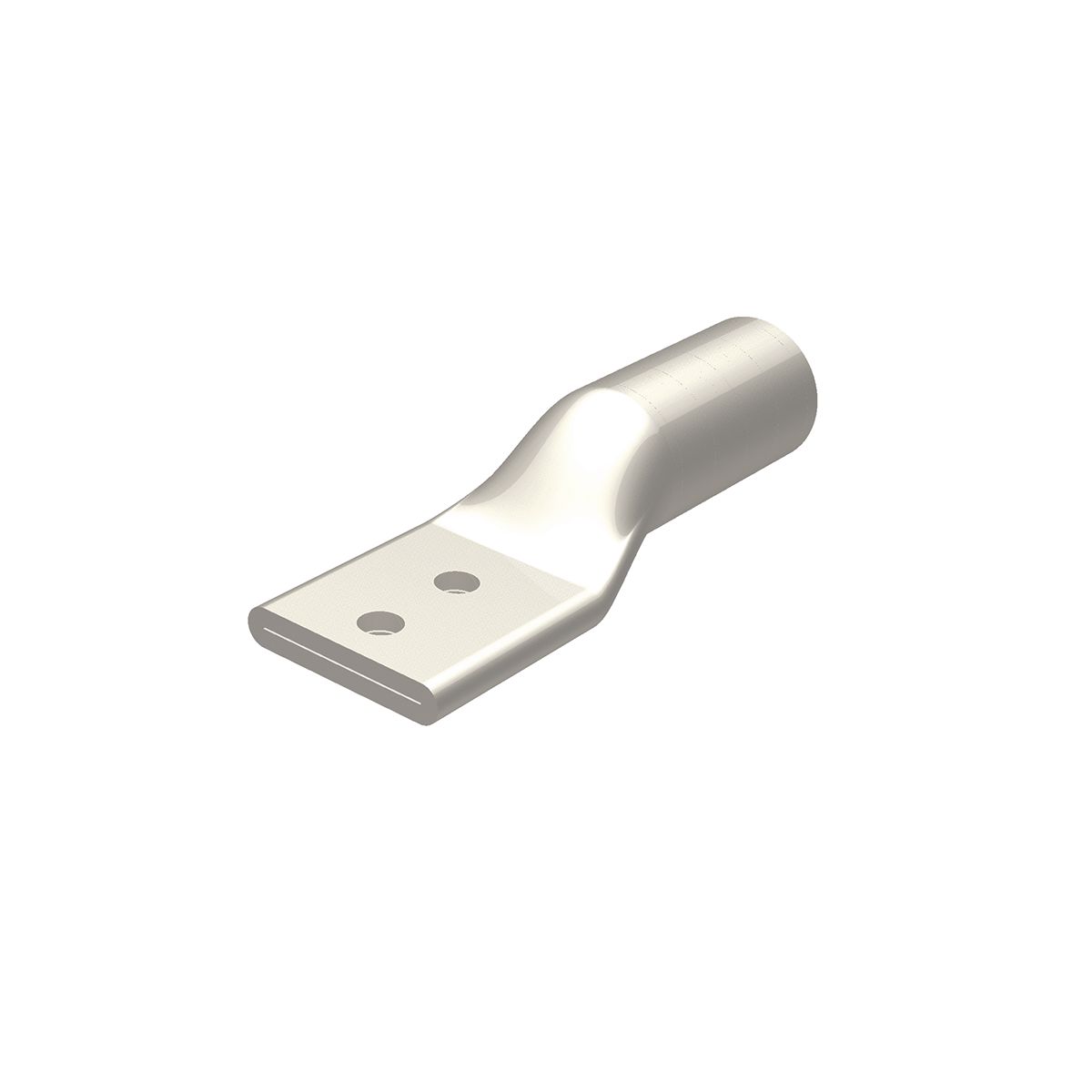

Burndy® YA30A3 HYLUG™ YA-A 2-Hole Non-Insulated Compression Lug Without Inspection Window, 300 kcmil Aluminum/Copper Conductor
Custom_Product_Images_Illustration
Burndy® YA30A3 HYLUG™ YA-A 2-Hole Non-Insulated Compression Lug Without Inspection Window, 300 kcmil Aluminum/Copper Conductor
SKU204755
MFGR #YA30A3
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
Application Wire Termination ARRA Compliant C Barrel Size 1.53 in L Barrel Type Beveled Buy American Compliant C Catalog Number YA30A3 Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.2600 lb Gross Weight per Pack Metric 0.12 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.01 in Height [Metric] 2.5654 cm Length 5.64 in Length [Metric] 14.3256 cm Overall Length 5.64 in Returnable Y Series YA-A Specifications 1-3/4 in L Wire Strip Standard UL 486A-486B Sub Brand Terminals, HYLUG Temperature Rating 90 °C Tongue Size 3.11 in L x 1.38 in W x 0.36 in THK Tongue Type Standard Straight Type YA-A UNSPSC 39121405 UPC 11 78181075540 UPC 12 781810755402 Voltage Rating 35,000 V Width 1.38 in Width [Metric] 3.5052 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 300 kcmil Conductor Type Aluminum/Copper Die Code 470 Material Aluminum Stud Size 1/2 in Wire Termination UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness Electro tin plated, provides durable long lasting corrosion resistance Internally beveled barrel, provides easy cable insertion Provides a quality electrical dual connection Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps Type YA-A aluminum tin plated compression HYLUG terminals are dual rated and designed for use on both aluminum and copper conductors from NO 12 sol Pads inhibit connector rotation and increase area contact Designed for heavy duty applications to 35KV YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps The aluminum HYLUG terminals are designed for a permanent trouble-free electrical termination Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection Color coded end caps inserted in barrel end Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads Used for MY29-3, Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers Straight tongue angle 300 kcmil stranded conductor 1.75 in hole center to center distance, 0.63 in hole center to end, 0.73 in hole center to barrel Without inspection window
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.53 in L |
| Barrel Type | Beveled |
| Buy American Compliant | C |
| Catalog Number | YA30A3 |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2600 lb |
| Gross Weight per Pack Metric | 0.12 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.01 in |
| Height [Metric] | 2.5654 cm |
| Length | 5.64 in |
| Length [Metric] | 14.3256 cm |
| Overall Length | 5.64 in |
| Returnable | Y |
| Series | YA-A |
| Specifications | 1-3/4 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | Terminals, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 3.11 in L x 1.38 in W x 0.36 in THK |
| Tongue Type | Standard Straight |
| Type | YA-A |
| UNSPSC | 39121405 |
| UPC 11 | 78181075540 |
| UPC 12 | 781810755402 |
| Voltage Rating | 35,000 V |
| Width | 1.38 in |
| Width [Metric] | 3.5052 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 300 kcmil |
| Conductor Type | Aluminum/Copper |
| Die Code | 470 |
| Material | Aluminum |
| Stud Size | 1/2 in |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight |
| Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
| Electro tin plated, provides durable long lasting corrosion resistance |
| Internally beveled barrel, provides easy cable insertion |
| Provides a quality electrical dual connection |
| Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
| Type YA-A aluminum tin plated compression HYLUG terminals are dual rated and designed for use on both aluminum and copper conductors from NO 12 sol |
| Pads inhibit connector rotation and increase area contact |
| Designed for heavy duty applications to 35KV |
| YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps |
| The aluminum HYLUG terminals are designed for a permanent trouble-free electrical termination |
| Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
| Color coded end caps inserted in barrel end |
| Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
| These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads |
| Used for MY29-3, Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers |
| Straight tongue angle |
| 300 kcmil stranded conductor |
| 1.75 in hole center to center distance, 0.63 in hole center to end, 0.73 in hole center to barrel |
| Without inspection window |
