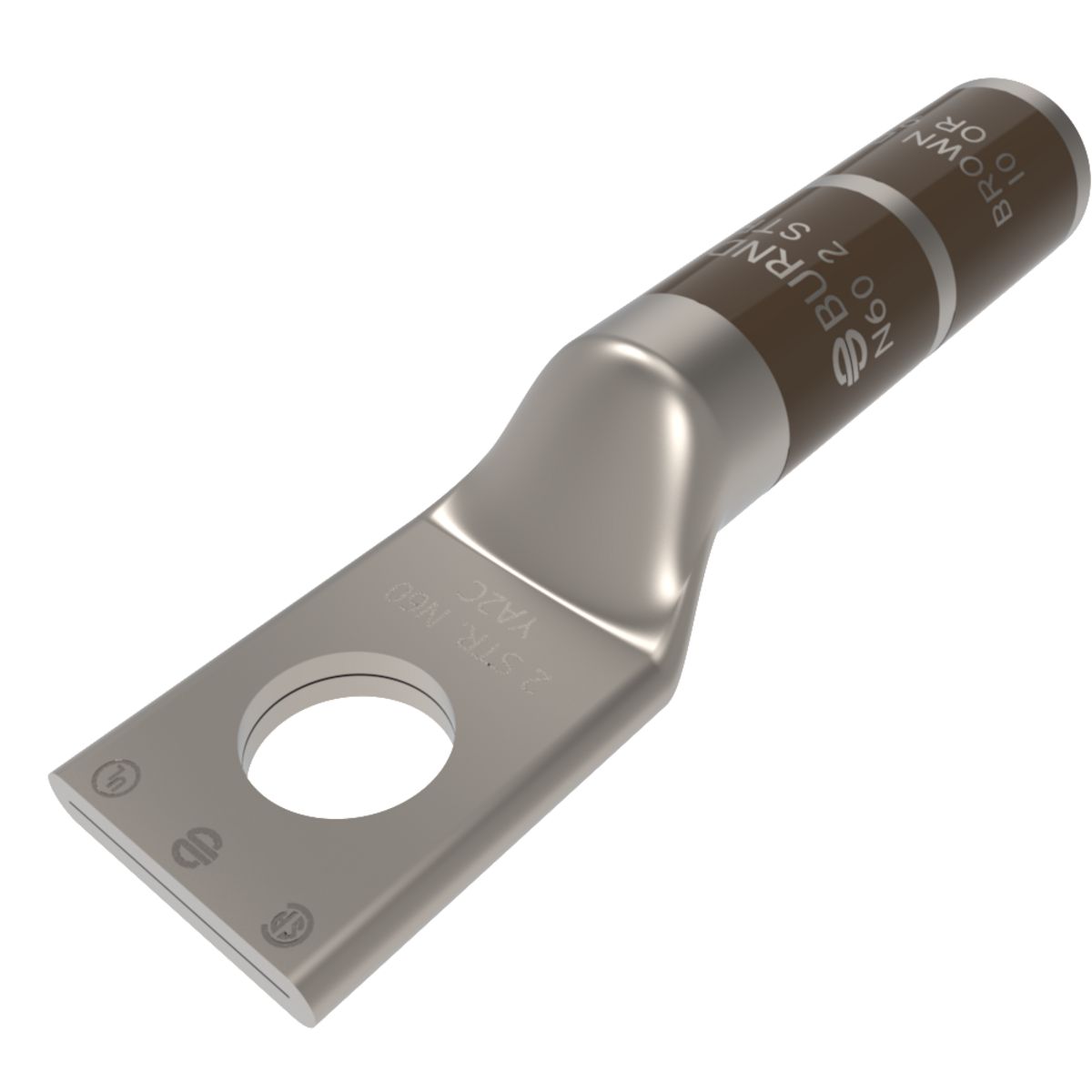

Burndy® YA2CN HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 2 AWG Stranded Copper Conductor, 1/2 in Stud
Lug Compression Connectors
471233
MFG #: YA2CN
BURNDY®
7.87000
/ ea
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
- Brochure URL - 10969_3U8796W1Q4N0RBKL.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c90b0cccb2032064196acdd3771e8b4f63c93e9683153d44557c3d6463f3e0fa.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Install Instructions 1 URL - 10969_M6IT3GNVDBYQ1JEX.pdf(Install Instructions 1 URL)
- Line Drawing URL - 10969_R6ND9H0ZQVCKF4SO.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_GIZ95VXWAYLNPS2F.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd079849.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1-5/16 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Die Index: 10, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4) |
