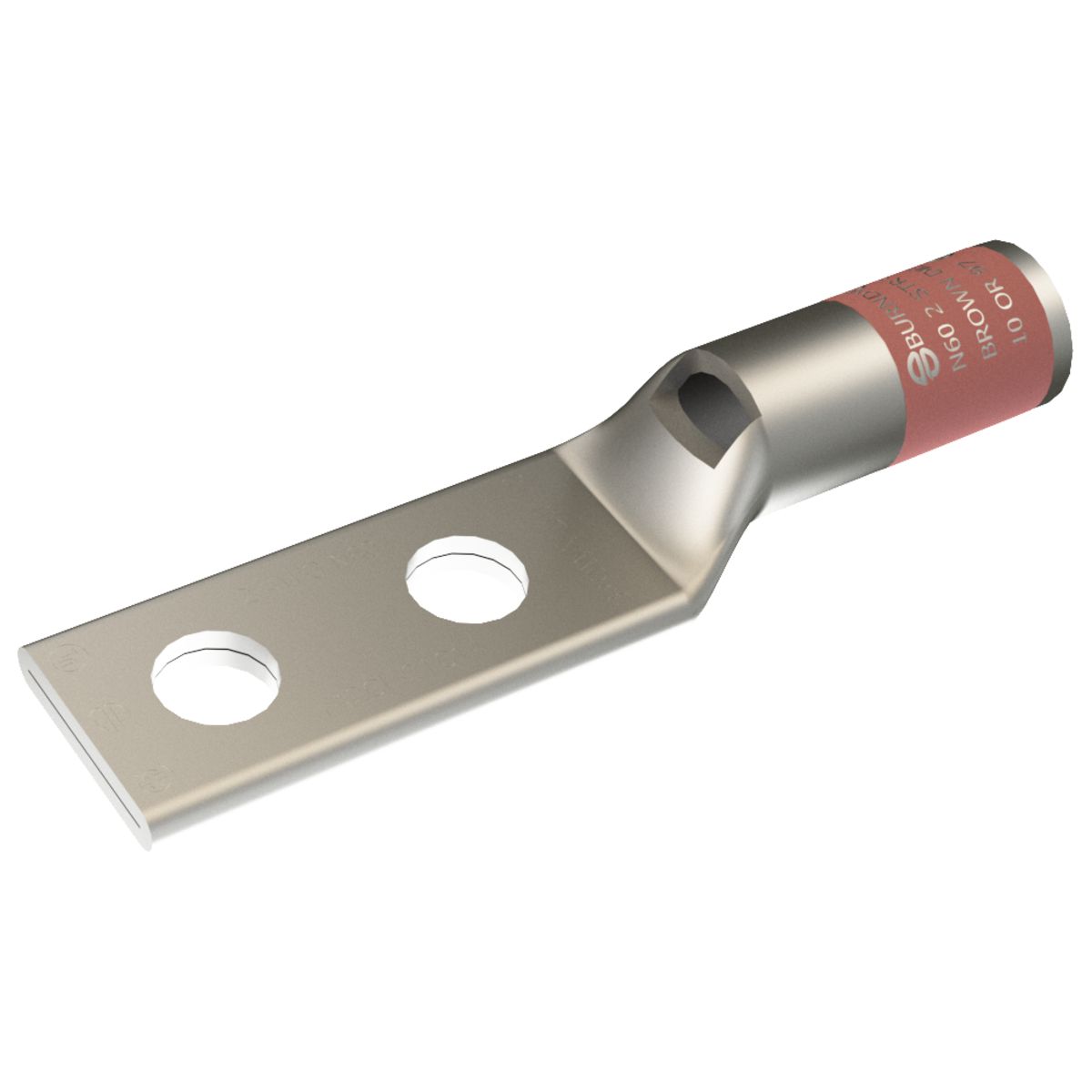

Burndy® YA2CL2TC14E2 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, 1/4 in Stud
Custom_Product_Images_Illustration
Burndy® YA2CL2TC14E2 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, 1/4 in Stud
SKU412948
MFGR #YA2CL2TC14E2
Your Cost: $7.68/ea
List: BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.42 in OD x 0.88 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YA2CL2TC14E2 Color Brown Color Code Brown Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.42 in Height [Metric] 1.0668 cm Length 2.60 in Length [Metric] 6.6040 cm Overall Length 2.6 in Returnable Y Series YA-L-2TC Specifications 15/16 in L Wire Strip, 3/4 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.6 in W x 0.11 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001821 UPC 12 781810018217 Voltage Rating 35,000 V Width 0.60 in Width [Metric] 1.5240 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2 AWG Conductor Type Stranded Copper Die Code 10 Material Copper Stud Size 1/4 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 15/16 IN, Die Index: 10, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Color Code: Brown, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W2CVT, W2CRT, X2CRT die, (1), hydraulic: BCT500HS, Y500CTHS tool, W2CVT, W2CRT, X2CRT die, (1), Y35, Y39, Y750, PAT750 tool, U2CRT die, (1), Y46 tool, U2CRT die with PUADP-1 adapter, (1), color code: Brown, conductor type: commercial stranded copper, dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.42 in OD x 0.88 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YA2CL2TC14E2 |
| Color | Brown |
| Color Code | Brown |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.42 in |
| Height [Metric] | 1.0668 cm |
| Length | 2.60 in |
| Length [Metric] | 6.6040 cm |
| Overall Length | 2.6 in |
| Returnable | Y |
| Series | YA-L-2TC |
| Specifications | 15/16 in L Wire Strip, 3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.6 in W x 0.11 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001821 |
| UPC 12 | 781810018217 |
| Voltage Rating | 35,000 V |
| Width | 0.60 in |
| Width [Metric] | 1.5240 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 10 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 15/16 IN, Die Index: 10, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Color Code: Brown, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) |
| Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W2CVT, W2CRT, X2CRT die, (1), hydraulic: BCT500HS, Y500CTHS tool, W2CVT, W2CRT, X2CRT die, (1), Y35, Y39, Y750, PAT750 tool, U2CRT die, (1), Y46 tool, U2CRT die with PUADP-1 adapter, (1), color code: Brown, conductor type: commercial stranded copper, dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2) |
