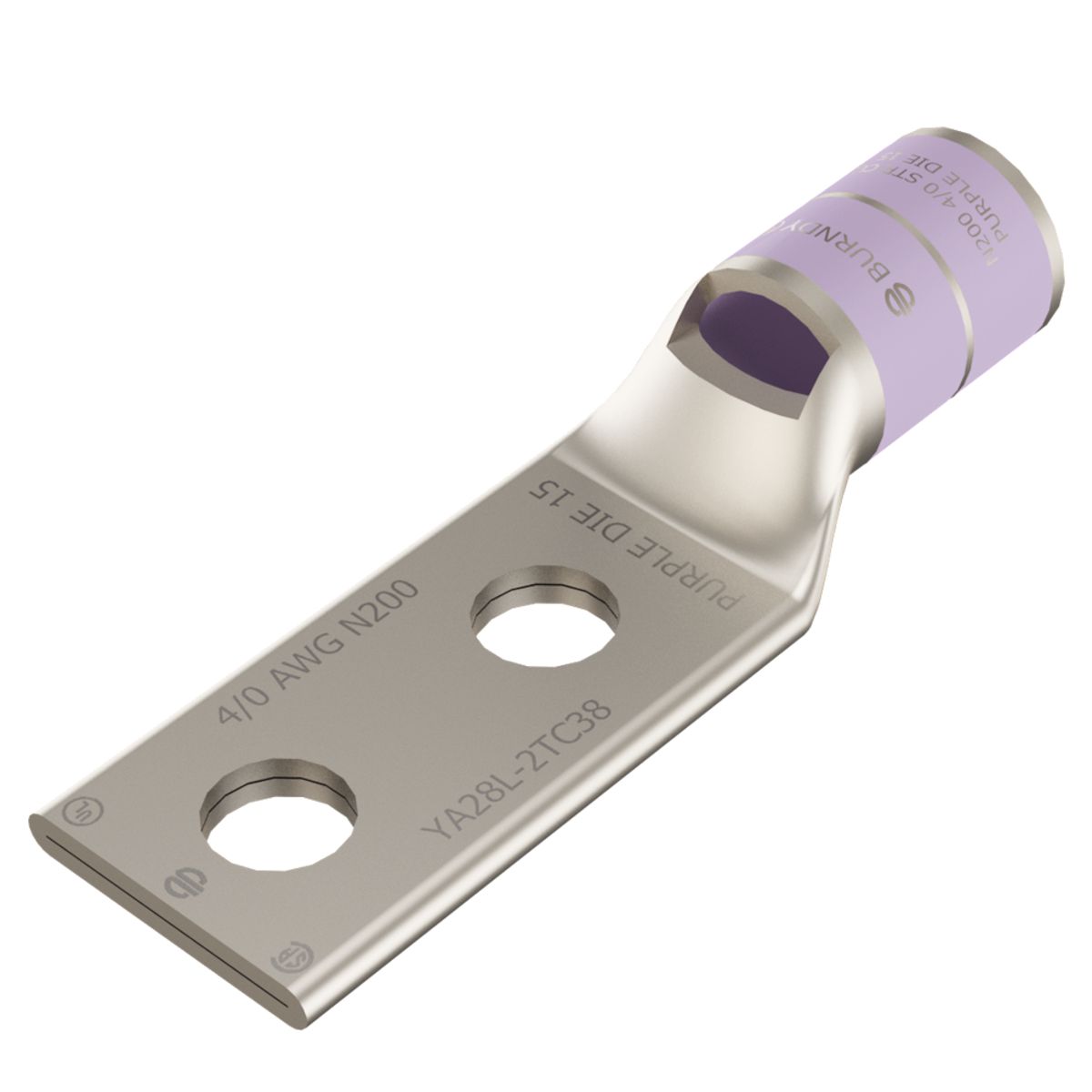

Burndy® YA28L2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Probe Hole, 4/0 AWG Stranded Copper Conductor, 15, Copper
Custom_Product_Images_Illustration
Burndy® YA28L2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Probe Hole, 4/0 AWG Stranded Copper Conductor, 15, Copper
SKU85927
MFGR #YA28L2TC38
$/ea
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.69 in OD x 0.88 in L Barrel Type Chamfered/Short/Skived/Standard Buy American Compliant C Catalog Number YA28L2TC38 Color Purple Color Code Purple Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.69 in Height [Metric] 1.7526 cm Length 3.22 in Length [Metric] 8.1788 cm Overall Length 3.22 in Returnable Y Series YA-L-2TC Specifications 1-1/8 in L Wire Strip, 1 in Stud Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.02 in W x 0.14 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181050366 UPC 12 781810503669 Voltage Rating 35,000 V Width 1.02 in Width [Metric] 2.5908 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4/0 AWG Conductor Type Stranded Copper Die Code 15 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 15, Tongue Angle: Straight, Wire Strip Length: 1-1/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (1), MRC840 Tool, (2), Conductor Type: Commercial Stranded Copper Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.69 in OD x 0.88 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA28L2TC38 |
| Color | Purple |
| Color Code | Purple |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.69 in |
| Height [Metric] | 1.7526 cm |
| Length | 3.22 in |
| Length [Metric] | 8.1788 cm |
| Overall Length | 3.22 in |
| Returnable | Y |
| Series | YA-L-2TC |
| Specifications | 1-1/8 in L Wire Strip, 1 in Stud Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.02 in W x 0.14 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181050366 |
| UPC 12 | 781810503669 |
| Voltage Rating | 35,000 V |
| Width | 1.02 in |
| Width [Metric] | 2.5908 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 15 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 15, Tongue Angle: Straight, Wire Strip Length: 1-1/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (1), MRC840 Tool, (2), Conductor Type: Commercial Stranded Copper |
| Standard, short barrel |
