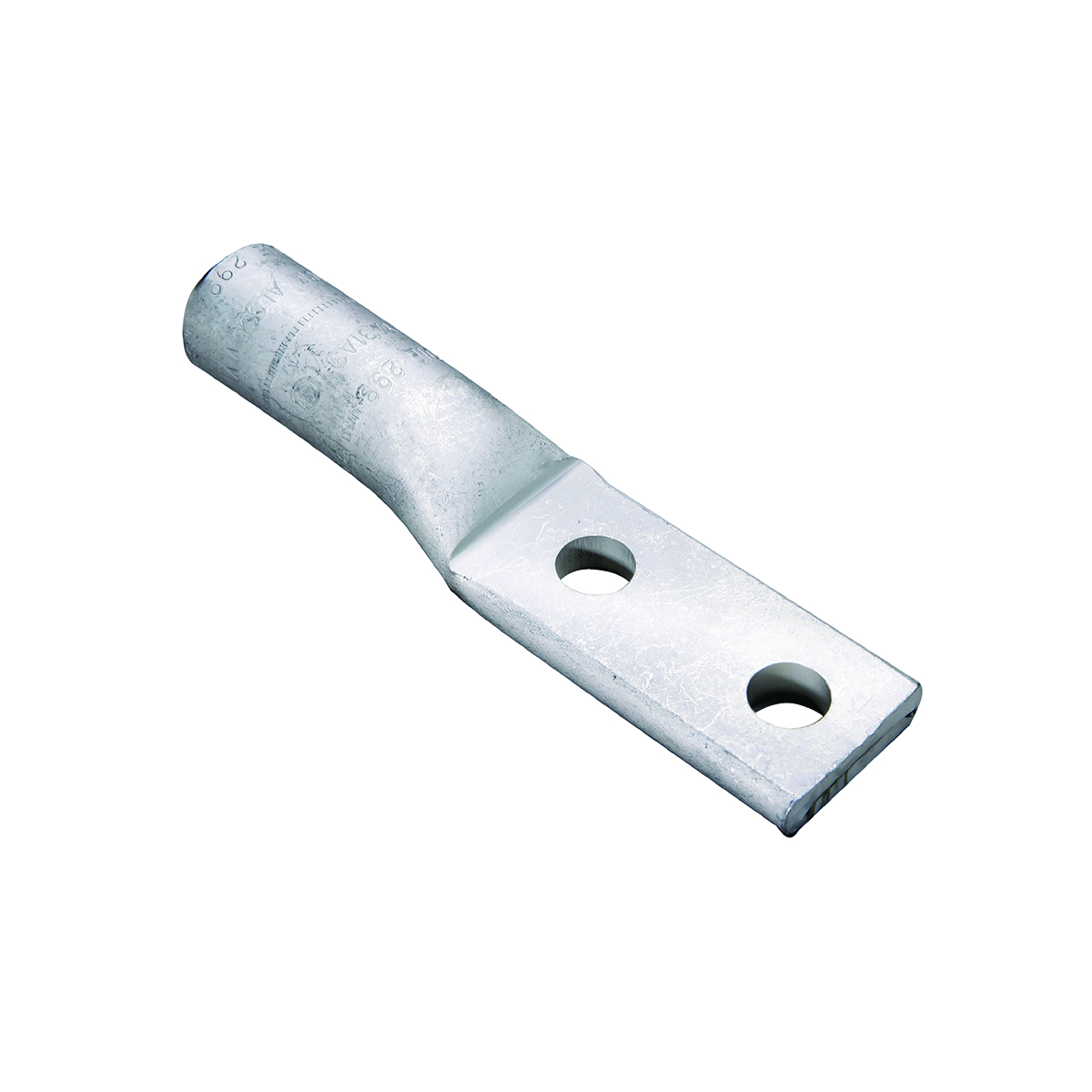

Burndy® YA28A5 HYLUG™ YA-A 2-Hole Compression Lug Without Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® YA28A5 HYLUG™ YA-A 2-Hole Compression Lug Without Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud
SKU19635
MFGR #YA28A5
Your Cost: $22.82/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Buy American Compliant C Catalog Number YA28A5 Color Code White Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1815 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.85 in Height [Metric] 2.1590 cm Length 5.19 in Length [Metric] 13.1826 cm Returnable Y Standard UL 486A-486B Sub Brand Terminals, HYLUG Type YA-A UNSPSC 39121405 UPC 11 78181075450 UPC 12 781810754504 Voltage Rating 35,000 V Width 1.17 in Width [Metric] 2.9718 cm Stock Status NORMALLY STOCKED Brand BURNDY® Manufacturer BURNDY® Material Aluminum Wire Termination UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight For die set catalog number and (number of crimps): Y35, Y39, Y750 tool, (2) U28ART die, Y46 tool, (2) U28ART die with PUADP-1 adapter, dieless tools (number of crimps): Mechanical: (2) MY29-3 tool, hydraulic hypress: (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties Provides durable long lasting corrosion resistance Internally beveled barrel Provides easy cable insertion Provides a quality electrical dual connection Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection Factory prefilled with PENETROX® oxide inhibiting compound Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection Color coded end caps inserted in barrel end Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection Type YA-A 2-hole pads inhibit connector rotation and increase area contact These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads For aluminum and copper conductors 4/0 AWG stranded/solid conductor 1.75 in hole center to center distance, 0.63 in hole center to end, 0.73 in hole center to barrel Without inspection window
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | YA28A5 |
| Color Code | White |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1815 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.85 in |
| Height [Metric] | 2.1590 cm |
| Length | 5.19 in |
| Length [Metric] | 13.1826 cm |
| Returnable | Y |
| Standard | UL 486A-486B |
| Sub Brand | Terminals, HYLUG |
| Type | YA-A |
| UNSPSC | 39121405 |
| UPC 11 | 78181075450 |
| UPC 12 | 781810754504 |
| Voltage Rating | 35,000 V |
| Width | 1.17 in |
| Width [Metric] | 2.9718 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Aluminum |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight |
| For die set catalog number and (number of crimps): Y35, Y39, Y750 tool, (2) U28ART die, Y46 tool, (2) U28ART die with PUADP-1 adapter, dieless tools (number of crimps): Mechanical: (2) MY29-3 tool, hydraulic hypress: (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool |
| Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
| Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties |
| Provides durable long lasting corrosion resistance |
| Internally beveled barrel |
| Provides easy cable insertion |
| Provides a quality electrical dual connection |
| Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
| Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection |
| Factory prefilled with PENETROX® oxide inhibiting compound |
| Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
| Color coded end caps inserted in barrel end |
| Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
| Type YA-A 2-hole pads inhibit connector rotation and increase area contact |
| These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads |
| For aluminum and copper conductors |
| 4/0 AWG stranded/solid conductor |
| 1.75 in hole center to center distance, 0.63 in hole center to end, 0.73 in hole center to barrel |
| Without inspection window |
