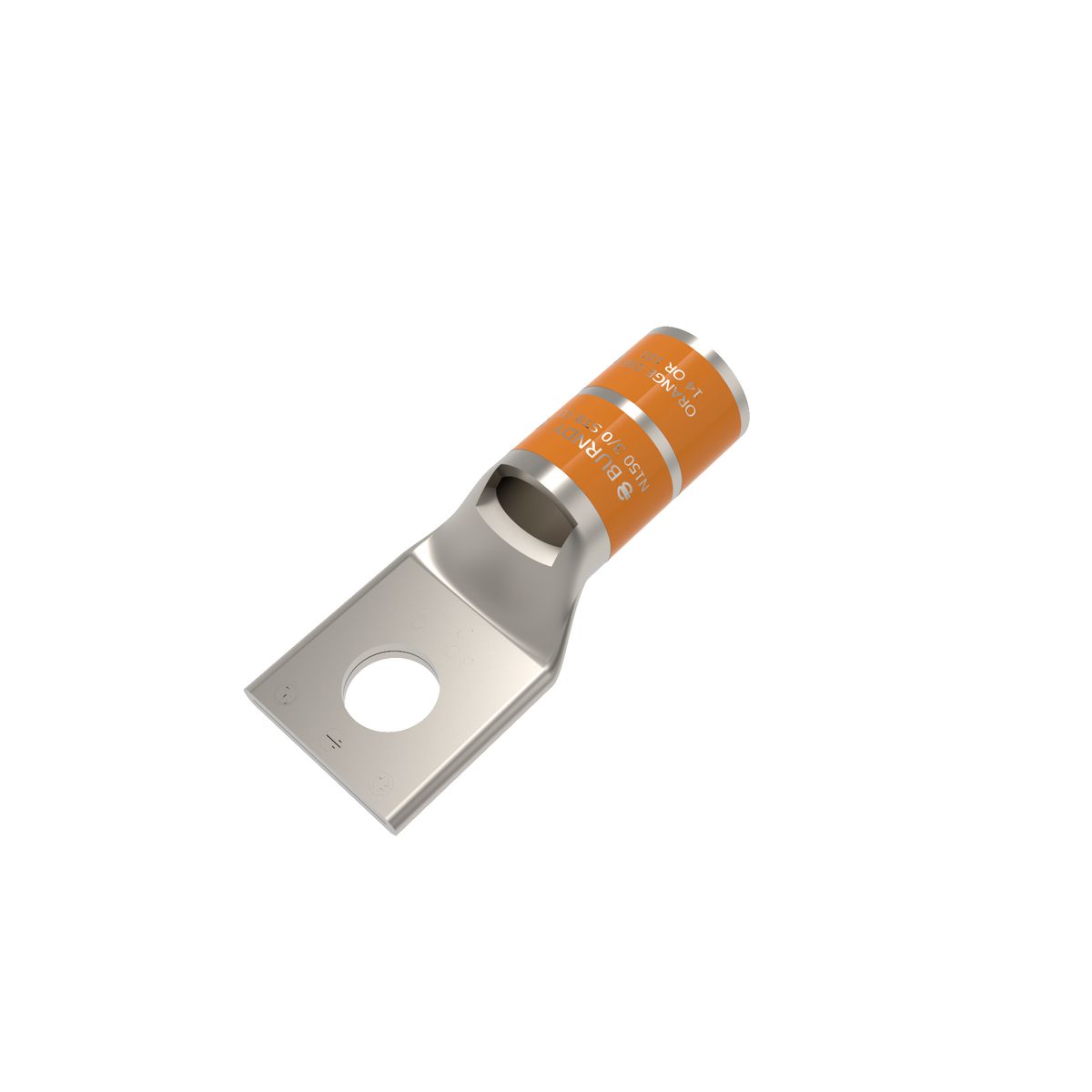

Burndy® YA27L3 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 3/0 AWG Stranded Copper Conductor, 5/16 in Stud
Custom_Product_Images_Illustration
Burndy® YA27L3 HYLUG™ YA-L 1-Hole Compression Lug With Inspection Window, 3/0 AWG Stranded Copper Conductor, 5/16 in Stud
SKU86020
MFGR #YA27L3
Your Cost: $7.33/ea
List: BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY'™s HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.62 in OD x 1 in L Barrel Type Chamfered/Skived/Standard Brand BURNDY® Buy American Compliant C Catalog Number YA27L3 Color Orange Color Code Orange Conductor Size 3/0 AWG Conductor Type Stranded Copper Country of Origin US Die Code 14 EU RoHS Indicator Y Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.62 in Height [Metric] 1.5748 cm Length 2.16 in Length [Metric] 5.4864 cm Manufacturer BURNDY® Material Copper Overall Length 2.16 in Returnable Y Series YA-L Specifications 1-1/16 in L Wire Strip Standard UL 486A-486B Stock Status NONSTOCK Stud Size 5/16 in Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.91 in W x 0.13 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181055383 UPC 12 781810553831 Voltage Rating 35,000 V Width 0.91 in Width [Metric] 2.3114 cm Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 14, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W27VT, W27RT Die, (2), X27RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W27VT, W27RT Die, (2), X27RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U27RT Die, (1), Y46 Tool, U27RT Die With PUADP-1 Adapter, (1), Color Code: Orange, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, MY29-3, MY29-11 Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MRC840 Tool, (2) Standard, short barrel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.62 in OD x 1 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Brand | BURNDY® |
| Buy American Compliant | C |
| Catalog Number | YA27L3 |
| Color | Orange |
| Color Code | Orange |
| Conductor Size | 3/0 AWG |
| Conductor Type | Stranded Copper |
| Country of Origin | US |
| Die Code | 14 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0700 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.62 in |
| Height [Metric] | 1.5748 cm |
| Length | 2.16 in |
| Length [Metric] | 5.4864 cm |
| Manufacturer | BURNDY® |
| Material | Copper |
| Overall Length | 2.16 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 1-1/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Stock Status | NONSTOCK |
| Stud Size | 5/16 in |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.91 in W x 0.13 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181055383 |
| UPC 12 | 781810553831 |
| Voltage Rating | 35,000 V |
| Width | 0.91 in |
| Width [Metric] | 2.3114 cm |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 14, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W27VT, W27RT Die, (2), X27RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W27VT, W27RT Die, (2), X27RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U27RT Die, (1), Y46 Tool, U27RT Die With PUADP-1 Adapter, (1), Color Code: Orange, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, MY29-3, MY29-11 Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MRC840 Tool, (2) |
| Standard, short barrel |
