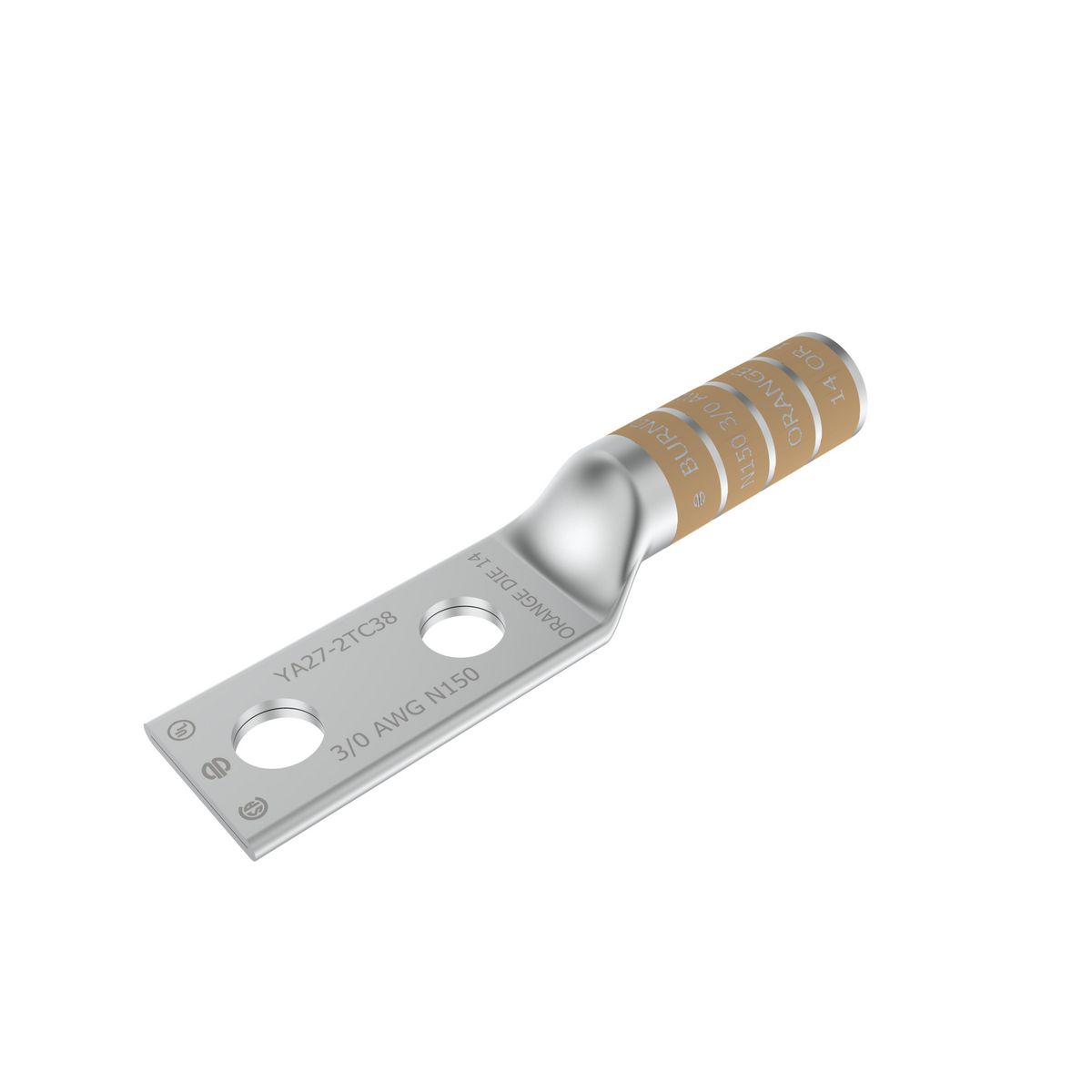

Burndy® YA272TC38 HYLUG™ YA-2TC 2-Hole Compression Lug Without Inspection Window, 3/0 AWG Stranded Solid Copper Conductor
Custom_Product_Images_Illustration
Burndy® YA272TC38 HYLUG™ YA-2TC 2-Hole Compression Lug Without Inspection Window, 3/0 AWG Stranded Solid Copper Conductor
SKU140915
MFGR #YA272TC38
$/ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.62 in OD x 1.5 in L Barrel Type Chamfered/Long/Standard Buy American Compliant C Catalog Number YA272TC38 Color Orange Color Code Orange Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1200 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.62 in Height [Metric] 1.5748 cm Length 3.82 in Length [Metric] 9.7028 cm Overall Length 3.82 in Replaced Catalog Number YA272TC38 Returnable Y Series YA-2TC Specifications 1-9/16 in L Wire Strip, 1 in Hole Spacing Standard UL 486A-486B Standards UL 468A/468B Listed, CSA Certified, RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.9 in W x 0.12 in THK Tongue Type Standard Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181001985 UPC 12 781810019856 Voltage Rating 600 VAC to 35 kV Width 0.90 in Width [Metric] 2.2860 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 3/0 AWG Conductor Type Solid/Stranded Copper Die Code 14 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Die Index: 14, Tongue Angle: Straight, Wire Strip Length: 1-9/16 IN, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W27VT, W27RT Die, (4), X27RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W27VT, W27RT Die, (4), X27RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U27RT Die, (2), Y46 Tool, U27RT Die With PUADP-1 Adapter, (2), Color Code: Orange, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.62 in OD x 1.5 in L |
| Barrel Type | Chamfered/Long/Standard |
| Buy American Compliant | C |
| Catalog Number | YA272TC38 |
| Color | Orange |
| Color Code | Orange |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1200 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.62 in |
| Height [Metric] | 1.5748 cm |
| Length | 3.82 in |
| Length [Metric] | 9.7028 cm |
| Overall Length | 3.82 in |
| Replaced Catalog Number | YA272TC38 |
| Returnable | Y |
| Series | YA-2TC |
| Specifications | 1-9/16 in L Wire Strip, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL 468A/468B Listed, CSA Certified, RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.9 in W x 0.12 in THK |
| Tongue Type | Standard Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181001985 |
| UPC 12 | 781810019856 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.90 in |
| Width [Metric] | 2.2860 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 3/0 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | 14 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Die Index: 14, Tongue Angle: Straight, Wire Strip Length: 1-9/16 IN, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W27VT, W27RT Die, (4), X27RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W27VT, W27RT Die, (4), X27RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U27RT Die, (2), Y46 Tool, U27RT Die With PUADP-1 Adapter, (2), Color Code: Orange, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4) |
