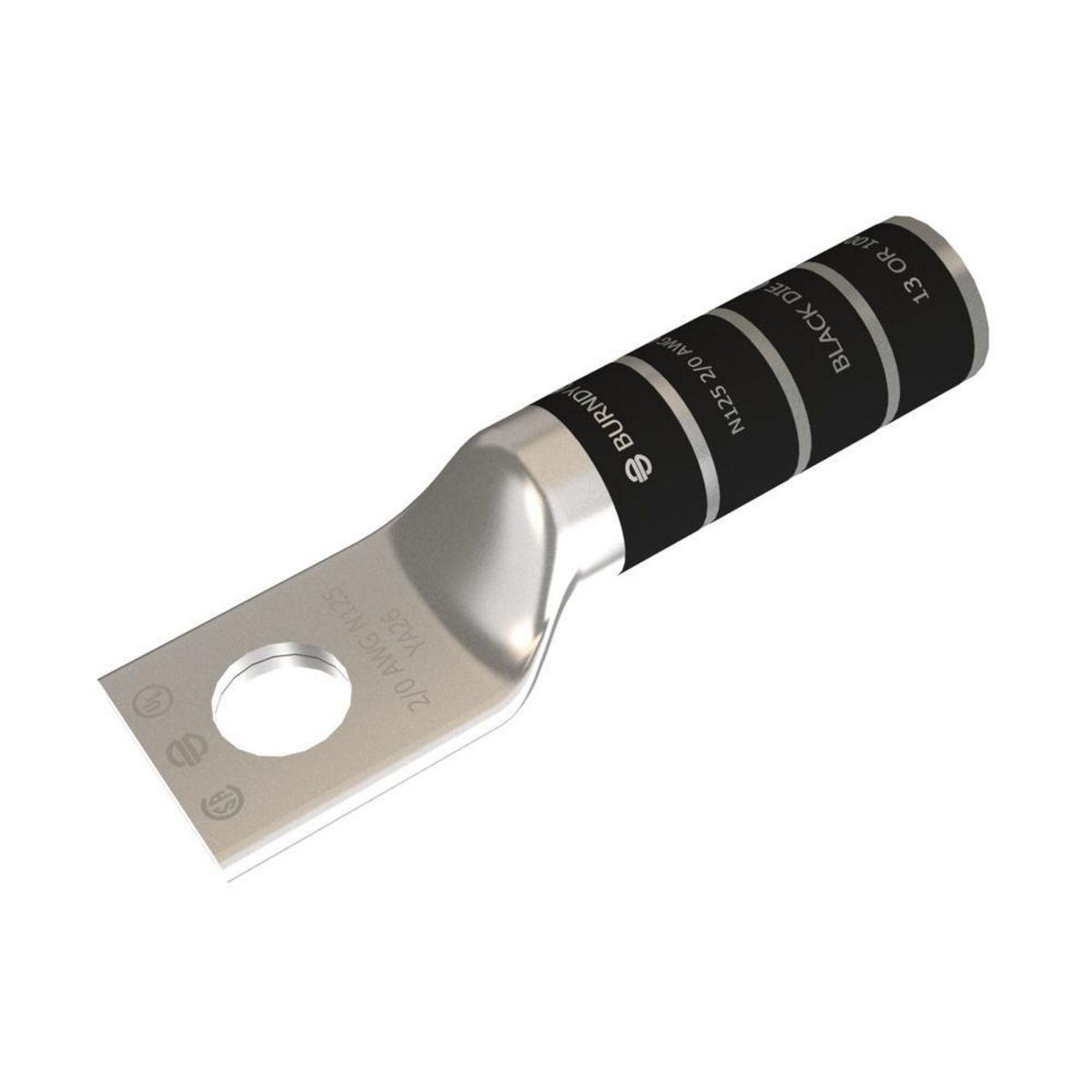

Burndy® YA26N HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 2/0 AWG Stranded Copper Conductor, 13, Copper
Custom_Product_Images_Illustration
Burndy® YA26N HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 2/0 AWG Stranded Copper Conductor, 13, Copper
SKU417040
MFGR #YA26N
Your Cost: $8.84/ea
List: BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Application Wire Termination ARRA Compliant C Barrel Size 0.56 in OD x 1.5 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number YA26N Color Black Color Code Black Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.56 in Height [Metric] 1.4224 cm Length 3.21 in Length [Metric] 8.1534 cm Overall Length 3.21 in Returnable Y Series YA Series Specifications 1-9/16 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.83 in W x 0.12 in THK Tongue Type Standard Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001889 UPC 12 781810018897 Voltage Rating 35,000 V Width 0.83 in Width [Metric] 2.1082 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2/0 AWG Conductor Type Stranded Copper Die Code 13 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 13, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1-9/16 IN, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W26VT, W26RT, X26RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W26VT, W26RT, X26RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U26RT Die, (2), Y46 Tool, U26RT Die With PUADP-1 Adapter, (2), Color Code: Black, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Conductor Type: Commercial Stranded Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.56 in OD x 1.5 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | YA26N |
| Color | Black |
| Color Code | Black |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.56 in |
| Height [Metric] | 1.4224 cm |
| Length | 3.21 in |
| Length [Metric] | 8.1534 cm |
| Overall Length | 3.21 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 1-9/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.83 in W x 0.12 in THK |
| Tongue Type | Standard Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001889 |
| UPC 12 | 781810018897 |
| Voltage Rating | 35,000 V |
| Width | 0.83 in |
| Width [Metric] | 2.1082 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 13 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 13, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1-9/16 IN, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W26VT, W26RT, X26RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W26VT, W26RT, X26RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U26RT Die, (2), Y46 Tool, U26RT Die With PUADP-1 Adapter, (2), Color Code: Black, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Conductor Type: Commercial Stranded Copper |
