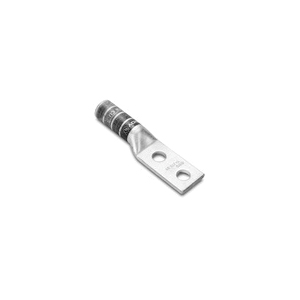

Burndy® YA262TC14E2 YA26-2TC14E2 2-Hole Compression Tubing Terminal, 2/0 AWG Solid Copper/Stranded Conductor
Burndy® YA262TC14E2 YA26-2TC14E2 2-Hole Compression Tubing Terminal, 2/0 AWG Solid Copper/Stranded Conductor
SKU914611
MFGR #YA262TC14E2
Your Cost: $18.07/ea
List: BURNDY® Compression Tubing Terminal, 2-Hole, Solid Copper/Stranded Conductor, 2/0 AWG Conductor, Die Code: 13, Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 3.34 in Overall Length, Chamfered/Long, 1-1/2 in L Barrel, 1-9/16 in Wire Stripe Length, 0.27 in Mounting Hole, Tin Electro Plated Copper, Black
BURNDY® Compression Tubing Terminal, 2-Hole, Solid Copper/Stranded Conductor, 2/0 AWG Conductor, Die Code: 13, Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 3.34 in Overall Length, Chamfered/Long, 1-1/2 in L Barrel, 1-9/16 in Wire Stripe Length, 0.27 in Mounting Hole, Tin Electro Plated Copper, Black
Barrel Size 1-1/2 in L Barrel Type Chamfered/Long Catalog Number YA262TC14E2 Color Black Country of Origin US Gross Weight Per Pack 0.1000 lb Mounting Hole Size 0.27 in Overall Length 3.34 in Specifications 1-9/16 in L Wire Stripe Standards CSA Certified, Industry Standards UL468A-468B, RoHS Compliant, UL Listed Tongue Size 0.83 in W x 0.12 in THK Tongue Type Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181001984 UPC 12 781810019849 Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2/0 AWG Conductor Type Solid Copper/Stranded Die Code 13 Material Tin Electro Plated Copper Features: UL Listed 90 ° C, 600 V - 35 KV; 45 DEG And 90 ° Angles Are Available; Tongue Angle: Straight; Wire Strip Length: 1-9/16 IN; Temperature Rating: 90 ° C; Finish: Electro-Tin Plated; Tools, Die Set Catalog Number, And (number Of Crimps): Mec 0.88 in stud hole spacing 2/0 AWG copper solid/stranded cable 125 (61) navy cable
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 1-1/2 in L |
| Barrel Type | Chamfered/Long |
| Catalog Number | YA262TC14E2 |
| Color | Black |
| Country of Origin | US |
| Gross Weight Per Pack | 0.1000 lb |
| Mounting Hole Size | 0.27 in |
| Overall Length | 3.34 in |
| Specifications | 1-9/16 in L Wire Stripe |
| Standards | CSA Certified, Industry Standards UL468A-468B, RoHS Compliant, UL Listed |
| Tongue Size | 0.83 in W x 0.12 in THK |
| Tongue Type | Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181001984 |
| UPC 12 | 781810019849 |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Solid Copper/Stranded |
| Die Code | 13 |
| Material | Tin Electro Plated Copper |
| Features: UL Listed 90 ° C, 600 V - 35 KV; 45 DEG And 90 ° Angles Are Available; Tongue Angle: Straight; Wire Strip Length: 1-9/16 IN; Temperature Rating: 90 ° C; Finish: Electro-Tin Plated; Tools, Die Set Catalog Number, And (number Of Crimps): Mec |
| 0.88 in stud hole spacing |
| 2/0 AWG copper solid/stranded cable |
| 125 (61) navy cable |
