BURNDY®

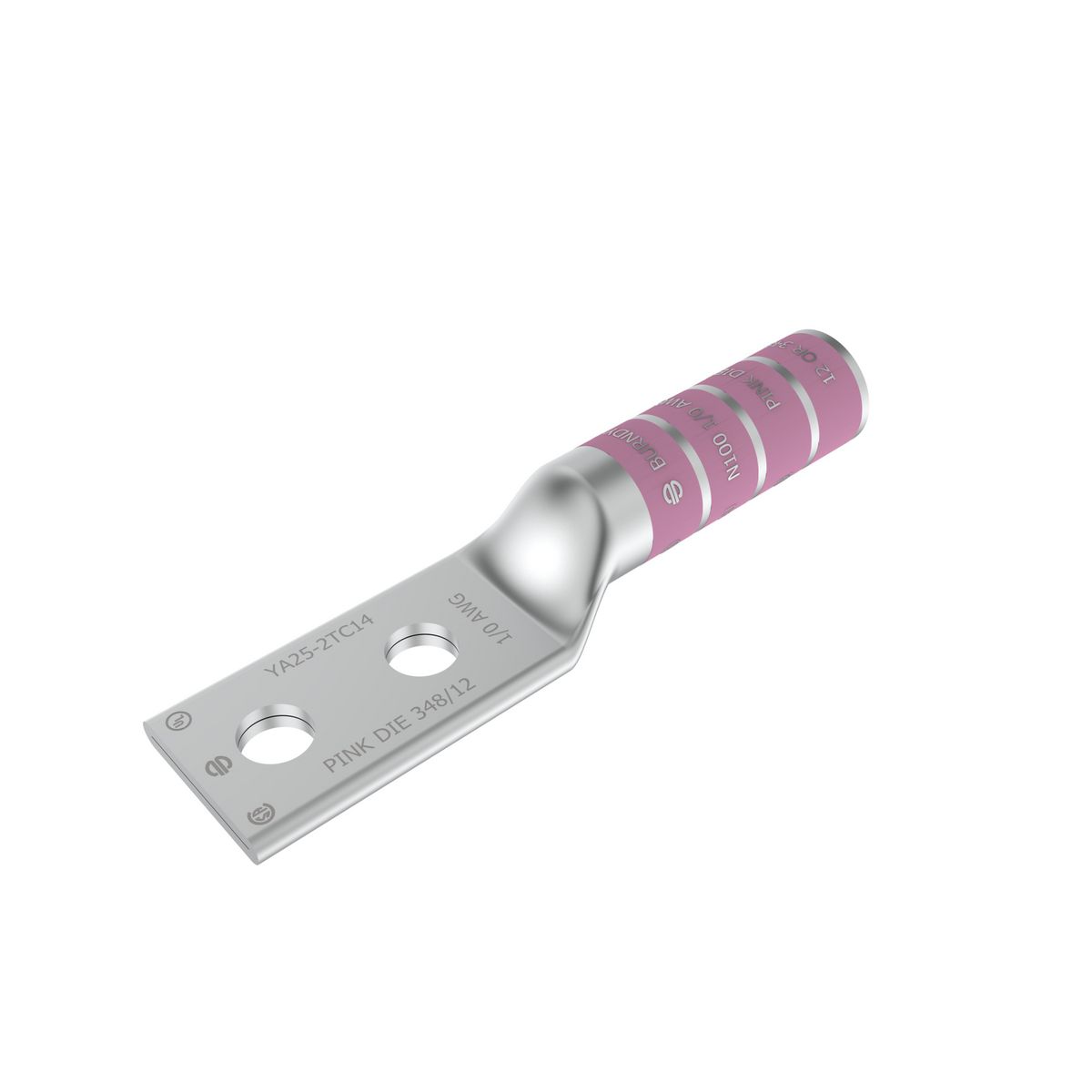

Burndy® YA252NTC38 HYLUG™ YA-2TC 2-Hole Compression Lug Without Inspection Window, 1/0 AWG Copper Conductor, 3/8 in Stud
Custom_Product_Images_Illustration
BURNDY®
Burndy® YA252NTC38 HYLUG™ YA-2TC 2-Hole Compression Lug Without Inspection Window, 1/0 AWG Copper Conductor, 3/8 in Stud
SKU725321
MFGR #YA252NTC38
Your Cost: $18.09/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 1.38 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number YA252NTC38 Color Pink Color Code Pink Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.51 in Height [Metric] 1.2954 cm Length 4.37 in Length [Metric] 11.0998 cm Overall Length 4.37 in Returnable Y Series YA-2TC Specifications 1-7/16 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Standards UL467, CSA Certified and RoHS Compliant Sub Brand TERMINALS, HYLUG Temperature Rating 90 °C Tongue Size 0.75 in W x 0.12 in THK Tongue Type Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181002035 UPC 12 781810020357 Voltage Rating 35,000 V Width 0.75 in Width [Metric] 1.9050 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 1/0 AWG Conductor Type Stranded Copper Die Code 12 Material Copper Stud Size 3/8 in Wire Termination Features: Compression Terminal, Die Index: 12 or 348, Strip Length: 1-7/16 IN, Tongue Angle: Straight, Finish: Tin Plated For W25VT, W25RT W-dies, X25RT X-die and U25RT U-die installation tool 1/0 AWG stranded conductor size 1-7/16 in L Strip, 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.38 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | YA252NTC38 |
| Color | Pink |
| Color Code | Pink |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.51 in |
| Height [Metric] | 1.2954 cm |
| Length | 4.37 in |
| Length [Metric] | 11.0998 cm |
| Overall Length | 4.37 in |
| Returnable | Y |
| Series | YA-2TC |
| Specifications | 1-7/16 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | UL467, CSA Certified and RoHS Compliant |
| Sub Brand | TERMINALS, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.75 in W x 0.12 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002035 |
| UPC 12 | 781810020357 |
| Voltage Rating | 35,000 V |
| Width | 0.75 in |
| Width [Metric] | 1.9050 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 12 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: Compression Terminal, Die Index: 12 or 348, Strip Length: 1-7/16 IN, Tongue Angle: Straight, Finish: Tin Plated |
| For W25VT, W25RT W-dies, X25RT X-die and U25RT U-die installation tool |
| 1/0 AWG stranded conductor size |
| 1-7/16 in L Strip, 1-3/4 in Stud Hole Spacing |
