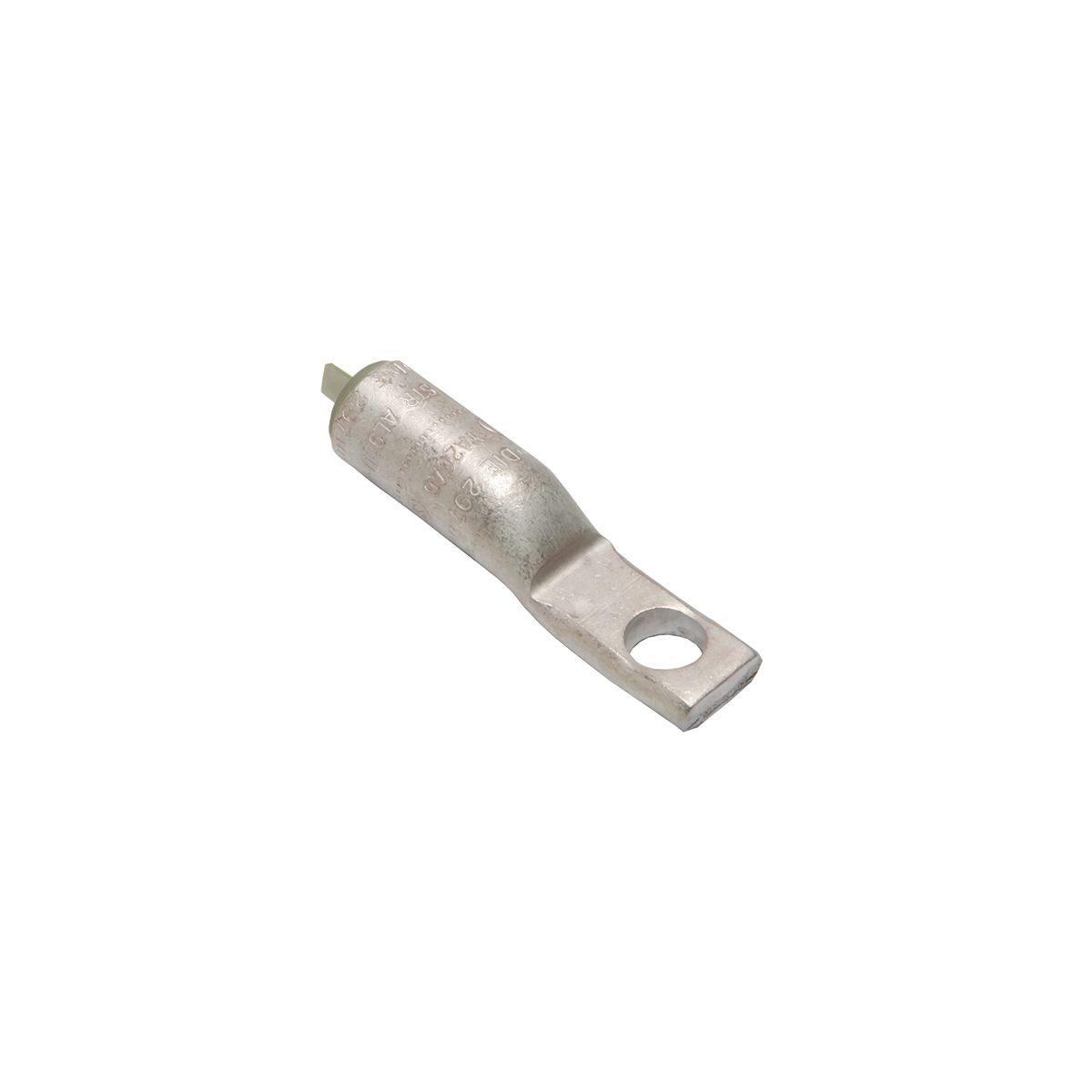

Burndy® YA1CA1 HYLUG™ YA-A 1-Hole Non-Insulated Compression Lug Without Inspection Window, 1 AWG Aluminum/Copper Conductor
Custom_Product_Images_Illustration
Burndy® YA1CA1 HYLUG™ YA-A 1-Hole Non-Insulated Compression Lug Without Inspection Window, 1 AWG Aluminum/Copper Conductor
SKU19625
MFGR #YA1CA1
Your Cost: $7.50/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
Application Wire Termination ARRA Compliant C Barrel Size 0.91 in L Barrel Type Standard Buy American Compliant C Catalog Number YA1CA1 Color Gold Color Code Gold Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.54 in Height [Metric] 1.3716 cm Length 2.59 in Length [Metric] 6.5786 cm Overall Length 2.59 in Returnable Y Series YA-A Specifications 15/16 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.19 in L x 0.76 in W x 0.19 in THK Tongue Type Standard Straight Type YA-A, Dual Rated UNSPSC 39121405 UPC 11 78181075120 UPC 12 781810751206 Voltage Rating 35,000 V Width 0.76 in Width [Metric] 1.9304 cm Stock Status NORMALLY STOCKED Brand BURNDY® Manufacturer BURNDY® Conductor Size 1 AWG Conductor Type Aluminum/Stranded Copper Die Code 471 Material Aluminum Stud Size 3/8 in Wire Termination Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U1CART Die, (1), Y46 Tool, U1CART Die With PUADP-1 Adapter, (1), Color Code: Gold, Dieless Tools (number Of Crimps): Mechanical: MY29-3, MRC840AL Tool, (1), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 471 For die set catalog number and (number of crimps): Y35, Y39, Y750 tool, (1) U1CART die, Y46 tool, U1CART die with (1) PUADP-1 adapter, dieless tools (number of crimps): mechanical: (1) MY29-3, MRC840AL tool, hydraulic HYPRESS: (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties Provides durable long lasting corrosion resistance Internally beveled barrel Provides easy cable insertion Provides a quality electrical dual connection Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection Factory prefilled with PENETROX® oxide inhibiting compound Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection Color coded end caps inserted in barrel end Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil They are designed for heavy duty applications to 35 kV YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps Used for MY29-3, MRC840AL, Y81KFT, Y81KFTMBH, Y644HS, PAT81KFT-18V crimpers 1 AWG stranded conductor size, 0.44 in hole center to end, 0.75 in hole center to barrel Without inspection window
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.91 in L |
| Barrel Type | Standard |
| Buy American Compliant | C |
| Catalog Number | YA1CA1 |
| Color | Gold |
| Color Code | Gold |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.54 in |
| Height [Metric] | 1.3716 cm |
| Length | 2.59 in |
| Length [Metric] | 6.5786 cm |
| Overall Length | 2.59 in |
| Returnable | Y |
| Series | YA-A |
| Specifications | 15/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.19 in L x 0.76 in W x 0.19 in THK |
| Tongue Type | Standard Straight |
| Type | YA-A, Dual Rated |
| UNSPSC | 39121405 |
| UPC 11 | 78181075120 |
| UPC 12 | 781810751206 |
| Voltage Rating | 35,000 V |
| Width | 0.76 in |
| Width [Metric] | 1.9304 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1 AWG |
| Conductor Type | Aluminum/Stranded Copper |
| Die Code | 471 |
| Material | Aluminum |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U1CART Die, (1), Y46 Tool, U1CART Die With PUADP-1 Adapter, (1), Color Code: Gold, Dieless Tools (number Of Crimps): Mechanical: MY29-3, MRC840AL Tool, (1), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 471 |
| For die set catalog number and (number of crimps): Y35, Y39, Y750 tool, (1) U1CART die, Y46 tool, U1CART die with (1) PUADP-1 adapter, dieless tools (number of crimps): mechanical: (1) MY29-3, MRC840AL tool, hydraulic HYPRESS: (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool |
| Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
| Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties |
| Provides durable long lasting corrosion resistance |
| Internally beveled barrel |
| Provides easy cable insertion |
| Provides a quality electrical dual connection |
| Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
| Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection |
| Factory prefilled with PENETROX® oxide inhibiting compound |
| Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
| Color coded end caps inserted in barrel end |
| Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
| Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil |
| They are designed for heavy duty applications to 35 kV |
| YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps |
| Used for MY29-3, MRC840AL, Y81KFT, Y81KFTMBH, Y644HS, PAT81KFT-18V crimpers |
| 1 AWG stranded conductor size, 0.44 in hole center to end, 0.75 in hole center to barrel |
| Without inspection window |
