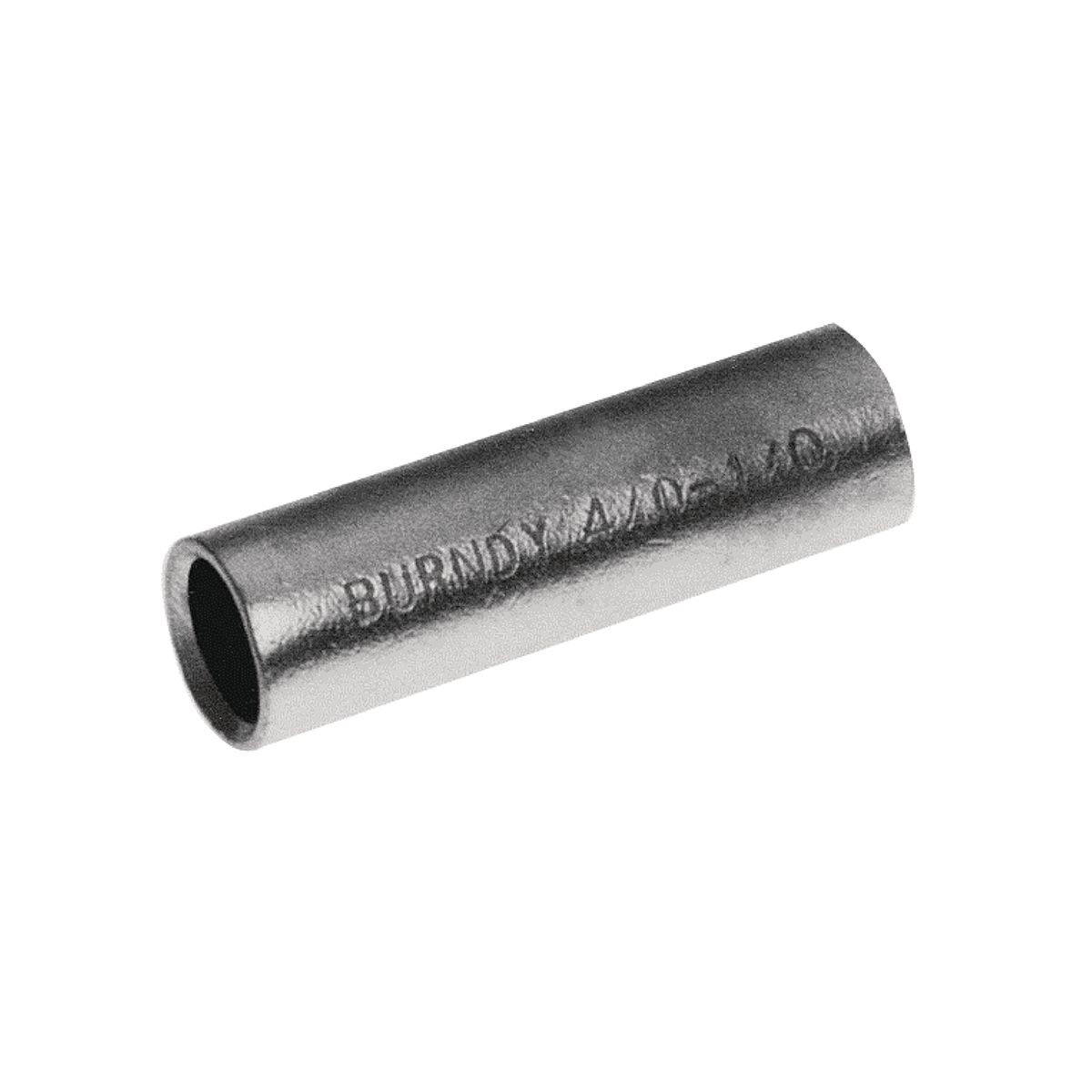

Burndy® Y282CR Type Y-R Compression Reducing Adapter, 600 VAC to 35 kVAC, 4/0 to 2 AWG Conductor, Copper
Custom_Product_Images_Illustration
Burndy® Y282CR Type Y-R Compression Reducing Adapter, 600 VAC to 35 kVAC, 4/0 to 2 AWG Conductor, Copper
SKU181834
MFGR #Y282CR
$/ea
The Y-R reducing adapter has been designed to allow large size, long barrel, copper long barrel HYDENT™, HYSPLICE™ and HYTEE™ terminals, splices, and T taps to be used on smaller conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.
The Y-R reducing adapter has been designed to allow large size, long barrel, copper long barrel HYDENT™, HYSPLICE™ and HYTEE™ terminals, splices, and T taps to be used on smaller conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.
Application Wire Reducing Splice Adapter Insert ARRA Compliant C Buy American Compliant C Catalog Number Y282CR Country of Origin US Dimensions 0.534 in OD EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.53 in Height [Metric] 1.3462 cm Length [Metric] 4.4450 cm Returnable Y Sub Brand REDUCER/ADAPTER Temperature Rating 194 Type Y-R, Compression UNSPSC 39121458 UPC 11 78181000098 UPC 12 781810000984 Voltage Rating 600 to 35000 VAC Width 0.53 in Width [Metric] 1.3462 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2 to 4/0 AWG Conductor Type Stranded Copper Length 1.75 in Material Copper Wire Reducing Splice Adapter Insert Features: The Y-R Reducing Adapter Has Been Designed To Allow Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes, To Use, Simply Insert The Reducer Into The Barrel, Insert The Wire Into The Reducer Adapter And Crimp The Outer Barrel Using Its Recommended Tooling, Wide Range Of Conductors Are Accommodated: Lowers Inventory Requirements And Affords Maximum Versatility, Same Die Set For All Legs Of The Connection: Permits The Same Tool And Die Combination Normally Used On The Compression Barrel, Length Fits The Long Barrel Connector Design (YS, YA): Can Be Used On All Long Barrel Connectors, Field Cut To Fit Shorter Length Compression Barrels (YS-L, YA-L), Manufactured From High Conductivity Electrolytic Copper And Electro-Tin Plated: Provides Maximum Conductivity Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, And Provides Long Lasting Corrosion Resistance, Conductor Type: Copper Long barrel Wide range of conductors are accommodated, lowers inventory requirements and affords maximum versatility Same die set for all legs of the connection, permits the same tool and die combination normally used on the compression barrel Length fits the long barrel connector design (YS, YA), Can be used on all long barrel connectors, field cut to fit shorter length compression barrels (YS-L, YA-L) Manufactured from high conductivity electrolytic copper and electro-tin-plated Provides maximum conductivity low resistance and ductility for an excellent combination of electrical and crimp forming properties, and provides long lasting corrosion resistance
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Reducing Splice Adapter Insert |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | Y282CR |
| Country of Origin | US |
| Dimensions | 0.534 in OD |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.53 in |
| Height [Metric] | 1.3462 cm |
| Length [Metric] | 4.4450 cm |
| Returnable | Y |
| Sub Brand | REDUCER/ADAPTER |
| Temperature Rating | 194 |
| Type | Y-R, Compression |
| UNSPSC | 39121458 |
| UPC 11 | 78181000098 |
| UPC 12 | 781810000984 |
| Voltage Rating | 600 to 35000 VAC |
| Width | 0.53 in |
| Width [Metric] | 1.3462 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2 to 4/0 AWG |
| Conductor Type | Stranded Copper |
| Length | 1.75 in |
| Material | Copper |
| Wire Reducing Splice Adapter Insert |
| Features: The Y-R Reducing Adapter Has Been Designed To Allow Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes, To Use, Simply Insert The Reducer Into The Barrel, Insert The Wire Into The Reducer Adapter And Crimp The Outer Barrel Using Its Recommended Tooling, Wide Range Of Conductors Are Accommodated: Lowers Inventory Requirements And Affords Maximum Versatility, Same Die Set For All Legs Of The Connection: Permits The Same Tool And Die Combination Normally Used On The Compression Barrel, Length Fits The Long Barrel Connector Design (YS, YA): Can Be Used On All Long Barrel Connectors, Field Cut To Fit Shorter Length Compression Barrels (YS-L, YA-L), Manufactured From High Conductivity Electrolytic Copper And Electro-Tin Plated: Provides Maximum Conductivity Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, And Provides Long Lasting Corrosion Resistance, Conductor Type: Copper |
| Long barrel |
| Wide range of conductors are accommodated, lowers inventory requirements and affords maximum versatility |
| Same die set for all legs of the connection, permits the same tool and die combination normally used on the compression barrel |
| Length fits the long barrel connector design (YS, YA), Can be used on all long barrel connectors, field cut to fit shorter length compression barrels (YS-L, YA-L) |
| Manufactured from high conductivity electrolytic copper and electro-tin-plated |
| Provides maximum conductivity low resistance and ductility for an excellent combination of electrical and crimp forming properties, and provides long lasting corrosion resistance |
