BURNDY®

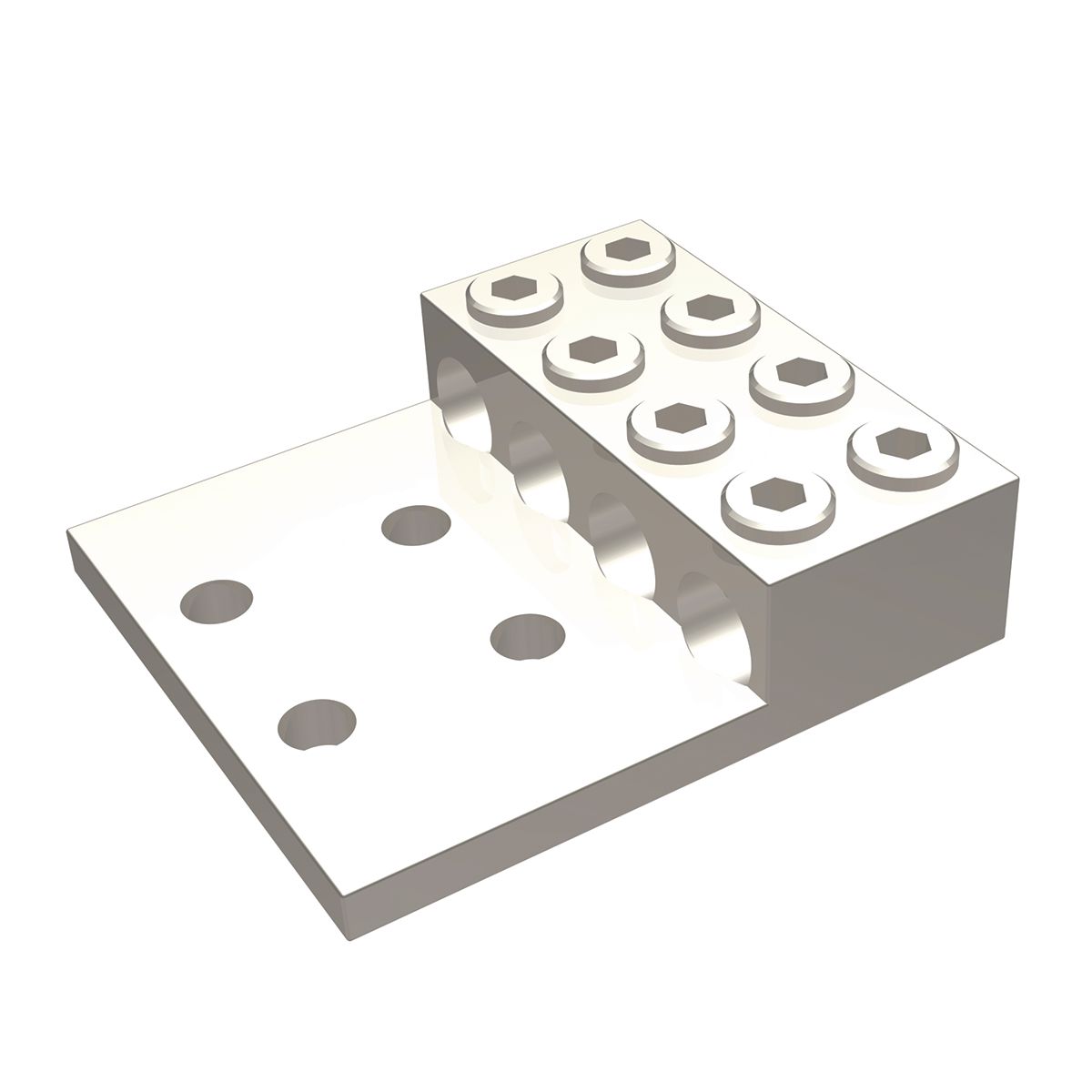

Burndy® KK4A36U4N KK4A-U Dual Rated Universal Terminal Lug, 2 AWG to 600 kcmil Copper/Stranded Aluminum Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
BURNDY®
Burndy® KK4A36U4N KK4A-U Dual Rated Universal Terminal Lug, 2 AWG to 600 kcmil Copper/Stranded Aluminum Conductor, 1/2 in Stud
SKU86042
MFGR #KK4A36U4N
Your Cost: $105.91/ea
List: BURNDY® is The Grounding Superstore. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.
BURNDY® is The Grounding Superstore. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.
Application For Aluminum And Copper Conductors ARRA Compliant C Buy American Compliant C Catalog Number KK4A36U4N Country of Origin US Dimensions 5.63 in L x 5.00 in W x 1.69 in H EU RoHS Indicator Y Finish Electro-Plated Zinc Gross Weight Per Pack 2.2800 lb Gross Weight per Pack Metric 1.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.51 in Height [Metric] 3.8354 cm Length 5.63 in Length [Metric] 14.3002 cm Number Of Conductors 4 Number of Conductors|Ports [Main|Primary] 4 Returnable Y Series KK4A-U Specifications 2.29 in L Collar 1-3/4 in Mounting Hole Spacing Standard UL 486A-486B Standards CSA Certified, RoHS Complaint, UL468A-468B Listed Sub Brand UNIVERSAL TERMINAL Tongue Size 5.31 in W x 0.44 in THK Tongue Type Straight Type Dual Rated UNSPSC 39121408 UPC 11 78181060111 UPC 12 781810601112 Width 5.31 in Width [Metric] 13.4874 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2 AWG to 600 kcmil Conductor Type Copper/Stranded Aluminum Material Aluminum Alloy Number of Bolt Holes 4 Stud Size 1/2 in For Aluminum and Copper Conductors Universal terminal, These dual-rated four conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance Dual-rated four conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance 8 screws, 4 holes of 1/2 in NEMA standard stud holes
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Aluminum And Copper Conductors |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | KK4A36U4N |
| Country of Origin | US |
| Dimensions | 5.63 in L x 5.00 in W x 1.69 in H |
| EU RoHS Indicator | Y |
| Finish | Electro-Plated Zinc |
| Gross Weight Per Pack | 2.2800 lb |
| Gross Weight per Pack Metric | 1.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.51 in |
| Height [Metric] | 3.8354 cm |
| Length | 5.63 in |
| Length [Metric] | 14.3002 cm |
| Number Of Conductors | 4 |
| Number of Conductors|Ports [Main|Primary] | 4 |
| Returnable | Y |
| Series | KK4A-U |
| Specifications | 2.29 in L Collar 1-3/4 in Mounting Hole Spacing |
| Standard | UL 486A-486B |
| Standards | CSA Certified, RoHS Complaint, UL468A-468B Listed |
| Sub Brand | UNIVERSAL TERMINAL |
| Tongue Size | 5.31 in W x 0.44 in THK |
| Tongue Type | Straight |
| Type | Dual Rated |
| UNSPSC | 39121408 |
| UPC 11 | 78181060111 |
| UPC 12 | 781810601112 |
| Width | 5.31 in |
| Width [Metric] | 13.4874 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2 AWG to 600 kcmil |
| Conductor Type | Copper/Stranded Aluminum |
| Material | Aluminum Alloy |
| Number of Bolt Holes | 4 |
| Stud Size | 1/2 in |
| For Aluminum and Copper Conductors |
| Universal terminal, These dual-rated four conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| Dual-rated four conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| 8 screws, 4 holes of 1/2 in |
| NEMA standard stud holes |
