BURNDY®

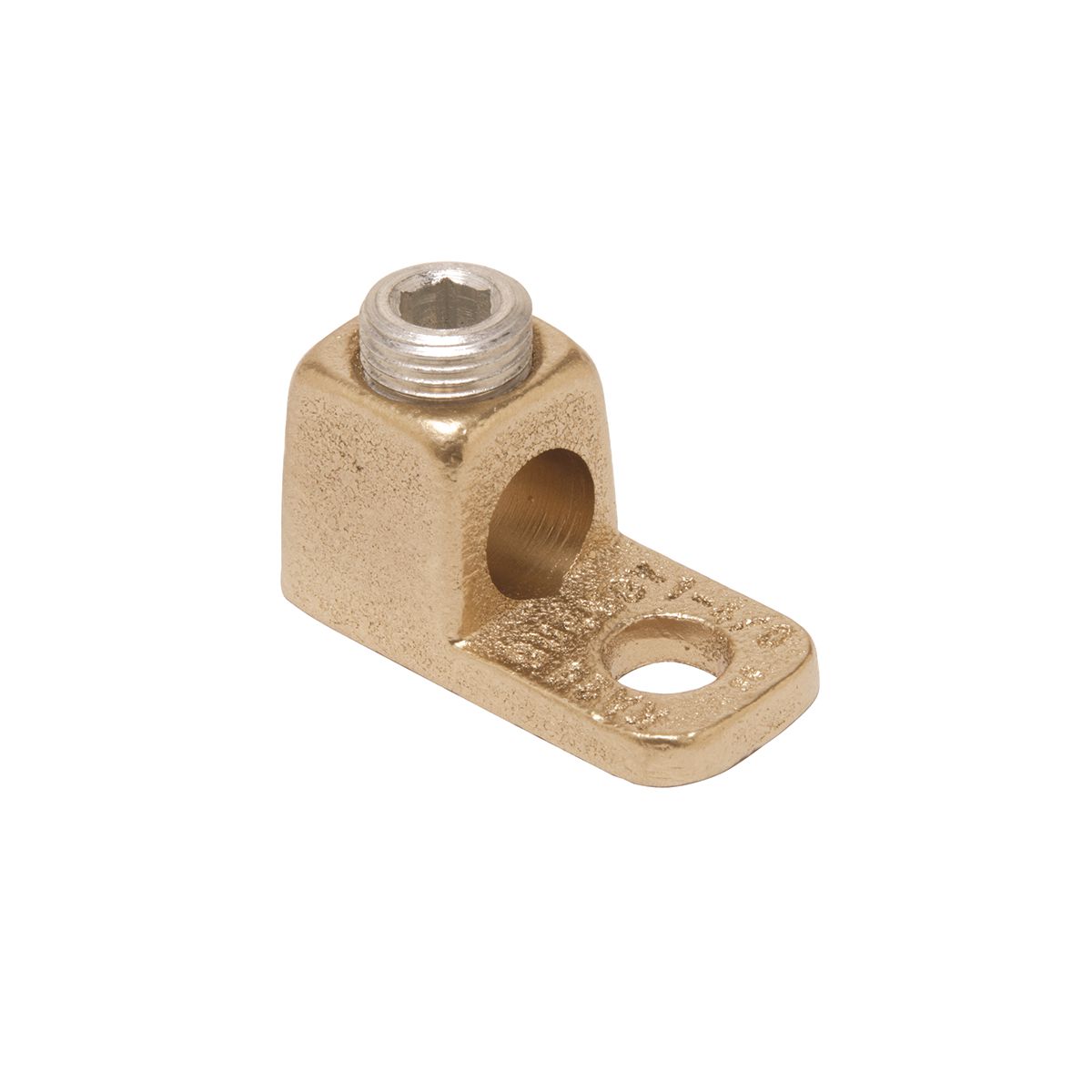

Burndy® KA4C Terminal Connector Lug, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper
Custom_Product_Images_Illustration
BURNDY®
Burndy® KA4C Terminal Connector Lug, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper
SKU19485
MFGR #KA4C
Your Cost: $2.58/ea
List: BURNDY® Terminal Connector Lug, Stranded Solid Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 1 Screw, Copper, 1.11 in L x 0.77 in W x 0.1 in THK
BURNDY® Terminal Connector Lug, Stranded Solid Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 1 Screw, Copper, 1.11 in L x 0.77 in W x 0.1 in THK
Application For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks ARRA Compliant C Brand BURNDY® Buy American Compliant C Catalog Number KA4C Conductor Size 14 to 4 AWG Conductor Type Stranded Solid Copper Country of Origin IN Dimensions 1-1/8 in L x 3/4 in H EU RoHS Indicator Y Finish Unplated Gross Weight Per Pack 0.0450 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.77 in Height [Metric] 1.9558 cm Length 1.11 in Length [Metric] 2.8194 cm Manufacturer BURNDY® Material Copper Number of Bolt Holes 1 Replaced Catalog Number KA4C Returnable Y Series KA Series Specifications 1 Screw, 0.54 in W Pad, 45 Installation Torque Standard UL 486A-486B Stock Status NORMALLY STOCKED Stud Size 5/16 in Sub Brand KA-LUG Tongue Size 9/16 in W x 0.10 in THK Type Bolted Lugs & Terminals UNSPSC 39121408 UPC 11 78181036140 UPC 12 781810361405 Width 0.54 in Width [Metric] 1.3716 cm For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks Features: Compact, Economical, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Dimension N: 1/4 IN, Dimension K: 9/32 IN, Dimension T: 7/64 IN, Tongue Width: 9/16 IN, Installation Torque: 45 IN-LB, Stud/bolt Hole Size: 1/4 IN, Length: 1-1/8 IN, Height: 3/4 IN Compact, economical, high copper alloy terminal 45 installation torque Terminal connector type
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| ARRA Compliant | C |
| Brand | BURNDY® |
| Buy American Compliant | C |
| Catalog Number | KA4C |
| Conductor Size | 14 to 4 AWG |
| Conductor Type | Stranded Solid Copper |
| Country of Origin | IN |
| Dimensions | 1-1/8 in L x 3/4 in H |
| EU RoHS Indicator | Y |
| Finish | Unplated |
| Gross Weight Per Pack | 0.0450 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.77 in |
| Height [Metric] | 1.9558 cm |
| Length | 1.11 in |
| Length [Metric] | 2.8194 cm |
| Manufacturer | BURNDY® |
| Material | Copper |
| Number of Bolt Holes | 1 |
| Replaced Catalog Number | KA4C |
| Returnable | Y |
| Series | KA Series |
| Specifications | 1 Screw, 0.54 in W Pad, 45 Installation Torque |
| Standard | UL 486A-486B |
| Stock Status | NORMALLY STOCKED |
| Stud Size | 5/16 in |
| Sub Brand | KA-LUG |
| Tongue Size | 9/16 in W x 0.10 in THK |
| Type | Bolted Lugs & Terminals |
| UNSPSC | 39121408 |
| UPC 11 | 78181036140 |
| UPC 12 | 781810361405 |
| Width | 0.54 in |
| Width [Metric] | 1.3716 cm |
| For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks |
| Features: Compact, Economical, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Dimension N: 1/4 IN, Dimension K: 9/32 IN, Dimension T: 7/64 IN, Tongue Width: 9/16 IN, Installation Torque: 45 IN-LB, Stud/bolt Hole Size: 1/4 IN, Length: 1-1/8 IN, Height: 3/4 IN |
| Compact, economical, high copper alloy terminal |
| 45 installation torque |
| Terminal connector type |
