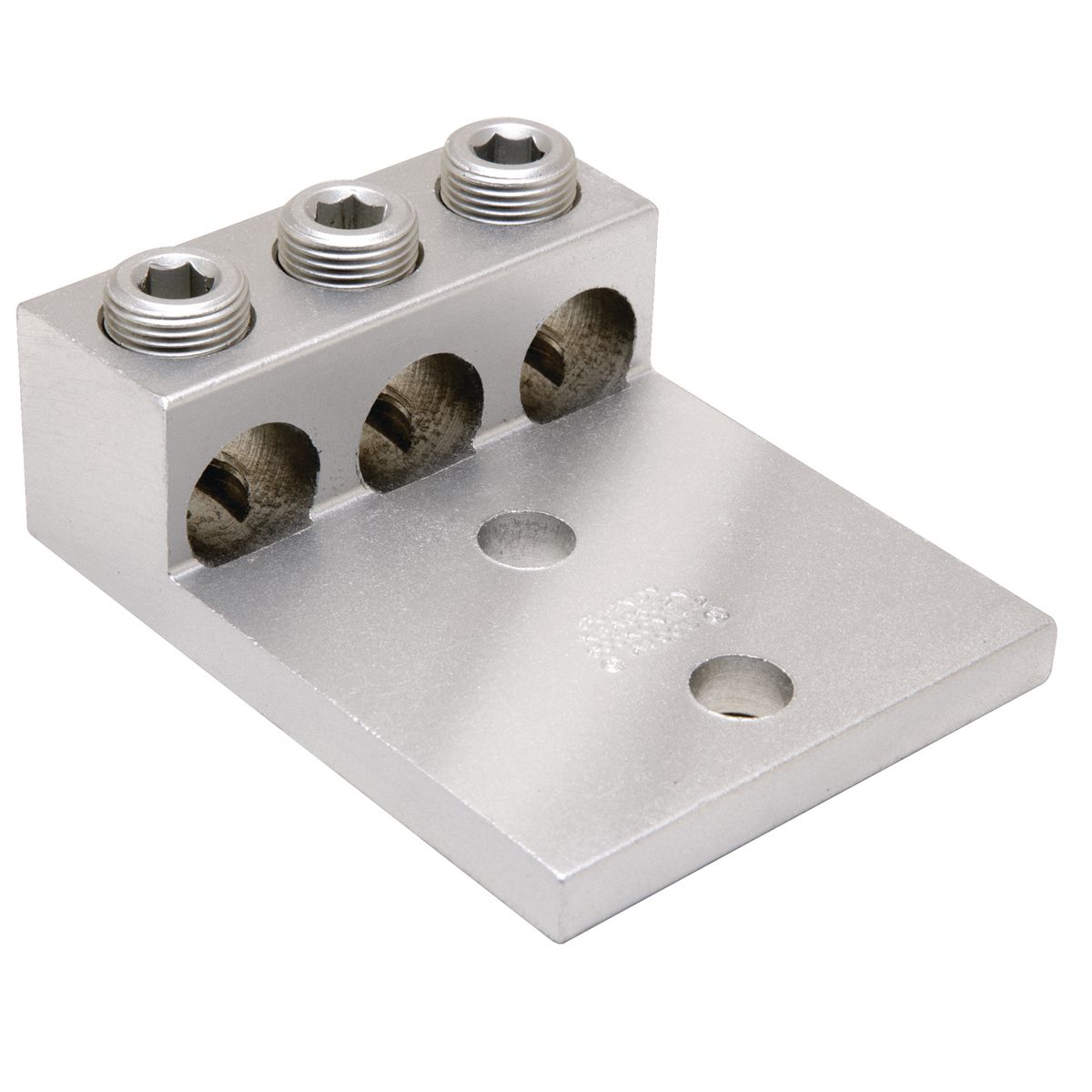

Burndy® K3A27U2N K3A-U Dual Rated Universal Terminal Lug, 6 to 3/0 AWG Copper/Stranded Aluminum Conductor, 1/2 in Stud, Aluminum
Custom_Product_Images_Illustration
Burndy® K3A27U2N K3A-U Dual Rated Universal Terminal Lug, 6 to 3/0 AWG Copper/Stranded Aluminum Conductor, 1/2 in Stud, Aluminum
SKU115291
MFGR #K3A27U2N
$/ea
BURNDY® is The Grounding Superstore. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.
BURNDY® is The Grounding Superstore. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.
Application For Aluminum And Copper Conductors ARRA Compliant C Buy American Compliant C Catalog Number K3A27U2N Country of Origin US Dimensions 3.88 in L x 2.81 in W EU RoHS Indicator N Finish Tin Plated Gross Weight Per Pack 0.5100 lb Gross Weight per Pack Metric 0.21 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.14 in Height [Metric] 2.8956 cm Length 3.88 in Length [Metric] 9.8552 cm Number Of Conductors 3 Number of Conductors|Ports [Main|Primary] 3 Returnable Y Series K3A-U Specifications 1.12 in H x 2.81 in W Collar, Slotted Screw 1-3/4 in Mounting Hole Spacing Standard UL 486A-486B Sub Brand UNIVERSAL TERM Temperature Rating 194 Tongue Size 2.83 in W x 0.31 in THK Tongue Type Straight Type Bolted Lugs & Terminals UNSPSC 39121408 UPC 11 78181037039 UPC 12 781810370391 Width 2.83 in Width [Metric] 7.1882 cm Stock Status NORMALLY STOCKED Brand BURNDY® Manufacturer BURNDY® Conductor Size 6 to 3/0 AWG Conductor Type Copper/Stranded Aluminum Material Aluminum Number of Bolt Holes 3 Stud Size 1/2 in For Aluminum and Copper Conductors Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance 2 studs of 1/2 in NEMA standard stud holes
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Aluminum And Copper Conductors |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | K3A27U2N |
| Country of Origin | US |
| Dimensions | 3.88 in L x 2.81 in W |
| EU RoHS Indicator | N |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.5100 lb |
| Gross Weight per Pack Metric | 0.21 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.14 in |
| Height [Metric] | 2.8956 cm |
| Length | 3.88 in |
| Length [Metric] | 9.8552 cm |
| Number Of Conductors | 3 |
| Number of Conductors|Ports [Main|Primary] | 3 |
| Returnable | Y |
| Series | K3A-U |
| Specifications | 1.12 in H x 2.81 in W Collar, Slotted Screw 1-3/4 in Mounting Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | UNIVERSAL TERM |
| Temperature Rating | 194 |
| Tongue Size | 2.83 in W x 0.31 in THK |
| Tongue Type | Straight |
| Type | Bolted Lugs & Terminals |
| UNSPSC | 39121408 |
| UPC 11 | 78181037039 |
| UPC 12 | 781810370391 |
| Width | 2.83 in |
| Width [Metric] | 7.1882 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 6 to 3/0 AWG |
| Conductor Type | Copper/Stranded Aluminum |
| Material | Aluminum |
| Number of Bolt Holes | 3 |
| Stud Size | 1/2 in |
| For Aluminum and Copper Conductors |
| Universal terminal, Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| Dual-rated three conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance |
| 2 studs of 1/2 in |
| NEMA standard stud holes |
