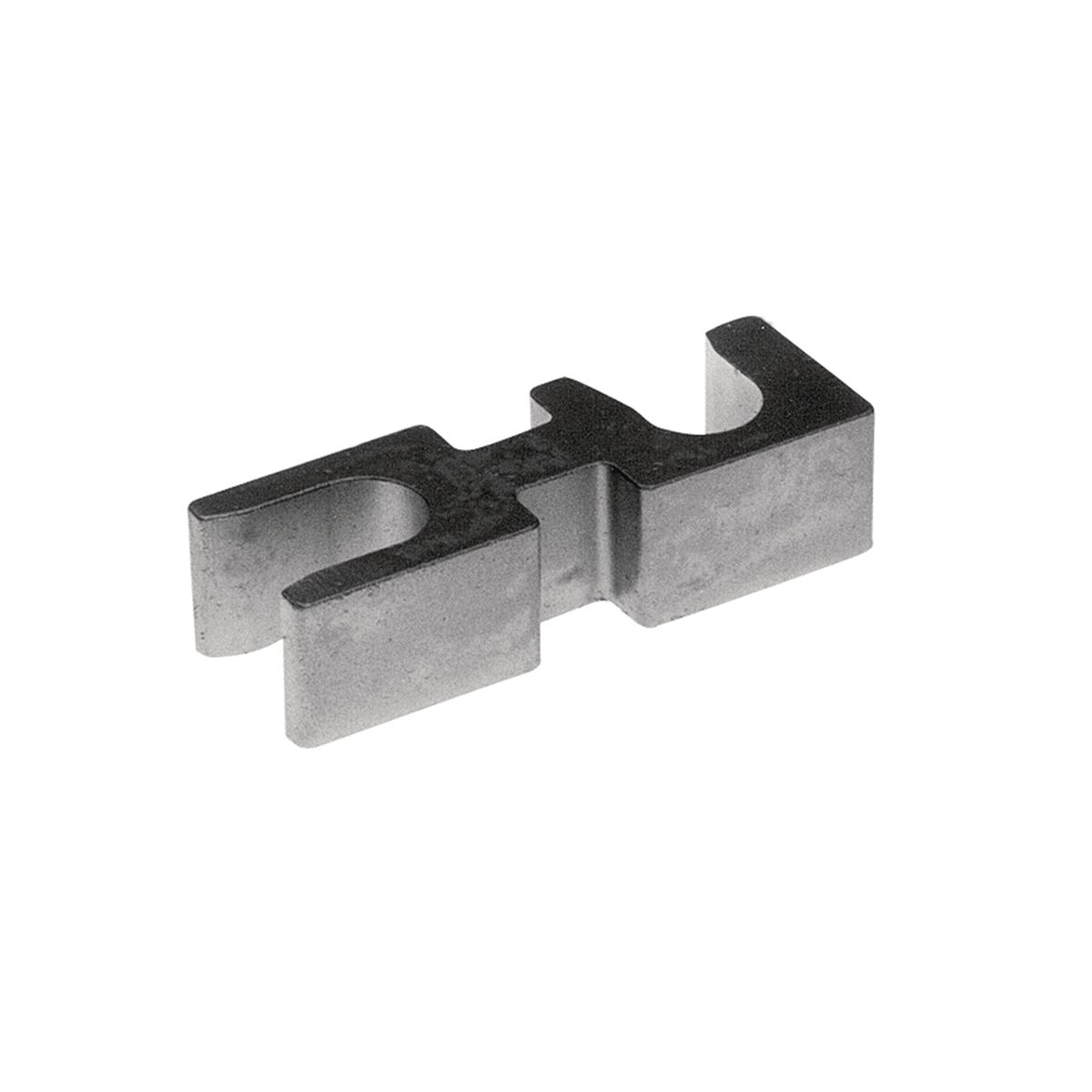

Burndy® Hystack™ ASA800U Terminal Stacking Adapter, 1/0 AWG to 800 kcmil Stranded Conductor, 2 Slots, Aluminum
Compression Terminal Stacking Adapters
85961
MFG #: ASA800U
BURNDY®
18.29000
/ ea
The HYSTACK™ adaptor is specially designed to allow standard terminals to be stacked on two or four hole NEMA transformer or equipment terminal pads. HYSTACK™ is tin-plated, high-conductivity aluminum to provide optimum corrosion resistance. Only three sizes accommodate terminals from 250 mcm through 1000 mcm to help keep costly inventories to a minimum.
- Brochure URL - 10969_0MQ8FIOE54XVYNLK.pdf(Brochure URL)
- Brochure URL - BURNDY_ASA800U_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_792a40ac94cf33bb631a5af585347aae764cc6746e5ef58525eb9f6e5b6b70f7.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd078073-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_23THE7W6JBS8QNFO.pdf(Spec Sheet URL)
- Spec Sheet URL - ASA800U.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd078073-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd078073-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd078073-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Aluminum And Copper Terminals |
| Features: The HYSTACK Adaptor Is Specially Designed To Allow Standard Terminals To Be Stacked On Two Or Four Hole NEMA Transformer Or Equipment Terminal Pads, HYSTACK Is Tin-Plated, High-Conductivity Aluminum To Provide Optimum Corrosion Resistance, Only Three Sizes Accommodate Terminals From 250 MCM Through 1000 MCM To Help Keep Costly Inventories To A Minimum, Width: 1 IN, Height: 1.13 IN |
| Tin plated |
| 480 installation torque |
| 1 in pad width |
| 1/0 AWG to 800 kcmil aluminum 1/0 to 800 kcmil copper |
| Copper stacking adapter |
