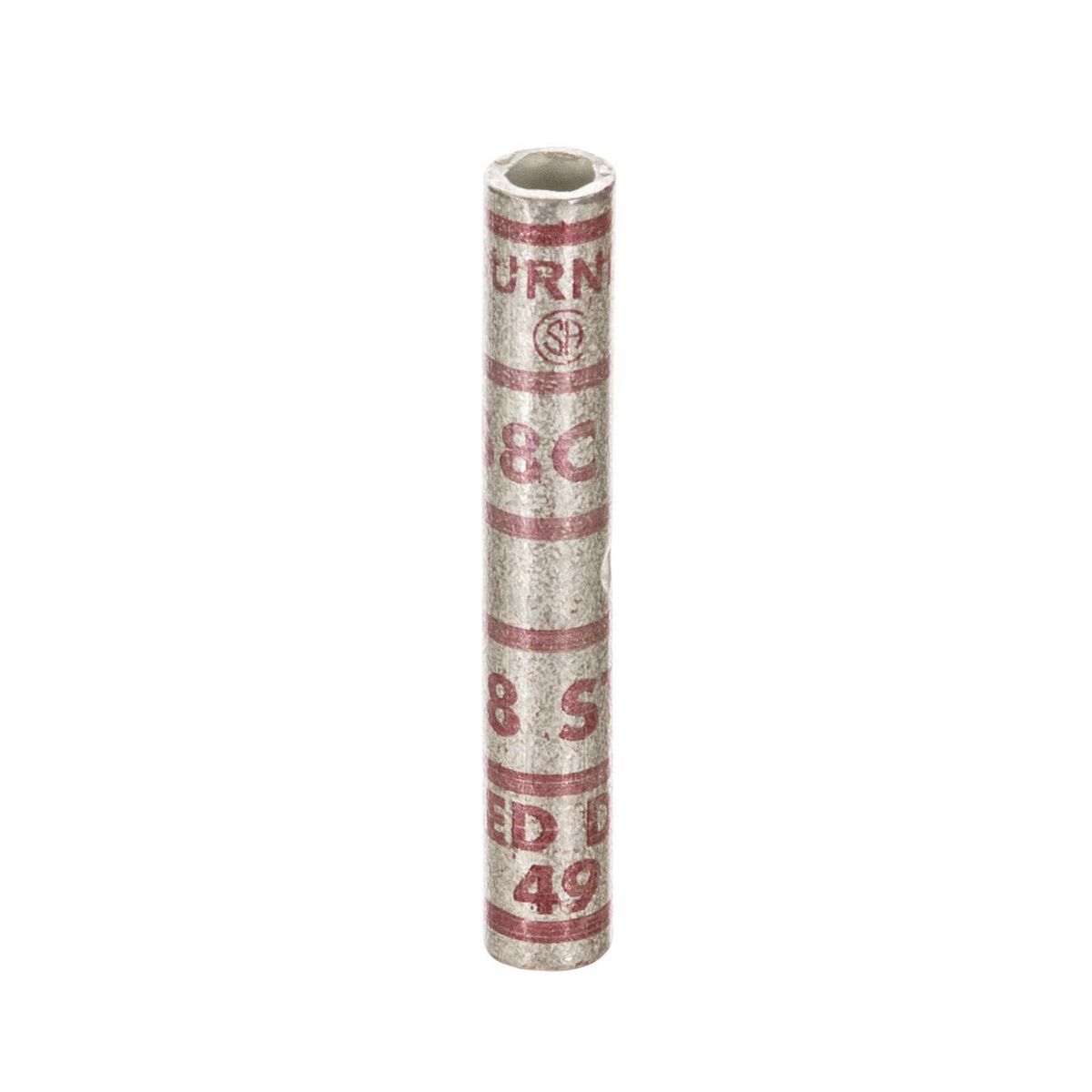

Burndy® Hylink™ YS8C Type YS Compression Splice, 8 AWG Conductor, 1-3/4 in L, Long Barrel, Copper, Red
Butt Splices
19549
MFG #: YS8C
BURNDY®
1.80000
/ ea
BURNDY® Hylink™ Compression Splice, Type YS, Stranded Copper Conductor, 8 AWG Conductor, 1-3/4 in Length, Long Barrel, 600 to 35000 VAC, 7/8 in Wire Strip Length, 90 deg C, Copper, Red, Electro-Plated Tin
- Brochure URL - 10969_IOUGTWM8XES9PD61.pdf(Brochure URL)
- Brochure URL - BURNDY_YS8C_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_e8868242adb033100930ae67ff94b10687fed60d5bebf3664722d4ae2e0755bc.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_LMJ3PVQ7TFBCYRKH.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_T90QYC4UM8RGVN1J.pdf(Spec Sheet URL)
- Spec Sheet URL - YS8C.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SD_007774.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SD_007774.pdf(Tech Drawing URL)
- Tech Drawing URL - SD..007774.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Splice |
| Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Color Code: Red, Oil Stop: No, Tapered End: No, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Die Index: 49 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MRTC Tool, (2), Y2MR Tool, MD7-34R Tool, W8CVT Die, (2), MD6, OUR840 Tool, X8CRT Die, (2), Y35 , Y39, Y750 Tool, U8CRT Die, (2), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 7/8 IN |
| Ideal for 600 V heavy duty applications, also may be used at higher voltages up to 35kV |
| Four center conductor stops provides a center wire stop for proper conductor insertion |
| High pull out force provides added security for much greater mechanical and electrical properties |
| No tapered end |
| Dieless tools (number of crimps)- Y81KFT, Y81KFTMBH, PAT81KFT-18V tool (1), tools, die set catalog number and (number of crimps)- mechanical- Y1MRTC tool (2), Y2MR tool, MD7-34R tool, W8CVT die, (2), MD6, OUR840 tool, X8CRT die, (2), Y35 , Y39, Y750 tool, U8CRT die, (2), Y46 tool, U8CRT die with PUADP-1 adapter (2) |
| Die index - 49 element A |
| Chamfered barrel style |
| 10 sq-mm for class 2 conductor |
| Beveled entry |
