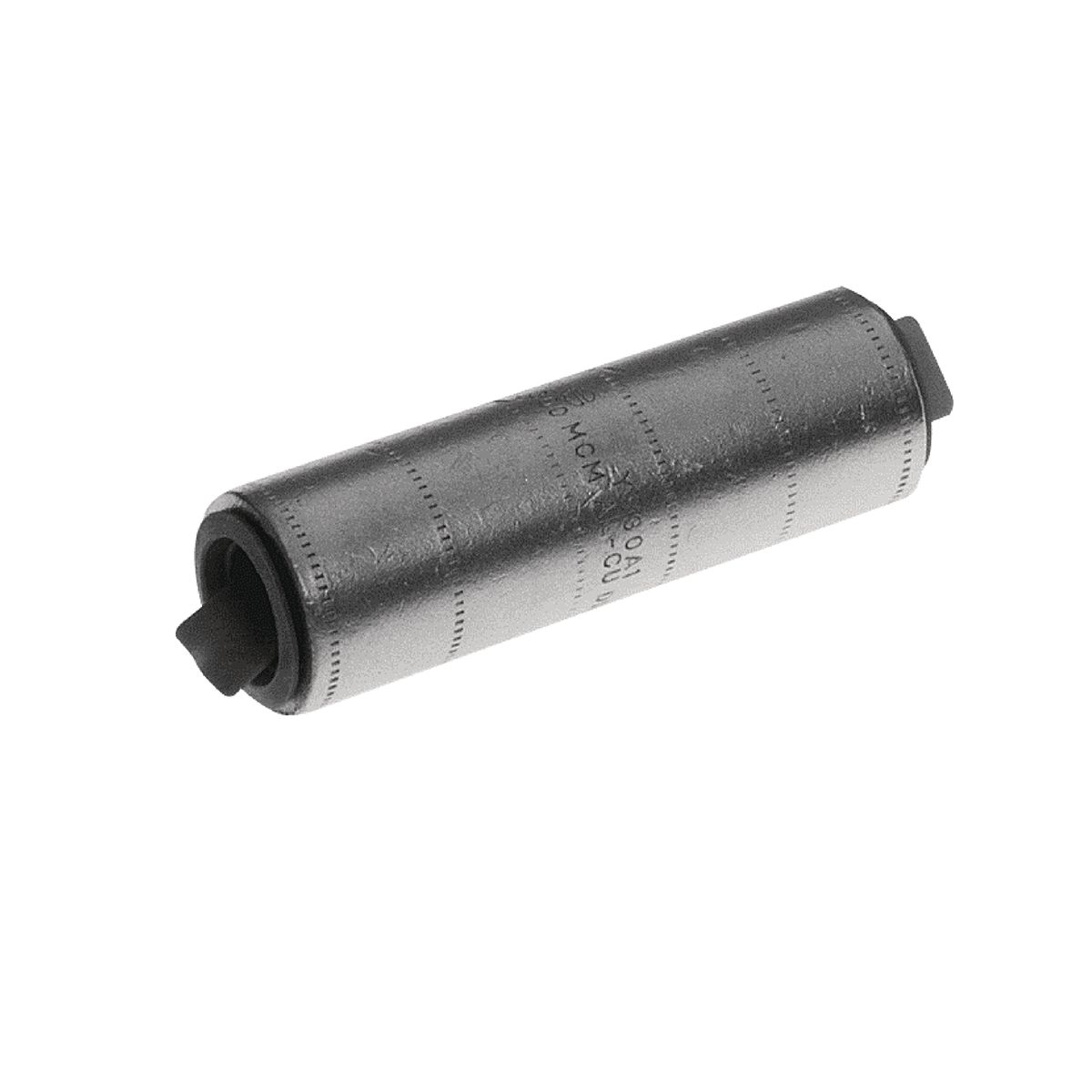

Burndy® Hylink™ YS1CA1 Type YS-A Compression Splice, 1 AWG Conductor, 2.05 in L, Standard Barrel, Aluminum, Gold
Custom_Product_Images_Illustration
Burndy® Hylink™ YS1CA1 Type YS-A Compression Splice, 1 AWG Conductor, 2.05 in L, Standard Barrel, Aluminum, Gold
SKU19644
MFGR #YS1CA1
$/ea
BURNDY® Hylink™ Compression Splice, Type YS-A, Copper/Stranded Aluminum Conductor, 1 AWG Conductor, 2.05 in Length, Standard Barrel, 600 to 35000 VAC, 15/16 in Wire Strip Length, 90 deg C, Aluminum, Gold, Tin Plated
BURNDY® Hylink™ Compression Splice, Type YS-A, Copper/Stranded Aluminum Conductor, 1 AWG Conductor, 2.05 in Length, Standard Barrel, 600 to 35000 VAC, 15/16 in Wire Strip Length, 90 deg C, Aluminum, Gold, Tin Plated
Application Wire Splice ARRA Compliant C Barrel Size 0.9 in Buy American Compliant C Catalog Number YS1CA1 Conductor Type Copper/Stranded Aluminum Country of Origin US EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.54 in Height [Metric] 1.3716 cm Length [Metric] 5.2070 cm Returnable Y Specifications 15/16 in L Wire Strip Standard UL 486A-486B Sub Brand HYLINK Temperature Rating 194 °C Type YS-A, Standard Barrel UNSPSC 39121449 UPC 11 78181075650 UPC 12 781810756508 Voltage Rating 35,000 V Width 0.54 in Width [Metric] 1.3716 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Barrel Type Standard Color Gold Conductor Size 1 AWG Length 2.05 in Material Aluminum Wire Splice Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Color Code: Gold, Dieless Tools (number Of Crimps): Mechanical HYTOOL: MY29-3, MRC840AL Tool, (1), Hydraulic HYPRESS: Y644HS, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 471 Element A, Wire Strip Length: 15/16 IN, Conductor Type: Stranded Aluminum Or Copper, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y75 Tool, U1CART Die, (1), Y46 Tool, U1CART Die With PUADP-1 Adapter, (1) Manufactured from high-conductivity wrought aluminum with heavy duty wall thickness Dieless tools (number of Crimps) mechanical hytool MY29-3, MRC840AL Tool, (1), hydraulic hypress Y644HS, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), die index 471 element A, wire strip length 15/16 IN, conductor type stranded aluminum or Copper, Tools, die set catalog Number, and (number of Crimps) Y35, Y39, Y75 Tool, U1CART Die, (1), Y46 Tool, U1CART die with puadp-1 Adapter, (1) Electro-tin plated provides durable long lasting corrosion resistance Internally beveled barrel provides easy cable entry Solid center stop and prefilled with PENETROX® oxide inhibiting compound provides stop for proper conductor insertion and an aid in forcing the PENETROX® between the individual wire strands Color coded end caps provides easy wire size and die code identification plus prevents foreign materials from entering and contaminating the connector prior to usage Chamfered barrel style Standard barrel configuration Connector is clearly marked with wire size, die index and the proper number and location of crimps provides easy identification and tooling recommendation Provides high-conductivity/low resistance and ductility for an excellent combination of electrical and crimp forming properties
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Splice |
| ARRA Compliant | C |
| Barrel Size | 0.9 in |
| Buy American Compliant | C |
| Catalog Number | YS1CA1 |
| Conductor Type | Copper/Stranded Aluminum |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.54 in |
| Height [Metric] | 1.3716 cm |
| Length [Metric] | 5.2070 cm |
| Returnable | Y |
| Specifications | 15/16 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLINK |
| Temperature Rating | 194 °C |
| Type | YS-A, Standard Barrel |
| UNSPSC | 39121449 |
| UPC 11 | 78181075650 |
| UPC 12 | 781810756508 |
| Voltage Rating | 35,000 V |
| Width | 0.54 in |
| Width [Metric] | 1.3716 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Barrel Type | Standard |
| Color | Gold |
| Conductor Size | 1 AWG |
| Length | 2.05 in |
| Material | Aluminum |
| Wire Splice |
| Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Color Code: Gold, Dieless Tools (number Of Crimps): Mechanical HYTOOL: MY29-3, MRC840AL Tool, (1), Hydraulic HYPRESS: Y644HS, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 471 Element A, Wire Strip Length: 15/16 IN, Conductor Type: Stranded Aluminum Or Copper, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y75 Tool, U1CART Die, (1), Y46 Tool, U1CART Die With PUADP-1 Adapter, (1) |
| Manufactured from high-conductivity wrought aluminum with heavy duty wall thickness |
| Dieless tools (number of Crimps) mechanical hytool MY29-3, MRC840AL Tool, (1), hydraulic hypress Y644HS, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), die index 471 element A, wire strip length 15/16 IN, conductor type stranded aluminum or Copper, Tools, die set catalog Number, and (number of Crimps) Y35, Y39, Y75 Tool, U1CART Die, (1), Y46 Tool, U1CART die with puadp-1 Adapter, (1) |
| Electro-tin plated provides durable long lasting corrosion resistance |
| Internally beveled barrel provides easy cable entry |
| Solid center stop and prefilled with PENETROX® oxide inhibiting compound provides stop for proper conductor insertion and an aid in forcing the PENETROX® between the individual wire strands |
| Color coded end caps provides easy wire size and die code identification plus prevents foreign materials from entering and contaminating the connector prior to usage |
| Chamfered barrel style |
| Standard barrel configuration |
| Connector is clearly marked with wire size, die index and the proper number and location of crimps provides easy identification and tooling recommendation |
| Provides high-conductivity/low resistance and ductility for an excellent combination of electrical and crimp forming properties |
