BURNDY®

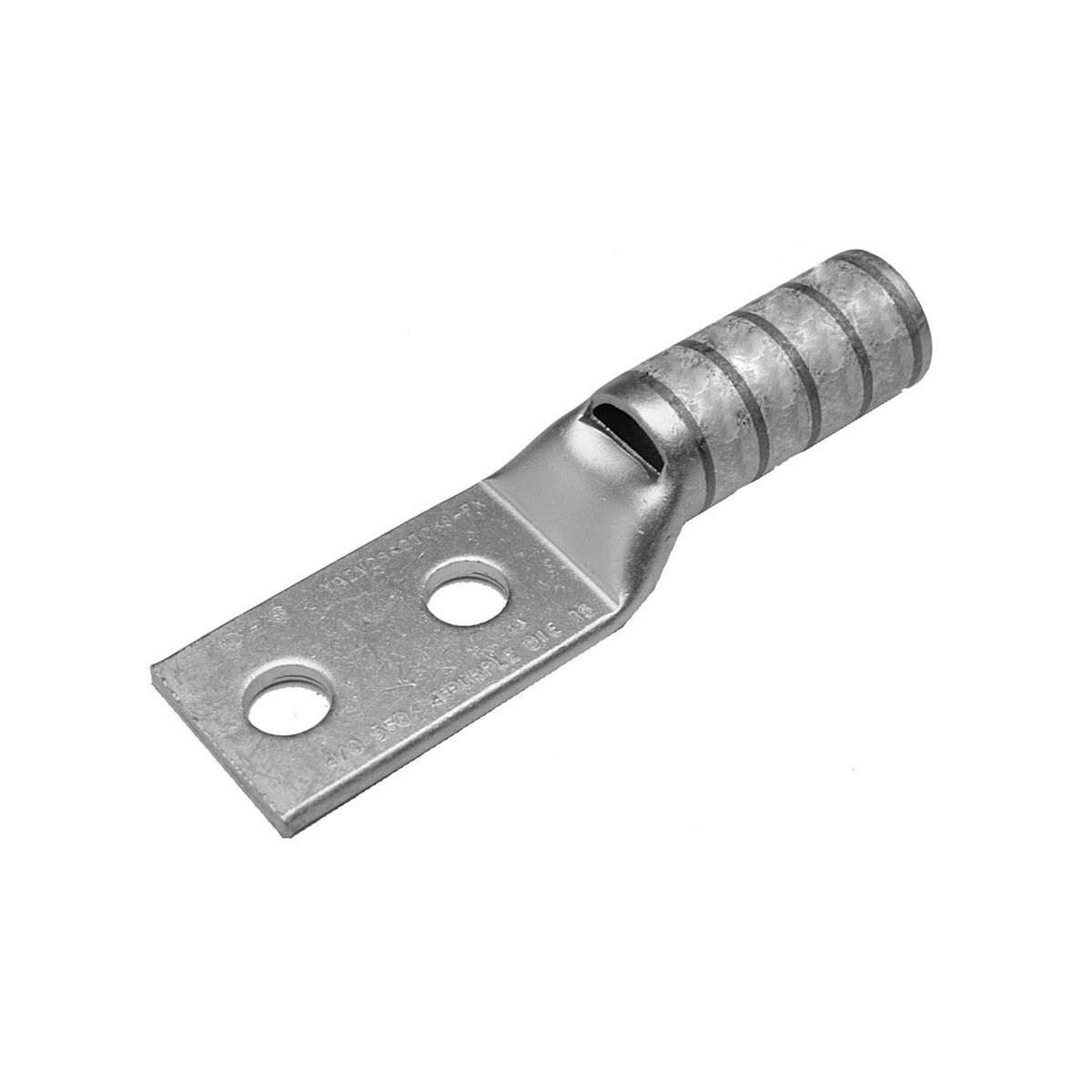

Burndy® HYLUG™ YAZV282TC14FX 2-Hole Compression Terminal With Inspection Window, 4/0 AWG Stranded Copper Conductor
Custom_Product_Images_Illustration
BURNDY®
Burndy® HYLUG™ YAZV282TC14FX 2-Hole Compression Terminal With Inspection Window, 4/0 AWG Stranded Copper Conductor
SKU895338
MFGR #YAZV282TC14FX
Your Cost: $16.05/ea
List: BURNDY® HYLUG™ Compression Terminal, 2-Hole, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 15, 600 to 35000 VAC, 1/4 in Stud, Straight Tongue, 1.14 in W x 0.15 in THK Tongue, 3.4 in Overall Length, Long/Skived, 1-5/8 in Barrel, 1-11/16 in Wire Stripe Length, 1/4 in Mounting Hole, Tin Plated Copper, Purple
BURNDY® HYLUG™ Compression Terminal, 2-Hole, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 15, 600 to 35000 VAC, 1/4 in Stud, Straight Tongue, 1.14 in W x 0.15 in THK Tongue, 3.4 in Overall Length, Long/Skived, 1-5/8 in Barrel, 1-11/16 in Wire Stripe Length, 1/4 in Mounting Hole, Tin Plated Copper, Purple
Application Wire Termination ARRA Compliant C Barrel Size 1-5/8 in L Barrel Type Long/Skived Buy American Compliant C Catalog Number YAZV282TC14FX Color Purple Country of Origin US EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.77 in Height [Metric] 1.9558 cm Length 3.40 in Length [Metric] 8.6360 cm Mounting Hole Size 1/4 in Overall Length 3.4 in Returnable Y Series YAZ-FX Specifications 1-11/16 in L Wire Stripe, 3/4 in Hole Spacing Standard UL 486A-486B Standards CSA Certified, RoHS Compliant, UL Listed Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.14 in W x 0.15 in THK Tongue Type Straight Type Long Barrel, Skive UNSPSC 39121449 UPC 11 78181022856 UPC 12 781810228562 Voltage Rating 35,000 V Width 1.14 in Width [Metric] 2.8956 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4/0 AWG Conductor Type Stranded Copper Die Code 15 Material Copper Stud Size 1/4 in Wire Termination Features: With Inspection Window, Conductor Type: Flexible Copper, Wire Strip Length: 1-11/16 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Color Code: Purple, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (2), Die Index: 15 3/4 in stud hole spacing 4/0 AWG stranded copper cable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1-5/8 in L |
| Barrel Type | Long/Skived |
| Buy American Compliant | C |
| Catalog Number | YAZV282TC14FX |
| Color | Purple |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.77 in |
| Height [Metric] | 1.9558 cm |
| Length | 3.40 in |
| Length [Metric] | 8.6360 cm |
| Mounting Hole Size | 1/4 in |
| Overall Length | 3.4 in |
| Returnable | Y |
| Series | YAZ-FX |
| Specifications | 1-11/16 in L Wire Stripe, 3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.14 in W x 0.15 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Skive |
| UNSPSC | 39121449 |
| UPC 11 | 78181022856 |
| UPC 12 | 781810228562 |
| Voltage Rating | 35,000 V |
| Width | 1.14 in |
| Width [Metric] | 2.8956 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 15 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: With Inspection Window, Conductor Type: Flexible Copper, Wire Strip Length: 1-11/16 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Color Code: Purple, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (2), Die Index: 15 |
| 3/4 in stud hole spacing |
| 4/0 AWG stranded copper cable |
