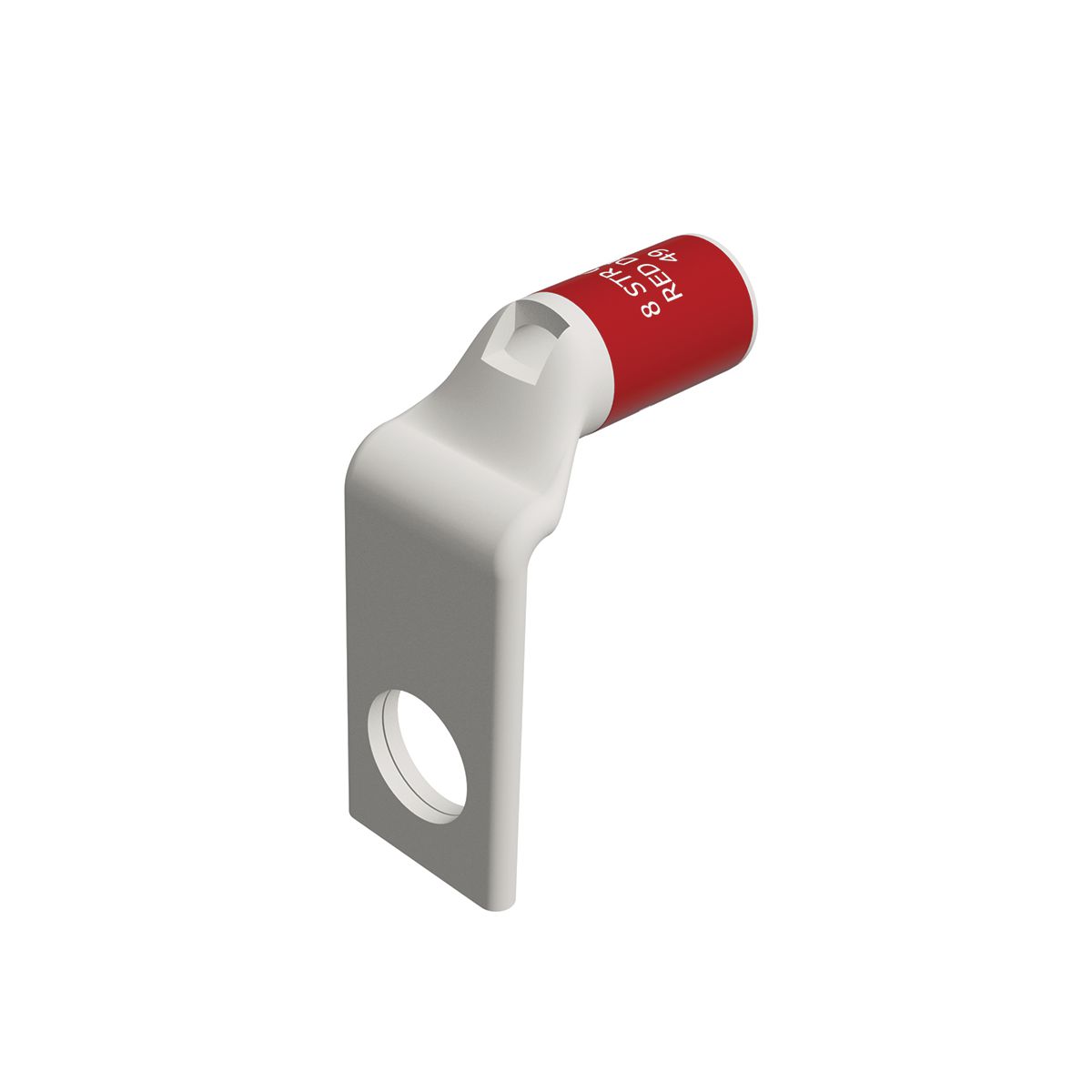

Burndy® HYLUG™ YA8CL90 1-Hole Compression Terminal With Inspection Window, 6 to 8 AWG Solid Copper/Stranded Conductor
Custom_Product_Images_Illustration
Burndy® HYLUG™ YA8CL90 1-Hole Compression Terminal With Inspection Window, 6 to 8 AWG Solid Copper/Stranded Conductor
SKU437413
MFGR #YA8CL90
$/ea
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 6 to 8 AWG Conductor, Die Code: 49, 600 to 35000 VAC, #8/10 Stud, 90 deg Standard Tongue, 0.41 in W x 0.08 in THK Tongue, 0.71 in Overall Length, Chamfered/Standard, 0.44 in Barrel, 7/16 in Wire Stripe Length, 0.2 in Mounting Hole, Tin Electro Plated Copper, Red
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 6 to 8 AWG Conductor, Die Code: 49, 600 to 35000 VAC, #8/10 Stud, 90 deg Standard Tongue, 0.41 in W x 0.08 in THK Tongue, 0.71 in Overall Length, Chamfered/Standard, 0.44 in Barrel, 7/16 in Wire Stripe Length, 0.2 in Mounting Hole, Tin Electro Plated Copper, Red
Application Wire Termination ARRA Compliant C Barrel Size 0.44 in Barrel Type Chamfered/Standard Buy American Compliant C Catalog Number YA8CL90 Color Red Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.27 in Height [Metric] 0.6858 cm Length 1.16 in Length [Metric] 2.9464 cm Mounting Hole Size 0.2 in Overall Length 0.71 in Returnable Y Series YA-L Specifications 7/16 in L Wire Stripe, 1 in Hole Spacing Standard UL 486A-486B Sub Brand TERMINALS, HYLUG Temperature Rating 90 °C Tongue Size 0.41 in W x 0.08 in THK Tongue Type 90 deg Standard Type 1-Hole UNSPSC 39121405 UPC 11 78181001918 UPC 12 781810019184 Voltage Rating 600 VAC to 35 kV Width 0.41 in Width [Metric] 1.0414 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 6 to 8 AWG Conductor Type Stranded/Solid Copper Die Code 49 Material Copper Stud Size #8/#10 Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper, Die Index: 49, Wire Strip Length: 1/2 IN, Tongue Angle: 90 DEG 6 AWG stranded/solid copper cable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.44 in |
| Barrel Type | Chamfered/Standard |
| Buy American Compliant | C |
| Catalog Number | YA8CL90 |
| Color | Red |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.27 in |
| Height [Metric] | 0.6858 cm |
| Length | 1.16 in |
| Length [Metric] | 2.9464 cm |
| Mounting Hole Size | 0.2 in |
| Overall Length | 0.71 in |
| Returnable | Y |
| Series | YA-L |
| Specifications | 7/16 in L Wire Stripe, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | TERMINALS, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.41 in W x 0.08 in THK |
| Tongue Type | 90 deg Standard |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181001918 |
| UPC 12 | 781810019184 |
| Voltage Rating | 600 VAC to 35 kV |
| Width | 0.41 in |
| Width [Metric] | 1.0414 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 6 to 8 AWG |
| Conductor Type | Stranded/Solid Copper |
| Die Code | 49 |
| Material | Copper |
| Stud Size | #8/#10 |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper, Die Index: 49, Wire Strip Length: 1/2 IN, Tongue Angle: 90 DEG |
| 6 AWG stranded/solid copper cable |
