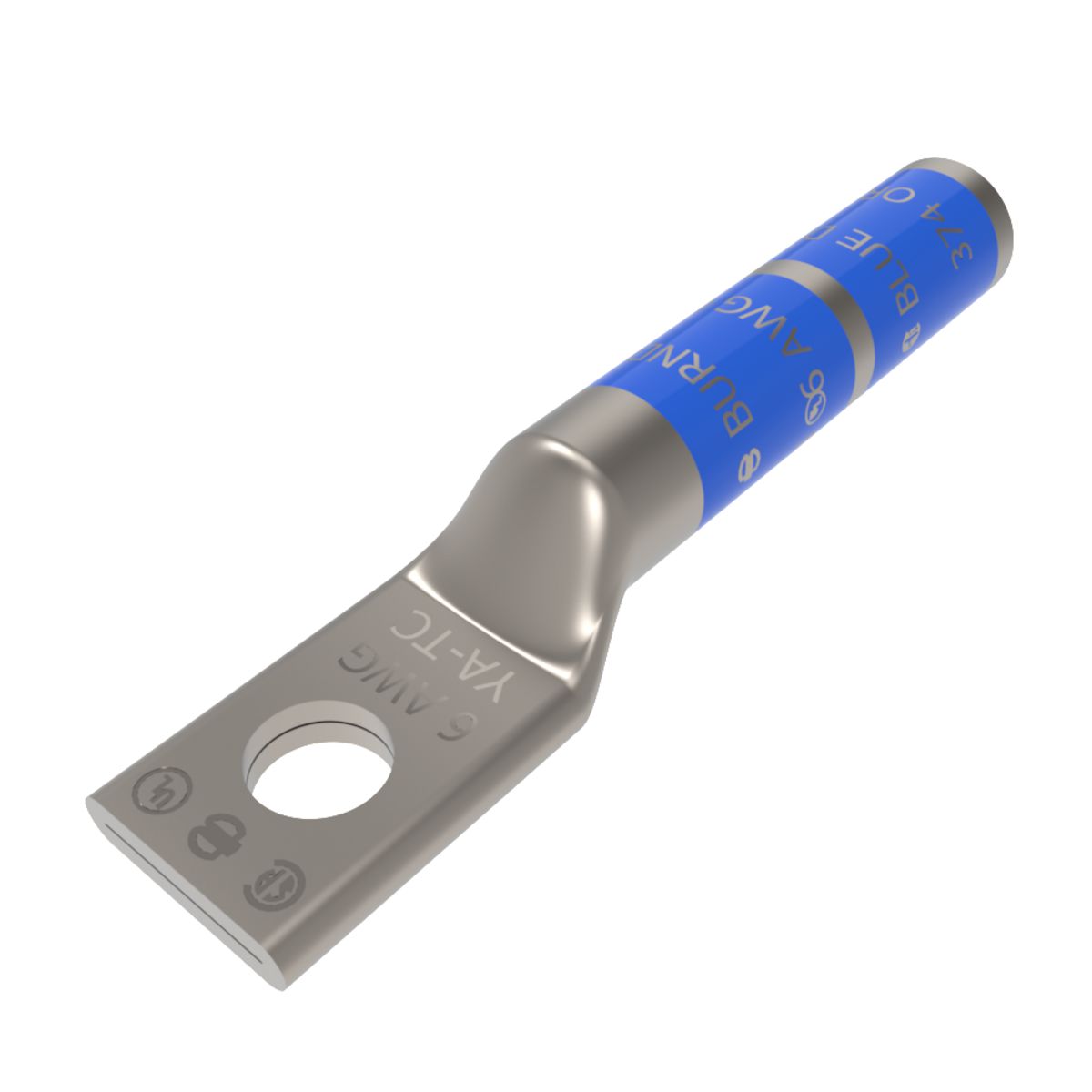

Burndy® HYLUG™ YA6CN 1-Hole Compression Lug, 6 AWG, 1/2 in Stud, 7, Tin Plated Copper
Custom_Product_Images_Illustration
Burndy® HYLUG™ YA6CN 1-Hole Compression Lug, 6 AWG, 1/2 in Stud, 7, Tin Plated Copper
SKU220688
MFGR #YA6CN
$/ea
BURNDY® HYLUG™ Compression Lug, 1-Hole, 6 AWG Conductor, Die Code: 7, 600 to 35000 VAC, 1/2 in Stud, 0.83 in W x 0.12 in THK Tongue, 2.64 in Overall Length, Chamfered, 1.12 in L Barrel, 1 Hole Spacing, Electro-Tin Plated Finish, 1-13/16 in Wire Stripe Length, 90 deg C, Tin Plated Copper, Blue
BURNDY® HYLUG™ Compression Lug, 1-Hole, 6 AWG Conductor, Die Code: 7, 600 to 35000 VAC, 1/2 in Stud, 0.83 in W x 0.12 in THK Tongue, 2.64 in Overall Length, Chamfered, 1.12 in L Barrel, 1 Hole Spacing, Electro-Tin Plated Finish, 1-13/16 in Wire Stripe Length, 90 deg C, Tin Plated Copper, Blue
Application Wire Termination ARRA Compliant C Barrel Size 1.12 in L Barrel Type Chamfered Buy American Compliant C Catalog Number YA6CN Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.29 in Height [Metric] 0.7366 cm Length 2.64 in Length [Metric] 6.7056 cm Overall Length 2.64 in Returnable Y Specifications 1 Hole Spacing, Electro-Tin Plated Finish, 1-13/16 in L Wire Stripe Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.83 in W x 0.12 in THK Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181010524 UPC 12 781810105245 Voltage Rating 35,000 V Width 0.83 in Width [Metric] 2.1082 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 6 AWG Die Code 7 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-3/16 IN, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (2), Y35, Y39, Y750, PAT750 Tool, U5CRT, U8CABT Die, (2), Y46 Tool, U5CRT, U8CABT Die With PUADP-1 Adapter, (2), Color Code: Blue, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y1MRTC, MY29-3, MY29-11, MRC840 Tool, (2), Die Index: 7 Straight tongue angle 1-3/16 in L wire strip Long barrel Tin plated to inhibit corrosion Inspection window to visually assure full conductor insertion
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.12 in L |
| Barrel Type | Chamfered |
| Buy American Compliant | C |
| Catalog Number | YA6CN |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.29 in |
| Height [Metric] | 0.7366 cm |
| Length | 2.64 in |
| Length [Metric] | 6.7056 cm |
| Overall Length | 2.64 in |
| Returnable | Y |
| Specifications | 1 Hole Spacing, Electro-Tin Plated Finish, 1-13/16 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.83 in W x 0.12 in THK |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181010524 |
| UPC 12 | 781810105245 |
| Voltage Rating | 35,000 V |
| Width | 0.83 in |
| Width [Metric] | 2.1082 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 6 AWG |
| Die Code | 7 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 1-3/16 IN, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (2), Y35, Y39, Y750, PAT750 Tool, U5CRT, U8CABT Die, (2), Y46 Tool, U5CRT, U8CABT Die With PUADP-1 Adapter, (2), Color Code: Blue, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y1MRTC, MY29-3, MY29-11, MRC840 Tool, (2), Die Index: 7 |
| Straight tongue angle |
| 1-3/16 in L wire strip |
| Long barrel |
| Tin plated to inhibit corrosion |
| Inspection window to visually assure full conductor insertion |
