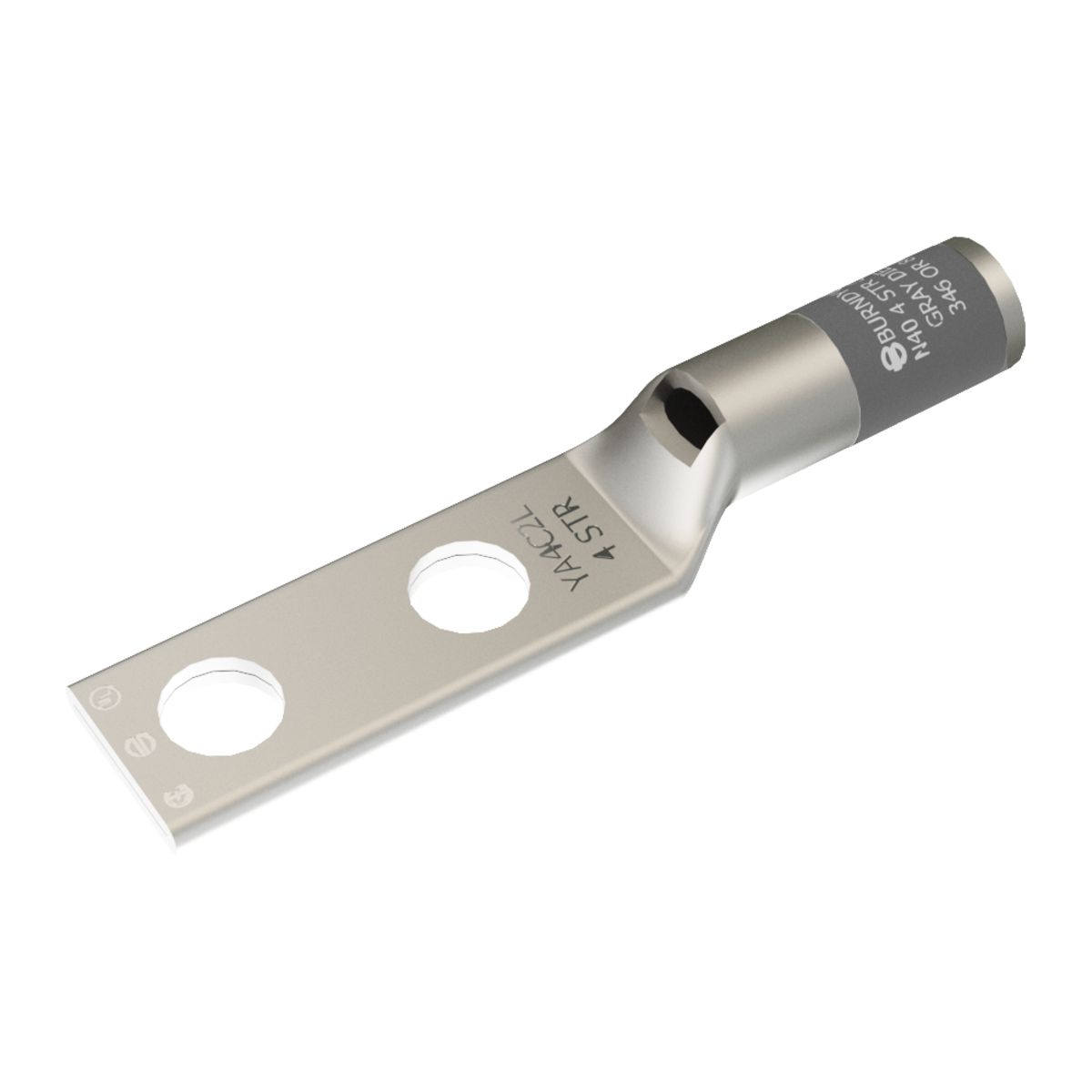

Burndy® HYLUG™ YA4CL2TC14E1 2-Hole Compression Connector With Inspection Window, 4 AWG Stranded Copper Conductor
Custom_Product_Images_Illustration
Burndy® HYLUG™ YA4CL2TC14E1 2-Hole Compression Connector With Inspection Window, 4 AWG Stranded Copper Conductor
SKU934002
MFGR #YA4CL2TC14E1
$/ea
BURNDY® HYLUG™ Compression Connector, 2-Hole, Stranded Copper Conductor, 4 AWG Conductor, Die Code: 8346, 600 to 35000 VAC, 1/4 in Stud, Straight Tongue, 1/2 in W x 3/32 in THK Tongue, 2.74 in Overall Length, Chamfered/Standard/Skived, 13/16 in Barrel, 7/8 in Wire Stripe Length, 1/4 in Mounting Hole, Tin Electro Plated Copper, Gray
BURNDY® HYLUG™ Compression Connector, 2-Hole, Stranded Copper Conductor, 4 AWG Conductor, Die Code: 8346, 600 to 35000 VAC, 1/4 in Stud, Straight Tongue, 1/2 in W x 3/32 in THK Tongue, 2.74 in Overall Length, Chamfered/Standard/Skived, 13/16 in Barrel, 7/8 in Wire Stripe Length, 1/4 in Mounting Hole, Tin Electro Plated Copper, Gray
Application Wire Termination ARRA Compliant C Barrel Size 13/16 in L Barrel Type Chamfered/Skived/Standard Buy American Compliant C Catalog Number YA4CL2TC14E1 Color Gray Color Code Gray Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.34 in Height [Metric] 0.8636 cm Length 2.74 in Length [Metric] 6.9596 cm Mounting Hole Size 1/4 in Overall Length 2.74 in Returnable Y Series YA-L-2TC Specifications 7/8 in L Wire Stripe, 1-1/2 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1/2 in W x 3/32 in THK Tongue Type Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001964 UPC 12 781810019641 Voltage Rating 35,000 V Width 0.50 in Width [Metric] 1.2700 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4 AWG Conductor Type Stranded Copper Die Code 8346 Material Copper Stud Size 1/4 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 7/8 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Die Index: 8, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 13/16 in L |
| Barrel Type | Chamfered/Skived/Standard |
| Buy American Compliant | C |
| Catalog Number | YA4CL2TC14E1 |
| Color | Gray |
| Color Code | Gray |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.34 in |
| Height [Metric] | 0.8636 cm |
| Length | 2.74 in |
| Length [Metric] | 6.9596 cm |
| Mounting Hole Size | 1/4 in |
| Overall Length | 2.74 in |
| Returnable | Y |
| Series | YA-L-2TC |
| Specifications | 7/8 in L Wire Stripe, 1-1/2 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1/2 in W x 3/32 in THK |
| Tongue Type | Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001964 |
| UPC 12 | 781810019641 |
| Voltage Rating | 35,000 V |
| Width | 0.50 in |
| Width [Metric] | 1.2700 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 8346 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 7/8 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Die Index: 8, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) |
