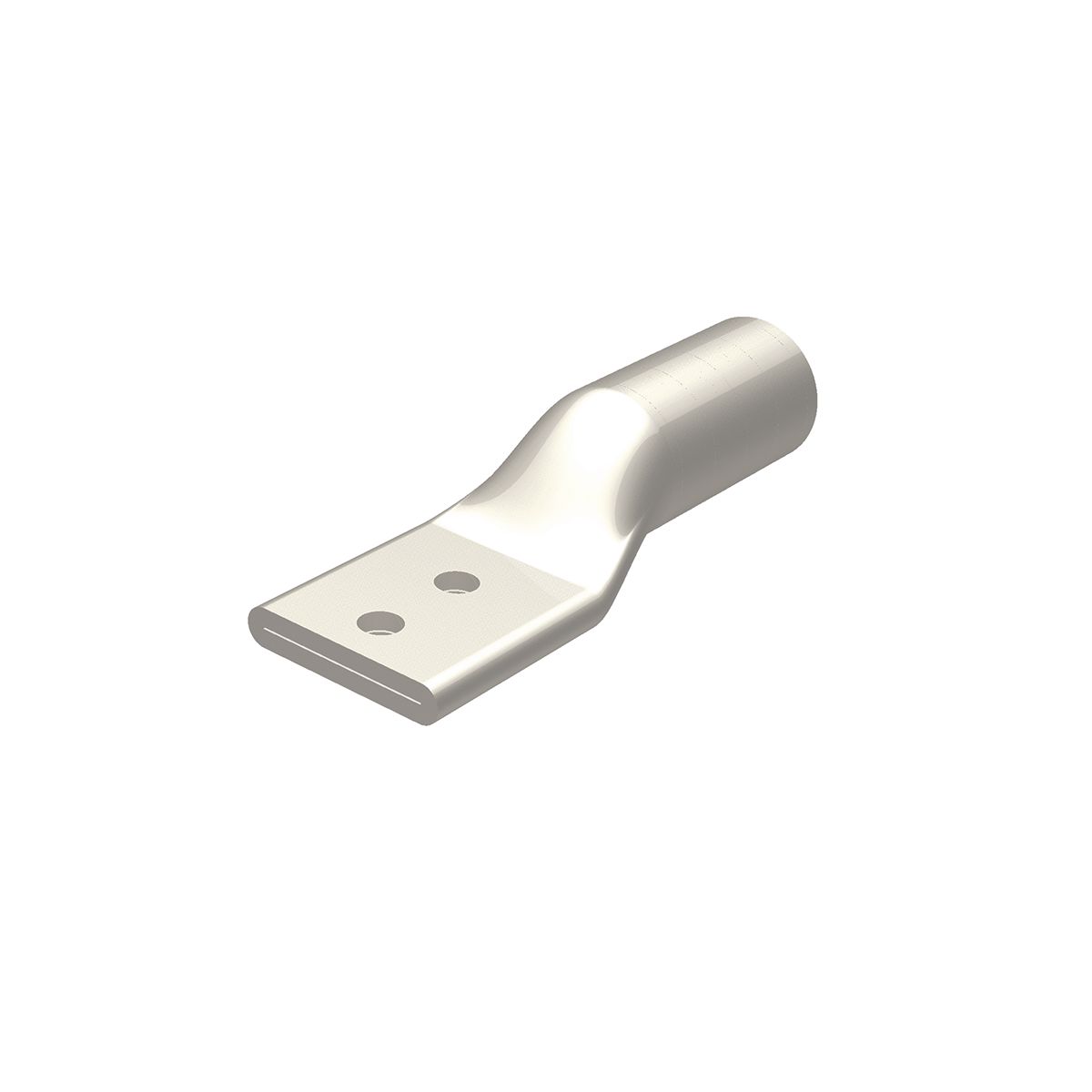

Burndy® HYLUG™ YA42A5 2-Hole Compression Connector, 900 kcmil, 1/2 in Stud, 303, Tin Electro Plated Aluminum
Lug Compression Connectors
776578
MFG #: YA42A5
BURNDY®
160.20000
/ ea
BURNDY® HYLUG™ Compression Connector, 2-Hole, 900 kcmil Conductor, Die Code: 303, 1/2 in Stud, Standard/Straight Tongue, 1.62 in W x 0.39 in THK Tongue, 7.09 in Overall Length, 2-7/8 in Wire Stripe Length, Tin Electro Plated Aluminum, Gray
- Brochure URL - 10969_ID-SPE-v1-YA42A5.pdf(Brochure URL)
- Brochure URL - BURNDY_YA42A5_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b3a45cf04859f2255126edbd4c75b3a8fee824126f665ac9235c7f31c9c33bbe.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_XZMWISK35NQ1TEHO.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Aluminum Installation Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_JCGH6Z7DKRB38ONU.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_XWSL1BKVA6MN42QH.pdf(Spec Sheet URL)
- Spec Sheet URL - YA42A5.pdf(Spec Sheet URL)
- Tech Drawing URL - SD..073935-01.pdf(Tech Drawing URL)
- Tech Drawing URL - SD.073935-01.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight |
