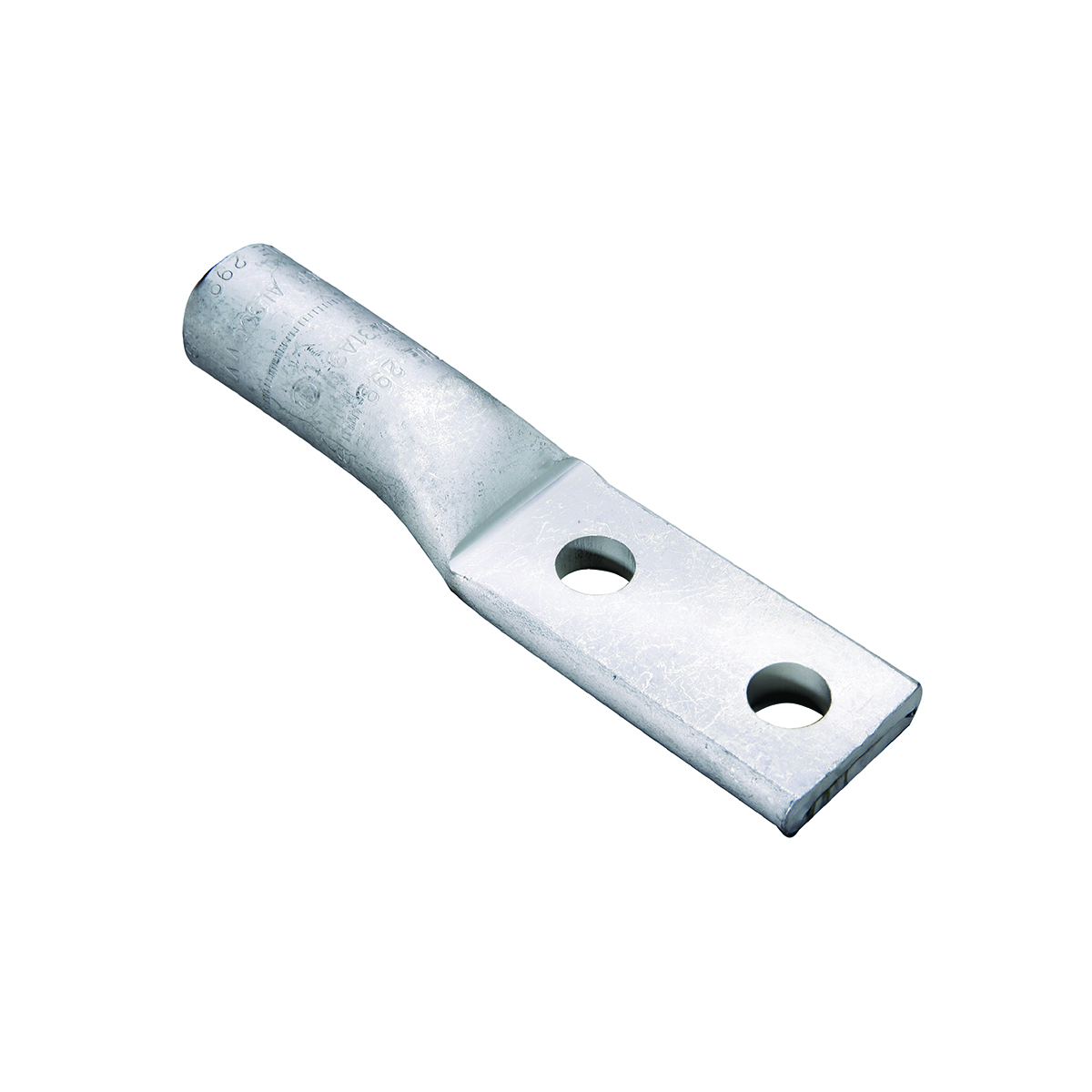

Burndy® HYLUG™ YA36A3 2-Hole Non-Insulated Compression Lug Without Inspection Window, 600 kcmil, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® HYLUG™ YA36A3 2-Hole Non-Insulated Compression Lug Without Inspection Window, 600 kcmil, 1/2 in Stud
SKU86076
MFGR #YA36A3
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY's oxide inhibiting compound.
Application Wire Termination ARRA Compliant C Barrel Size 2.47 in L Barrel Type Beveled Buy American Compliant C Catalog Number YA36A3 Color Black Color Code Black Country of Origin MX EU RoHS Indicator Y Gross Weight Per Pack 0.6848 lb Gross Weight per Pack Metric 0.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.44 in Height [Metric] 3.6576 cm Length 7.09 in Length [Metric] 18.0086 cm Overall Length 7.09 in Returnable Y Series YA36A3 Specifications 2-7/8 in L Wire Strip Standard UL 486A-486B Sub Brand Terminals, HYLUG Temperature Rating 90 °C Tongue Size 3.15 in L x 1.62 in W x 0.52 in THK Tongue Type Standard Straight Type YA36A3 UNSPSC 39121405 UPC 11 78181076125 UPC 12 781810761250 Voltage Rating 35,000 V Width 1.62 in Width [Metric] 4.1148 cm Stock Status NORMALLY STOCKED Brand BURNDY® Manufacturer BURNDY® Conductor Size 600 kcmil Conductor Type Stranded Aluminum/Copper Die Code 473 Material Aluminum Stud Size 1/2 in Wire Termination UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness Electro tin plated, provides durable long lasting corrosion resistance Internally beveled barrel, provides easy cable insertion Provides a quality electrical dual connection Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from NO 12 sol Pads inhibit connector rotation and increase area contact Designed for heavy duty applications to 35KV YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps The aluminum HYLUG017 terminals are designed for a permanent trouble-free electrical termination Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection Color coded end caps inserted in barrel end Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads Used for Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers 1.75 in hole center to center distance, 0.63 in hole center to end, 0.77 in hole center to barrel Without inspection window 2-7/8 in L Strip, 1.75 in Hole Center to Center Distance, 0.63 in Hole Center to End, 0.77 in Hole Center to Barre
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 2.47 in L |
| Barrel Type | Beveled |
| Buy American Compliant | C |
| Catalog Number | YA36A3 |
| Color | Black |
| Color Code | Black |
| Country of Origin | MX |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.6848 lb |
| Gross Weight per Pack Metric | 0.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.44 in |
| Height [Metric] | 3.6576 cm |
| Length | 7.09 in |
| Length [Metric] | 18.0086 cm |
| Overall Length | 7.09 in |
| Returnable | Y |
| Series | YA36A3 |
| Specifications | 2-7/8 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | Terminals, HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 3.15 in L x 1.62 in W x 0.52 in THK |
| Tongue Type | Standard Straight |
| Type | YA36A3 |
| UNSPSC | 39121405 |
| UPC 11 | 78181076125 |
| UPC 12 | 781810761250 |
| Voltage Rating | 35,000 V |
| Width | 1.62 in |
| Width [Metric] | 4.1148 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 600 kcmil |
| Conductor Type | Stranded Aluminum/Copper |
| Die Code | 473 |
| Material | Aluminum |
| Stud Size | 1/2 in |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight |
| Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
| Electro tin plated, provides durable long lasting corrosion resistance |
| Internally beveled barrel, provides easy cable insertion |
| Provides a quality electrical dual connection |
| Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
| Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from NO 12 sol |
| Pads inhibit connector rotation and increase area contact |
| Designed for heavy duty applications to 35KV |
| YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps |
| The aluminum HYLUG017 terminals are designed for a permanent trouble-free electrical termination |
| Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
| Color coded end caps inserted in barrel end |
| Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
| These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads |
| Used for Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers |
| 1.75 in hole center to center distance, 0.63 in hole center to end, 0.77 in hole center to barrel |
| Without inspection window |
| 2-7/8 in L Strip, 1.75 in Hole Center to Center Distance, 0.63 in Hole Center to End, 0.77 in Hole Center to Barre |
