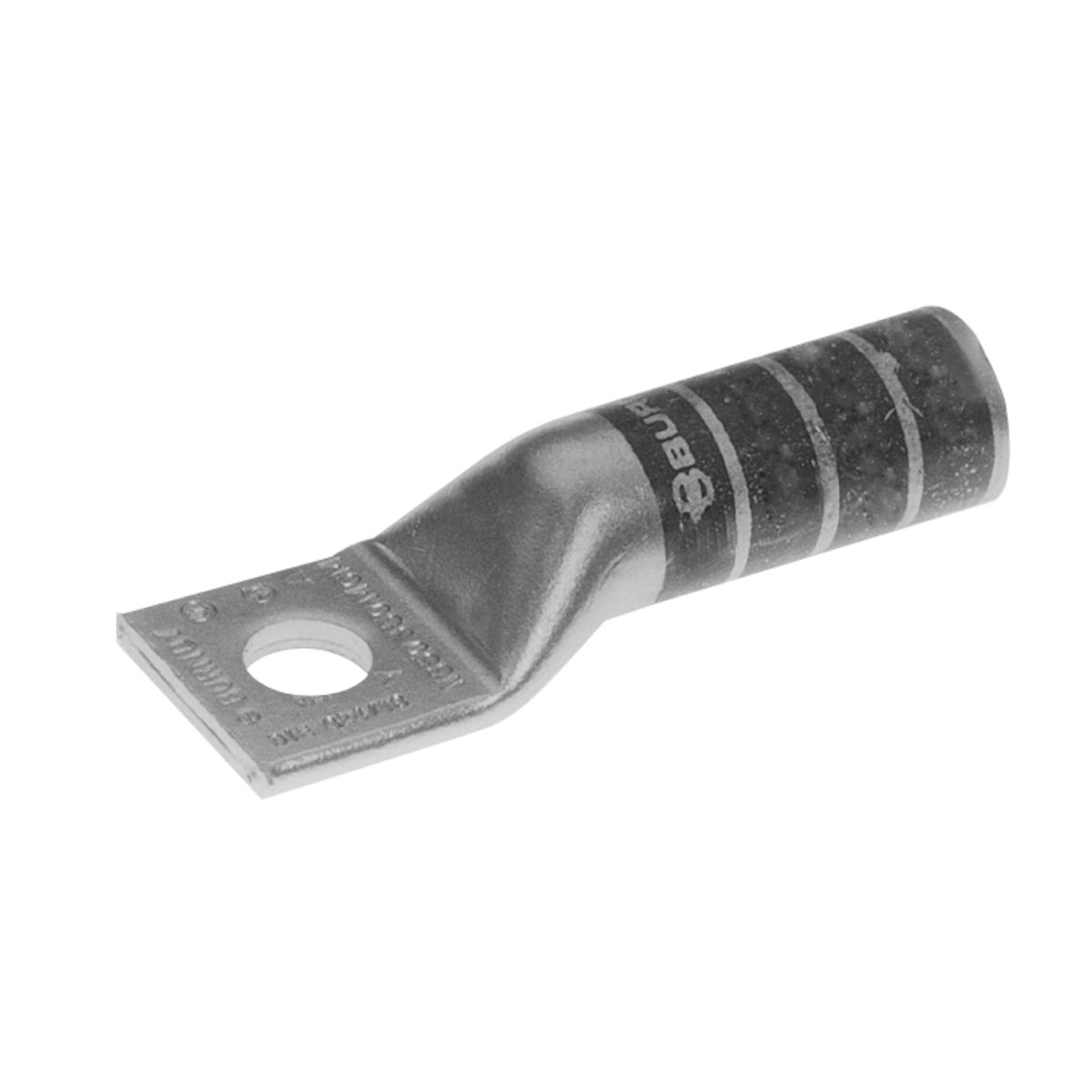

Burndy® HYLUG™ YA2CT6 1-Hole Compression Terminal, 2 AWG Solid Copper/Stranded Conductor, 1/2 in Stud
Custom_Product_Images_Illustration
Burndy® HYLUG™ YA2CT6 1-Hole Compression Terminal, 2 AWG Solid Copper/Stranded Conductor, 1/2 in Stud
SKU924176
MFGR #YA2CT6
$/ea
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 2 AWG Conductor, Die Code: 10, 1/2 in Stud, Straight Tongue, 0.81 in W x 0.08 in THK Tongue, 2.74 in Overall Length, Chamfered/Long, 1-1/4 in Barrel, 1-5/16 in Wire Stripe Length, 1/2 in Mounting Hole, Tin Plated Copper, Brown
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 2 AWG Conductor, Die Code: 10, 1/2 in Stud, Straight Tongue, 0.81 in W x 0.08 in THK Tongue, 2.74 in Overall Length, Chamfered/Long, 1-1/4 in Barrel, 1-5/16 in Wire Stripe Length, 1/2 in Mounting Hole, Tin Plated Copper, Brown
Application Wire Termination ARRA Compliant C Barrel Size 1-1/4 in L Barrel Type Chamfered/Long Bolt Size 0.5 Buy American Compliant C Catalog Number YA2CT6 Color Brown Country of Origin US EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.42 in Height [Metric] 1.0668 cm Length 2.74 in Length [Metric] 6.9596 cm Mounting Hole Size 1/2 in Overall Length 2.74 in Returnable Y Series YA Series Specifications 1-5/16 in L Wire Stripe, 1-3/4 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 194 Tongue Size 0.81 in W x 0.08 in THK Tongue Type Straight Type Terminal UNSPSC 39121448 UPC 11 78181001795 UPC 12 781810017951 Voltage Rating 35,000 V Width 0.81 in Width [Metric] 2.0574 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2 AWG Conductor Type CODE Die Code 10 Material Copper Stud Size 1/2 in Wire Termination Features: Compression Terminal, Tongue Angle: Straight, Finish: Tin Plated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1-1/4 in L |
| Barrel Type | Chamfered/Long |
| Bolt Size | 0.5 |
| Buy American Compliant | C |
| Catalog Number | YA2CT6 |
| Color | Brown |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.42 in |
| Height [Metric] | 1.0668 cm |
| Length | 2.74 in |
| Length [Metric] | 6.9596 cm |
| Mounting Hole Size | 1/2 in |
| Overall Length | 2.74 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 1-5/16 in L Wire Stripe, 1-3/4 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 194 |
| Tongue Size | 0.81 in W x 0.08 in THK |
| Tongue Type | Straight |
| Type | Terminal |
| UNSPSC | 39121448 |
| UPC 11 | 78181001795 |
| UPC 12 | 781810017951 |
| Voltage Rating | 35,000 V |
| Width | 0.81 in |
| Width [Metric] | 2.0574 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2 AWG |
| Conductor Type | CODE |
| Die Code | 10 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: Compression Terminal, Tongue Angle: Straight, Finish: Tin Plated |
