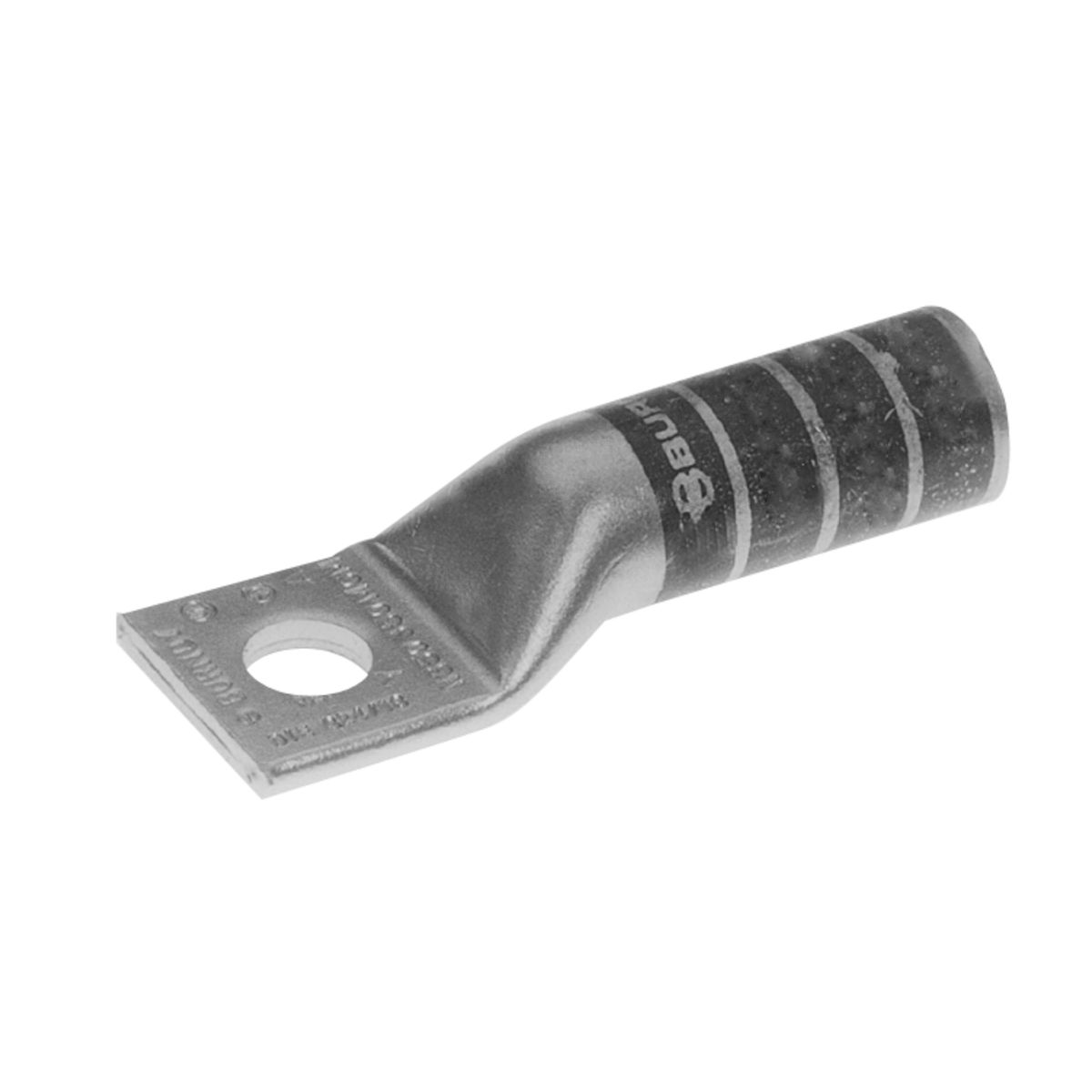

Burndy® HYLUG™ YA2CT4 1-Hole Compression Terminal, 2 AWG Solid Copper/Stranded Conductor, 3/8 in Stud
Custom_Product_Images_Illustration
Burndy® HYLUG™ YA2CT4 1-Hole Compression Terminal, 2 AWG Solid Copper/Stranded Conductor, 3/8 in Stud
SKU914615
MFGR #YA2CT4
$/ea
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 2 AWG Conductor, Die Code: 10, 3/8 in Stud, Straight Tongue, 0.66 in W x 0.11 in THK Tongue, 2.43 in Overall Length, Chamfered/Long, 1-1/4 in Barrel, 1-5/16 in Wire Stripe Length, 3/8 in Mounting Hole, Tin Plated Copper, Brown
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 2 AWG Conductor, Die Code: 10, 3/8 in Stud, Straight Tongue, 0.66 in W x 0.11 in THK Tongue, 2.43 in Overall Length, Chamfered/Long, 1-1/4 in Barrel, 1-5/16 in Wire Stripe Length, 3/8 in Mounting Hole, Tin Plated Copper, Brown
Application Wire Termination ARRA Compliant C Barrel Size 1-1/4 in L Barrel Type Chamfered/Long Bolt Size 0.38 Buy American Compliant C Catalog Number YA2CT4 Color Brown Country of Origin US EU RoHS Indicator Y Finish Tin-Plated Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.42 in Height [Metric] 1.0668 cm Length 2.43 in Length [Metric] 6.1722 cm Mounting Hole Size 3/8 in Overall Length 2.43 in Returnable Y Series YA Series Specifications 1-5/16 in L Wire Stripe, 1.31 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 194 °C Tongue Size 0.66 in W x 0.11 in THK Tongue Type Straight Type Terminal UNSPSC 39121448 UPC 11 78181001796 UPC 12 781810017968 Voltage Rating 35,000 V Width 0.66 in Width [Metric] 1.6764 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2 AWG Conductor Type CODE Die Code 10 Material Copper Stud Size 3/8 in Wire Termination Features: Compression Terminal, Tongue Angle: Straight, Finish: Tin Plated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1-1/4 in L |
| Barrel Type | Chamfered/Long |
| Bolt Size | 0.38 |
| Buy American Compliant | C |
| Catalog Number | YA2CT4 |
| Color | Brown |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tin-Plated |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.42 in |
| Height [Metric] | 1.0668 cm |
| Length | 2.43 in |
| Length [Metric] | 6.1722 cm |
| Mounting Hole Size | 3/8 in |
| Overall Length | 2.43 in |
| Returnable | Y |
| Series | YA Series |
| Specifications | 1-5/16 in L Wire Stripe, 1.31 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 194 °C |
| Tongue Size | 0.66 in W x 0.11 in THK |
| Tongue Type | Straight |
| Type | Terminal |
| UNSPSC | 39121448 |
| UPC 11 | 78181001796 |
| UPC 12 | 781810017968 |
| Voltage Rating | 35,000 V |
| Width | 0.66 in |
| Width [Metric] | 1.6764 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2 AWG |
| Conductor Type | CODE |
| Die Code | 10 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: Compression Terminal, Tongue Angle: Straight, Finish: Tin Plated |
