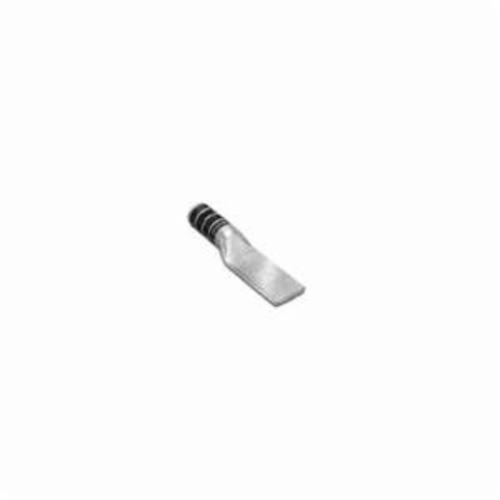

Burndy® HYLUG™ YA272NU Blank Tongue Compression Lug, 3/0 AWG Stranded Copper Conductor, 1/4 in Stud, 14, Copper
Burndy® HYLUG™ YA272NU Blank Tongue Compression Lug, 3/0 AWG Stranded Copper Conductor, 1/4 in Stud, 14, Copper
SKU933991
MFGR #YA272NU
$/ea
The Blank Tongue line of Copper Code HYLUG™ terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA certification.
The Blank Tongue line of Copper Code HYLUG™ terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA certification.
Barrel Size Long Barrel Type Chamfered Catalog Number YA272NU Color Orange Country of Origin US Gross Weight Per Pack 0.1700 lb Overall Length 5.01 in Specifications 1-9/16 in L Wire Stripe Standards UL Listed, CSA Certified, RoHS Compliant Temperature Rating 90 °C Tongue Size 0.91 in W x 0.13 in THK Tongue Type Straight Type Blank Tongue UNSPSC 39121405 UPC 11 78181050325 UPC 12 781810503256 Voltage Rating 600 to 35000 VAC Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 3/0 AWG Conductor Type Stranded Copper Die Code 14 Material Copper Stud Size 1/4 in Features: The Blank Tongue Line Of Copper Code HYLUG™Terminals Are Designed To Provide Maximum Field Flexibility; Scored Lines Prevent The Drill From Walking When Trying To Drill In This Area; This Innovative Design Allows The Installer To Customize The Tongue Drilling To Fit Their Specific Application While Maintaining ULListing And CSA Certification; Manufactured From Seamless Highconductivity Electrolytic Copper Tubing With Heavy Duty Wall Thickness; Internally Beveled Barrel End; Proper Compression Systems Form A Highly Efficient Electrical Connection; Dimples Located At Each End Of The Scored Line Represent The Location Of The NEMA Standard Hole Spacing; Scored Line Locates The Center Of The Tongue And Prevents The Drill From Walking When Trying To Drill In This Area; Offered In A Wide Range Of Code Conductor Sizes; Wire Strip Length: 1-9/16 IN; Tools, Die S Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness Internally beveled barrel end Proper compression systems form a highly efficient electrical connection Dimples located at each end of the scored line represent the location of the NEMA standard hole spacing Scored line locates the center of the tongue and prevents the drill from walking when trying to drill in this area Undrilled
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | Long |
| Barrel Type | Chamfered |
| Catalog Number | YA272NU |
| Color | Orange |
| Country of Origin | US |
| Gross Weight Per Pack | 0.1700 lb |
| Overall Length | 5.01 in |
| Specifications | 1-9/16 in L Wire Stripe |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Temperature Rating | 90 °C |
| Tongue Size | 0.91 in W x 0.13 in THK |
| Tongue Type | Straight |
| Type | Blank Tongue |
| UNSPSC | 39121405 |
| UPC 11 | 78181050325 |
| UPC 12 | 781810503256 |
| Voltage Rating | 600 to 35000 VAC |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 3/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 14 |
| Material | Copper |
| Stud Size | 1/4 in |
| Features: The Blank Tongue Line Of Copper Code HYLUG™Terminals Are Designed To Provide Maximum Field Flexibility; Scored Lines Prevent The Drill From Walking When Trying To Drill In This Area; This Innovative Design Allows The Installer To Customize The Tongue Drilling To Fit Their Specific Application While Maintaining ULListing And CSA Certification; Manufactured From Seamless Highconductivity Electrolytic Copper Tubing With Heavy Duty Wall Thickness; Internally Beveled Barrel End; Proper Compression Systems Form A Highly Efficient Electrical Connection; Dimples Located At Each End Of The Scored Line Represent The Location Of The NEMA Standard Hole Spacing; Scored Line Locates The Center Of The Tongue And Prevents The Drill From Walking When Trying To Drill In This Area; Offered In A Wide Range Of Code Conductor Sizes; Wire Strip Length: 1-9/16 IN; Tools, Die S |
| Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness |
| Internally beveled barrel end |
| Proper compression systems form a highly efficient electrical connection |
| Dimples located at each end of the scored line represent the location of the NEMA standard hole spacing |
| Scored line locates the center of the tongue and prevents the drill from walking when trying to drill in this area |
| Undrilled |
