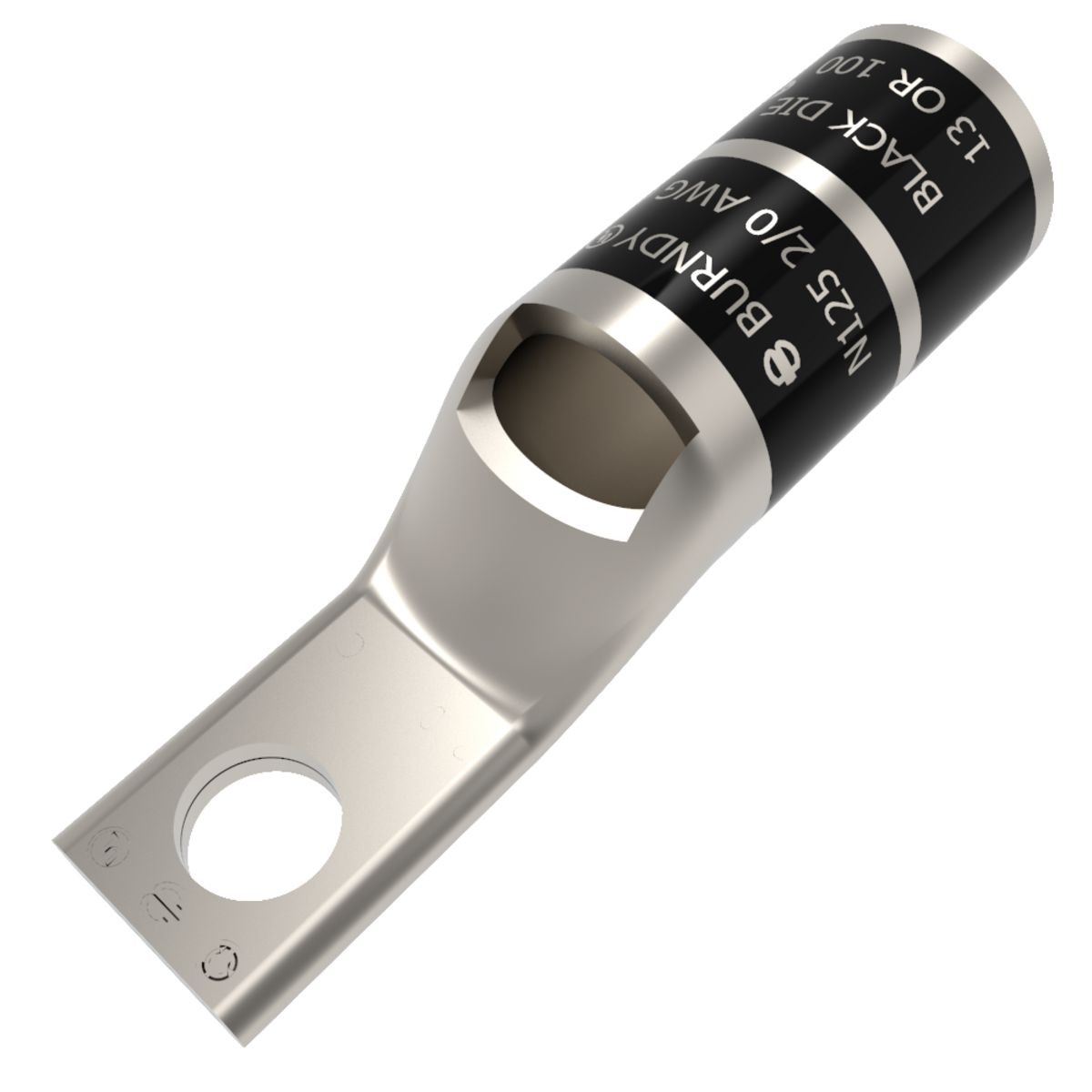

Burndy® HYLUG™ YA26LNT14 1-Hole Compression Lug With Inspection Window, 2/0 AWG Stranded Copper Conductor, 1/4 in Stud
Burndy® HYLUG™ YA26LNT14 1-Hole Compression Lug With Inspection Window, 2/0 AWG Stranded Copper Conductor, 1/4 in Stud
SKU973526
MFGR #YA26LNT14
$/ea
The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35KV. See each catalog page for UL 35kV listings.
The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35KV. See each catalog page for UL 35kV listings.
Application Wire Termination ARRA Compliant C Barrel Size Standard Barrel Type Chamfered Buy American Compliant C Catalog Number YA26LNT14 Color Black Color Code Black Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.94 in Height [Metric] 2.3876 cm Length 2.02 in Length [Metric] 5.1308 cm Number Of Holes 1 Overall Length 2.02 in Returnable Y Specifications 1 in L Wire Stripe Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.48 in W x 0.12 in THK Tongue Type Straight Type 1-Hole UNSPSC 39121405 UPC 11 78181007661 UPC 12 781810076613 Voltage Rating 35,000 V Width 0.12 in Width [Metric] 0.3048 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 2/0 AWG Conductor Type Stranded Copper Die Code 13 Material Copper Stud Size 1/4 in Wire Termination Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the wire strands during insertion Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties Provides an excellent relationship of the conductor/connector combination to produce a high quality electrical connection with the recommended tooling Provides durable long-lasting corrosion resistance Each connector is clearly marked with the wire size and type, die index, and color coding Narrow tongue
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | Standard |
| Barrel Type | Chamfered |
| Buy American Compliant | C |
| Catalog Number | YA26LNT14 |
| Color | Black |
| Color Code | Black |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.94 in |
| Height [Metric] | 2.3876 cm |
| Length | 2.02 in |
| Length [Metric] | 5.1308 cm |
| Number Of Holes | 1 |
| Overall Length | 2.02 in |
| Returnable | Y |
| Specifications | 1 in L Wire Stripe |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.48 in W x 0.12 in THK |
| Tongue Type | Straight |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181007661 |
| UPC 12 | 781810076613 |
| Voltage Rating | 35,000 V |
| Width | 0.12 in |
| Width [Metric] | 0.3048 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 13 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the wire strands during insertion |
| Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness |
| Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties |
| Provides an excellent relationship of the conductor/connector combination to produce a high quality electrical connection with the recommended tooling |
| Provides durable long-lasting corrosion resistance |
| Each connector is clearly marked with the wire size and type, die index, and color coding |
| Narrow tongue |
