BURNDY®

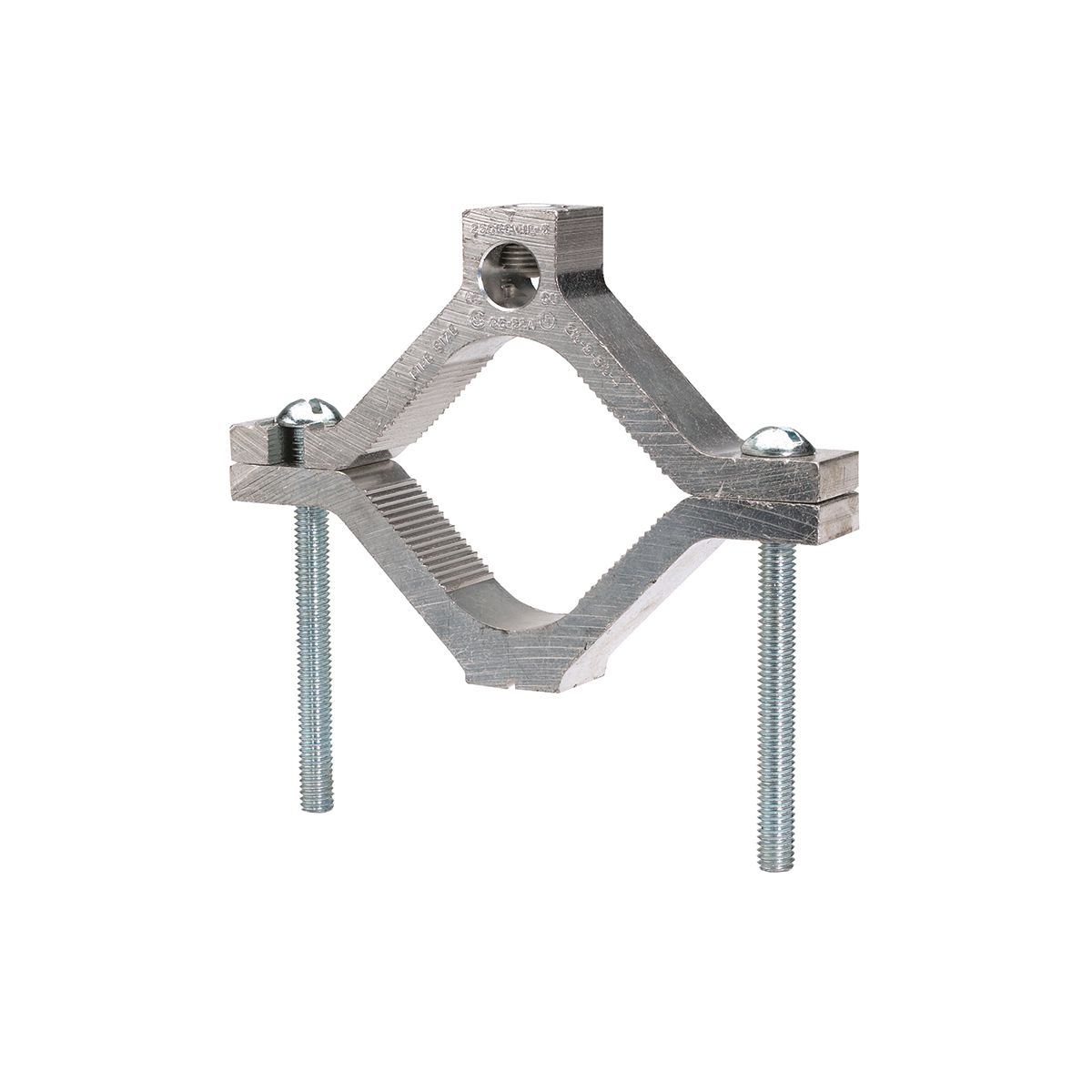

Burndy® GC15A GC-A Dual Rated Mechanical Grounding Clamp, 14 to 1/0 AWG Conductor, Aluminum
Custom_Product_Images_Illustration
BURNDY®
Burndy® GC15A GC-A Dual Rated Mechanical Grounding Clamp, 14 to 1/0 AWG Conductor, Aluminum
SKU59393
MFGR #GC15A
$/ea
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
Application For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit ARRA Compliant C Buy American Compliant C Catalog Number GC15A Conductor Type Aluminum/Copper Connection Type Cable to Water Pipe Country of Origin US Dimensions 2-1/4 in L x 11/16 in W EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.1300 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908060 Height 1.66 in Height [Metric] 4.2164 cm Installation Wrench Length 2.25 in Length [Metric] 5.7150 cm Pipe Size 1/2 to 1 in Returnable Y Series GC-A Standard UL467 Sub Brand Mechanical Connector Temperature Rating -0.4 Type GC-A, Dual Rated UNSPSC 39121408 UPC 11 78181024000 UPC 12 781810240007 Width 0.69 in Width [Metric] 1.7526 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 1/2 to 1 in, 14 to 1/0 AWG Material Aluminum For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit Features: Ground Clamps Are UL Listed For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit, All Clamps Are Constructed From Tin-Plated High Strength Extruded Aluminum Alloy, PENETROX Oxide Inhibiting Compounds Are Recommended For All Aluminum, Clamps Are Dual Rated For Both Copper And Aluminum Conductors: Maximum Flexibility Of Application, All Connectors Are Tin Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, All Clamps Are Range Taking: Only 3 Catalog Numbers Covers Complete Range Of Applications From 1/2 4 IN, Set Screw Type: Slot, Length: 2-1/4 IN, Hex Size: S, Width: 11/16 IN Ground clamps are UL listed for use with either copper or aluminum conductors to copper water pipe, galvanized pipe or steel conduit All clamps are constructed from tin plated high strength extruded aluminum alloy Penetrox oxide inhibiting compounds are recommended for all aluminum Clamps are dual-rated for both copper and aluminum conductors Maximum flexibility of application All connectors are tin plated Provide low contact resistance and prevents galvanic corrosion All clamps are range taking Only 3 catalog numbers covers complete range of applications from 1/2 4 in 180 in-lb installation torque Slot set screw 8 - 4/0 AWG aluminum, 14 - 1/0 AWG solid - 14 - 1/0 AWG stranded copper conductor range Made of High Strength Extruded Aluminum Alloy
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | GC15A |
| Conductor Type | Aluminum/Copper |
| Connection Type | Cable to Water Pipe |
| Country of Origin | US |
| Dimensions | 2-1/4 in L x 11/16 in W |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.1300 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908060 |
| Height | 1.66 in |
| Height [Metric] | 4.2164 cm |
| Installation | Wrench |
| Length | 2.25 in |
| Length [Metric] | 5.7150 cm |
| Pipe Size | 1/2 to 1 in |
| Returnable | Y |
| Series | GC-A |
| Standard | UL467 |
| Sub Brand | Mechanical Connector |
| Temperature Rating | -0.4 |
| Type | GC-A, Dual Rated |
| UNSPSC | 39121408 |
| UPC 11 | 78181024000 |
| UPC 12 | 781810240007 |
| Width | 0.69 in |
| Width [Metric] | 1.7526 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1/2 to 1 in, 14 to 1/0 AWG |
| Material | Aluminum |
| For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit |
| Features: Ground Clamps Are UL Listed For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit, All Clamps Are Constructed From Tin-Plated High Strength Extruded Aluminum Alloy, PENETROX Oxide Inhibiting Compounds Are Recommended For All Aluminum, Clamps Are Dual Rated For Both Copper And Aluminum Conductors: Maximum Flexibility Of Application, All Connectors Are Tin Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, All Clamps Are Range Taking: Only 3 Catalog Numbers Covers Complete Range Of Applications From 1/2 4 IN, Set Screw Type: Slot, Length: 2-1/4 IN, Hex Size: S, Width: 11/16 IN |
| Ground clamps are UL listed for use with either copper or aluminum conductors to copper water pipe, galvanized pipe or steel conduit |
| All clamps are constructed from tin plated high strength extruded aluminum alloy |
| Penetrox oxide inhibiting compounds are recommended for all aluminum |
| Clamps are dual-rated for both copper and aluminum conductors |
| Maximum flexibility of application |
| All connectors are tin plated |
| Provide low contact resistance and prevents galvanic corrosion |
| All clamps are range taking |
| Only 3 catalog numbers covers complete range of applications from 1/2 4 in |
| 180 in-lb installation torque |
| Slot set screw |
| 8 - 4/0 AWG aluminum, 14 - 1/0 AWG solid - 14 - 1/0 AWG stranded copper conductor range |
| Made of High Strength Extruded Aluminum Alloy |
