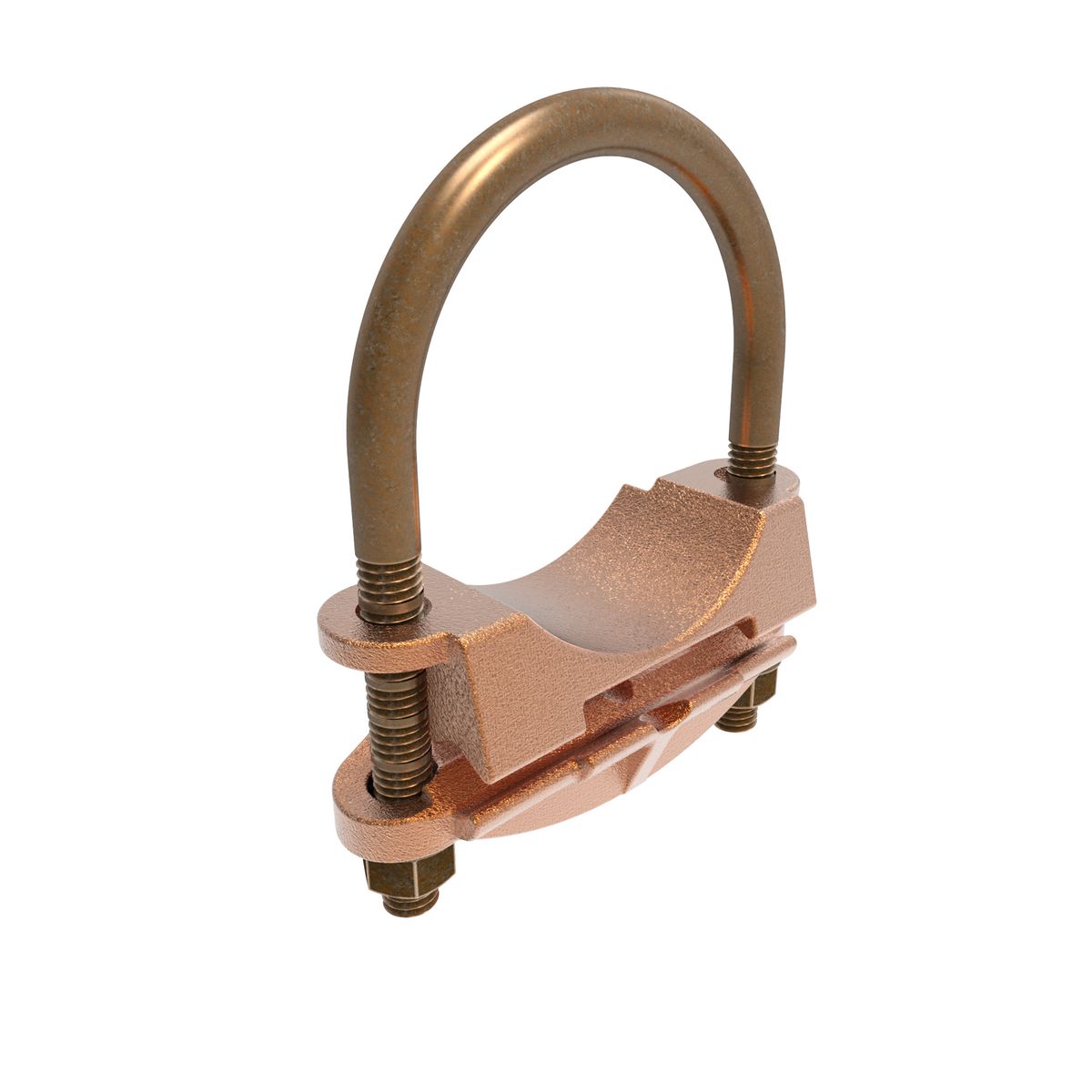

Burndy® GAR1826 Mechanical Grounding Connector, 2 to 2-3/8 in Rod, 4 to 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
85811
MFG #: GAR1826
BURNDY®
47.02000
/ ea
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
- Brochure URL - 10969_UI59QH4O7JC61FR0.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b3d735f8ce1c45e644936f9b366cbf3a83b66efee95a3476d4d69ef925a918f1.pdf(Catalog URL)
- Spec Sheet URL - 10969_LRQMF6SGAVWUJP1C.pdf(Spec Sheet URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet 1 URL - BURNDY_GAR1826_1_Specification Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - BRDY-GAR1826-SPEC-EN.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 2 - 2-3/8 IN, Tube (ips) Size: 2 IN, Installation Torque: 240 IN-LB, Width: 3-3/4 IN, Height: 4-1/4 IN |
| High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube |
| Especially good for fence posts |
| High copper alloy cast body with DURIUM U-bolts, nuts and lock washers |
| Permit entire connection to be buried in ground or concrete without danger of corrosion |
| Acceptable for direct burial |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range |
| Silicon bronze hardware |
| 2 in IPS pipe |
| Made of High Copper Alloy |
