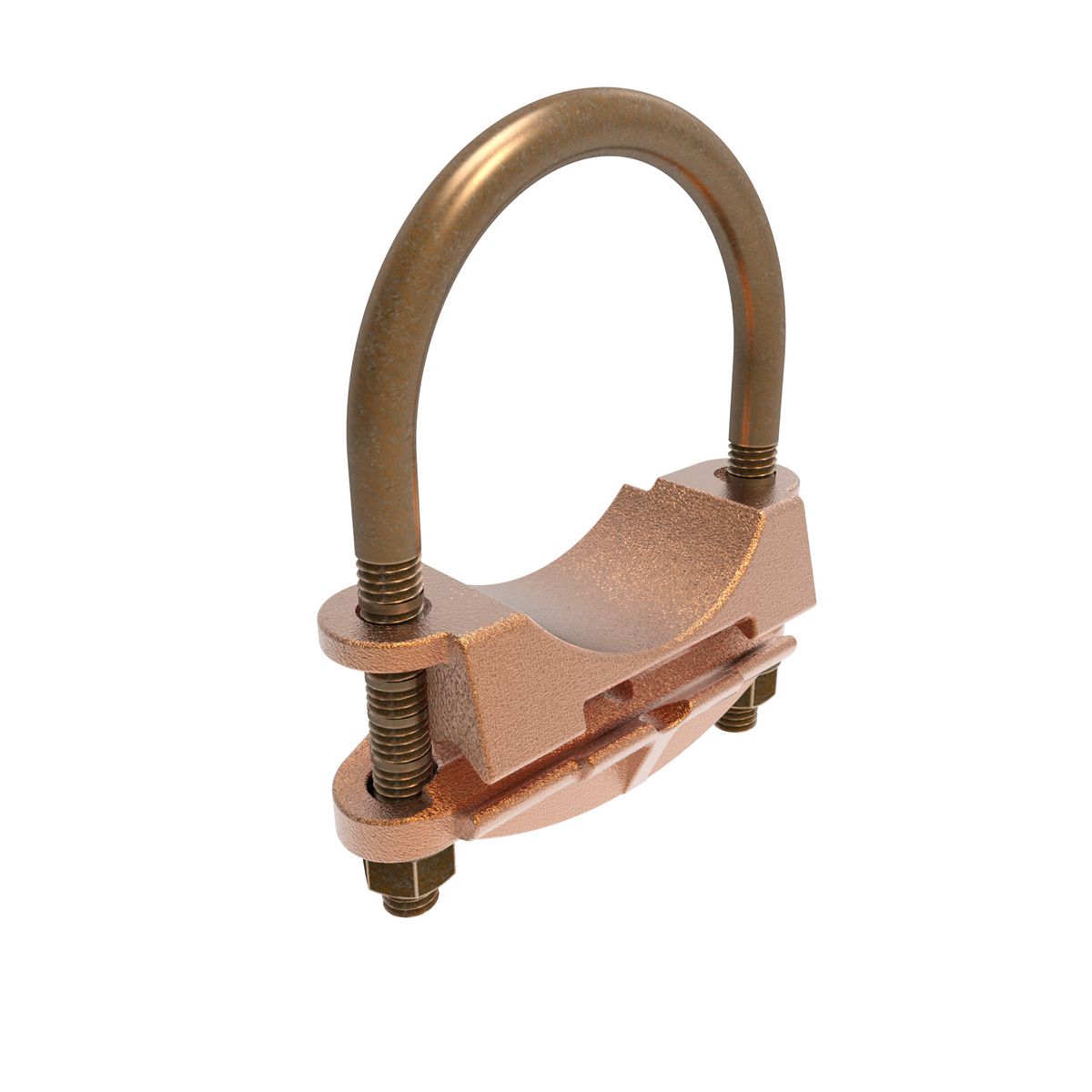

Burndy® GAR1726 Mechanical Grounding Connector, 1-5/8 to 1-7/8 in Rod, 4 to 2/0 AWG Conductor, Copper
Custom_Product_Images_Illustration
Burndy® GAR1726 Mechanical Grounding Connector, 1-5/8 to 1-7/8 in Rod, 4 to 2/0 AWG Conductor, Copper
SKU162998
MFGR #GAR1726
Your Cost: $95.35/ea
List: All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
Application For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post ARRA Compliant C Buy American Compliant C Catalog Number GAR1726 Conductor Type Copper/Stranded/Solid Connection Type Cable to Rod/Pipe Country of Origin US Dimensions 1.56 in L x 3-1/4 in W x 4 in H EU RoHS Indicator Y Finish Bright Dipped Gross Weight Per Pack 0.8900 lb Gross Weight per Pack Metric 0.40 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908060 Height 4.00 in Height [Metric] 10.1600 cm Installation Wrench Length 1.56 in Length [Metric] 3.9624 cm Pipe Size 1-1/2 in Replaced Catalog Number GAR1726 Returnable Y Series GAR Standard UL467 Standards UL467, cULus Listed, CSA Certified, RoHS Compliant Sub Brand Mechanical Connector Type GAR UNSPSC 39121408 UPC 11 78181023420 UPC 12 781810234204 Width 3.25 in Width [Metric] 8.2550 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 4 to 2/0 AWG Material Copper Rod Size 1-5/8 to 1-7/8 in For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Tube (ips) Size: 1-1/2 IN, Ground Rod Size: 1-5/8 - 1-7/8 IN, Height: 4 IN, Installation Torque: 240 IN-LB, Width: 3-1/4 IN High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube Especially good for fence posts High copper alloy cast body with DURIUM U-bolts, nuts and lock washers Permit entire connection to be buried in ground or concrete without danger of corrosion Acceptable for direct burial 240 in-lb installation torque 3/8 in bolt 4 - 3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range Silicon bronze hardware 1-1/2 in IPS pipe Made of High Copper Alloy
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | GAR1726 |
| Conductor Type | Copper/Stranded/Solid |
| Connection Type | Cable to Rod/Pipe |
| Country of Origin | US |
| Dimensions | 1.56 in L x 3-1/4 in W x 4 in H |
| EU RoHS Indicator | Y |
| Finish | Bright Dipped |
| Gross Weight Per Pack | 0.8900 lb |
| Gross Weight per Pack Metric | 0.40 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908060 |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Installation | Wrench |
| Length | 1.56 in |
| Length [Metric] | 3.9624 cm |
| Pipe Size | 1-1/2 in |
| Replaced Catalog Number | GAR1726 |
| Returnable | Y |
| Series | GAR |
| Standard | UL467 |
| Standards | UL467, cULus Listed, CSA Certified, RoHS Compliant |
| Sub Brand | Mechanical Connector |
| Type | GAR |
| UNSPSC | 39121408 |
| UPC 11 | 78181023420 |
| UPC 12 | 781810234204 |
| Width | 3.25 in |
| Width [Metric] | 8.2550 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 4 to 2/0 AWG |
| Material | Copper |
| Rod Size | 1-5/8 to 1-7/8 in |
| For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Tube (ips) Size: 1-1/2 IN, Ground Rod Size: 1-5/8 - 1-7/8 IN, Height: 4 IN, Installation Torque: 240 IN-LB, Width: 3-1/4 IN |
| High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube |
| Especially good for fence posts |
| High copper alloy cast body with DURIUM U-bolts, nuts and lock washers |
| Permit entire connection to be buried in ground or concrete without danger of corrosion |
| Acceptable for direct burial |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range |
| Silicon bronze hardware |
| 1-1/2 in IPS pipe |
| Made of High Copper Alloy |
