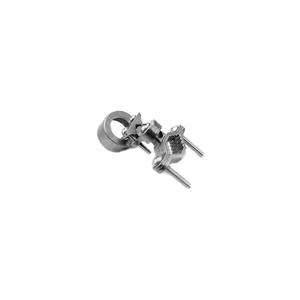

Burndy® C11LH1 Ground Clamp RIGID 1/2-1IN,3.23 IN L
SKU147554
MFGR #C11LH1
Your Cost: $16.42/ea
List: BURNDY® Ground Clamp, 1/2 to 1 in Pipe, Solid/Stranded Copper Conductor, 10 AWG, 10 to 6 AWG Conductor, Bronze, Unplated, 3.23 in L x 0.69 in W x 2.25 in H
BURNDY® Ground Clamp, 1/2 to 1 in Pipe, Solid/Stranded Copper Conductor, 10 AWG, 10 to 6 AWG Conductor, Bronze, Unplated, 3.23 in L x 0.69 in W x 2.25 in H
Brand BURNDY® Catalog Number C11LH1 Conductor Size 10 to 6 AWG Conductor Type Copper/Stranded/Solid Connection Type Cable to Water Pipe Country of Origin IN Dimensions 3.23 in L x 0.69 in W x 2.25 in H Finish Zinc Plated Gross Weight Per Pack 0.1700 lb Manufacturer BURNDY® Material Cast Bronze Pipe Size 1/2 to 1 in Stock Status NORMALLY STOCKED UNSPSC 39121408 UPC 11 78181014214 UPC 12 781810142141 Features: For Grounding Rigid Conduit Systems, Continuity From Rigid Conduit Systems To Ground Provided By Cast Bronze Threaded Conduit Hub, Zinc Plated Screws, Ground Strap: No, Dimension C: 0.97 IN, Armored Cable: No, Water Pipe Size: 3/8 - 1 IN, Installation Torque: 50 IN-LB For Pipe Clamp And Wire Clamp, Hub Size: 1/2 IN, Width: 0.69 IN, Length: 3.23 IN, Height: 2.25 IN 1/2 in hub size 0.97 in W pad 50 lb-in recommended installation torque for pipe and wire clamp Zinc plated steel hardware 10 AWG stranded to 6 AWG solid (main/primary) conductor size Continuity from rigid conduit systems to ground provided by cast bronze threaded conduit hub
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Brand | BURNDY® |
| Catalog Number | C11LH1 |
| Conductor Size | 10 to 6 AWG |
| Conductor Type | Copper/Stranded/Solid |
| Connection Type | Cable to Water Pipe |
| Country of Origin | IN |
| Dimensions | 3.23 in L x 0.69 in W x 2.25 in H |
| Finish | Zinc Plated |
| Gross Weight Per Pack | 0.1700 lb |
| Manufacturer | BURNDY® |
| Material | Cast Bronze |
| Pipe Size | 1/2 to 1 in |
| Stock Status | NORMALLY STOCKED |
| UNSPSC | 39121408 |
| UPC 11 | 78181014214 |
| UPC 12 | 781810142141 |
| Features: For Grounding Rigid Conduit Systems, Continuity From Rigid Conduit Systems To Ground Provided By Cast Bronze Threaded Conduit Hub, Zinc Plated Screws, Ground Strap: No, Dimension C: 0.97 IN, Armored Cable: No, Water Pipe Size: 3/8 - 1 IN, Installation Torque: 50 IN-LB For Pipe Clamp And Wire Clamp, Hub Size: 1/2 IN, Width: 0.69 IN, Length: 3.23 IN, Height: 2.25 IN |
| 1/2 in hub size |
| 0.97 in W pad |
| 50 lb-in recommended installation torque for pipe and wire clamp |
| Zinc plated steel hardware |
| 10 AWG stranded to 6 AWG solid (main/primary) conductor size |
| Continuity from rigid conduit systems to ground provided by cast bronze threaded conduit hub |
