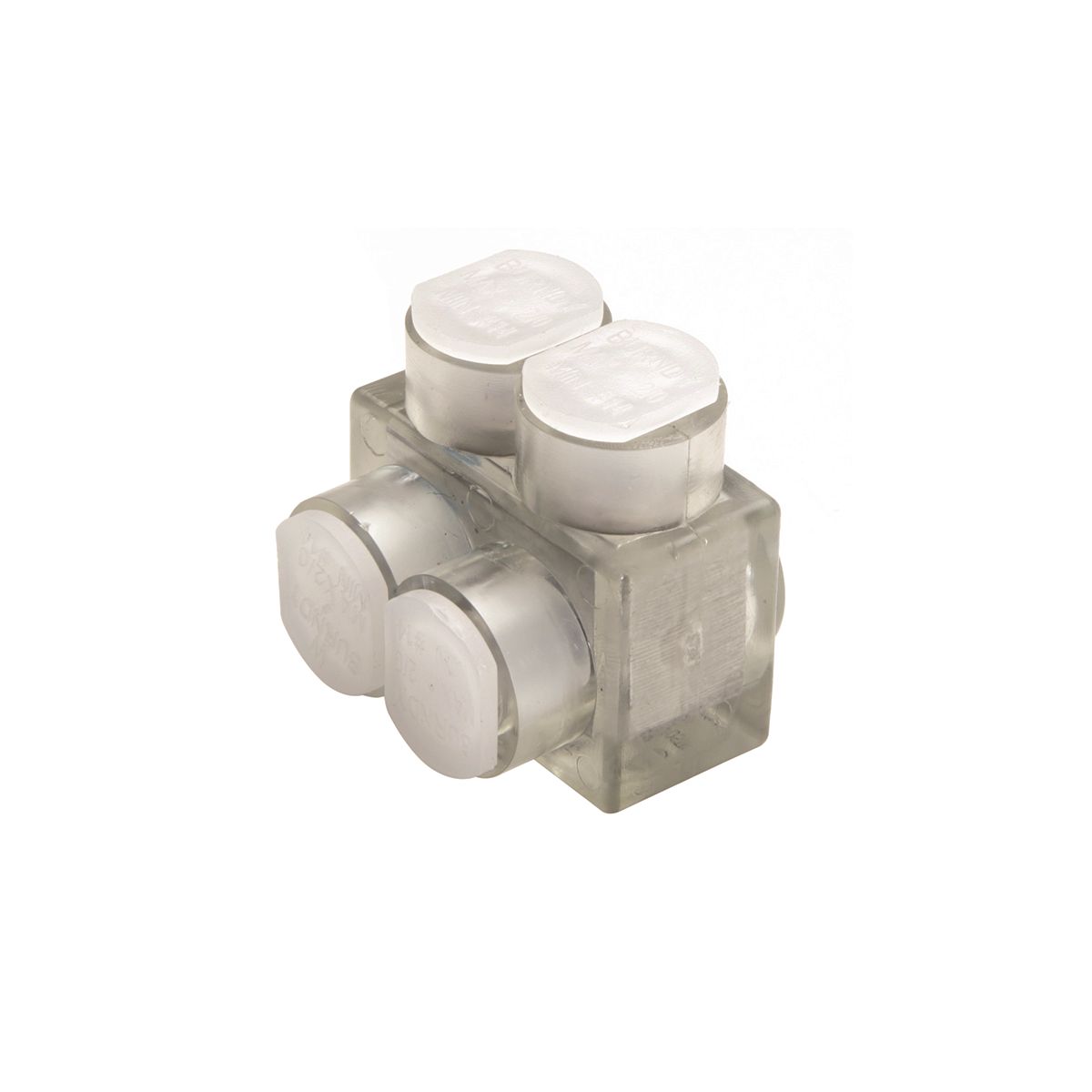

Burndy® BIT250 UNITAP™ BIT 1-Sided Entry Multi-Tap Connector With Mounting Holes, 10 AWG to 250 kcmil
Compression Multi Taps
19439
MFG #: BIT-250
BURNDY®
28.60000
/ ea
UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.
- Brochure URL - 10969_JMWEK528CBXIARL6.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_51bbf0e2d52b437409c570ada4ad91dc35125b45e1af6468a29827bf72846f85.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - oxideinhibitorunitap.jpg(Safety Data Sheet URL)
- Spec Sheet URL - 10969_XGN4DJF57Z3R2WM0.pdf(Spec Sheet URL)
- Spec Sheet URL - BIT250.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_X98LPFEDR3C5SQIO.pdf(Tech Drawing URL)
- Tech Drawing URL - sc210991-01.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Hmx29QDaZrM(Video)
- Applications
- Features
| For Indoor Use Only, Copper Or Stranded Aluminum |
| Features: Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 275 IN-LB, Wire Entry: Double, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Wire Strip Length: 1-3/16 IN, Type Of Insulation: Plastisol, Number Of Ports: 2 |
| Clear plastisol covered aluminum body saves time, lowers installation costs, eliminates taping |
| Clear plastisol insulation allows visual confirmation that conductor is properly inserted |
| Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area, range-taking - reduces number of connectors carried in inventory |
| Range taking reduces number of connectors carried in inventory |
| Made of AL6061-T6 aluminum |
| 2-Ports, 2 screw |
| Unplated, inspectable |
| 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG to 250 kcmil stranded copper, 8 AWG to 250 kcmil aluminum |
