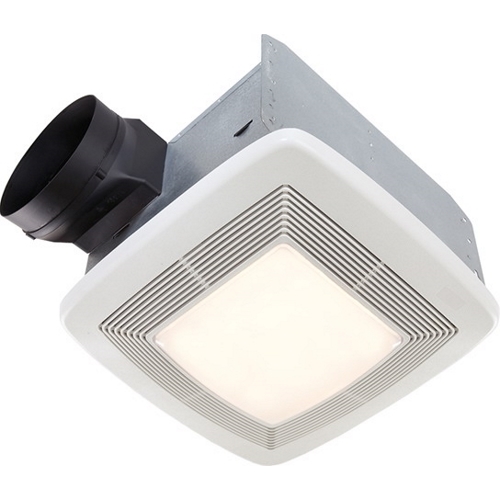

Broan® QTXE110FLT Bath Fan/Light, 110 cfm, 6 in Duct, 33.5 W, 120 VAC, 1 A, Domestic
Bathroom Exhaust Fans
297925
MFG #: QTXE110FLT
Broan®
326.98000
/ ea
Broan® QT series ventilation products offer the rare combination of power and extremely quiet operation. Offered with a variety of additional functions such as lights, nightlights and heaters.
- Brochure URL - BRO_IDEA_1505.pdf(Brochure URL)
- Catalog 1 URL - Broan-NuTone_696_Catalog.pdf(Catalog 1 URL)
- Catalog URL - Broan-NuTone_696_Catalog.pdf(Catalog URL)
- Data Sheet 1 URL - Broan-NuTone_QTXE110FLT_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.broan.com(Seller Home Page URL)
- Spec Sheet URL - SPE_91df387c-9333-4703-8e52-587d1bd3ff90.pdf(Spec Sheet URL)
- Warranty URL - warranty(Warranty URL)
- Applications
- Features
| For Bathrooms Up To 100 SQ-ft |
| Ultra-quiet, high performance bath fan and light with a modern-styled grille; Plug-in, permanently lubricated motor engineered for continuous operation; Dynamically balanced centrifugal blower wheel for quiet, efficient performance; Maintains a high percentage of rated CFM in less than ideal installations; Innovative design grille with white enamel finish durable steel reflector; Rugged 26 GA galvanized steel construction housing; 6 IN round ducting for superior performance; Watts: 33.5 WTT at 0.1 IN, 33 WTT at 0.25 IN; Polymeric duct connector with tapered sleeve and no metallic clatter; Sturdy, easy, four-point mounting directly to joist; Includes unique spacer (patent pending) for mounting to engineered I" joists; Includes hanger bars to position housing anywhere between 16 - 24 IN on-center joists; Two sets of mounting holes for hanger bars allow flush insta" |
| New, attractive low-profile grille styling, 36 W GU24 fluorescent light - (2 to 18 W bulbs included) and 4 W nightlight (bulb not included) |
| 6 in ducting for superior performance |
| 4 W nightlight(bulb sold separately) |
| Motor engineered for continuous operation |
| UL listed for use over tub/shower with GFCI circuit |
| Hanger bars for easy, fast and universal installation in all types of construction |
| 86 cfm at 0.25 in SP |
| Horizontal duct direction |
| 2 x 8 in minimum construction space required |
| 0.7 sones |
| 33.5 W Fixture |
| (2) GU24 base fluorescent lamp |
