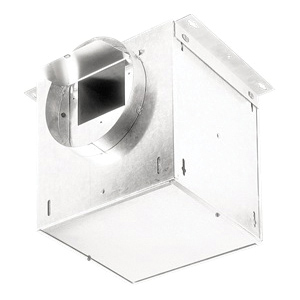

Broan® L200L Straight Through Ventilation Fan, 196 cfm, 8 in Dia Duct, 127 W, 120 VAC, 1.8 A, Domestic
Broan® L200L Straight Through Ventilation Fan, 196 cfm, 8 in Dia Duct, 127 W, 120 VAC, 1.8 A, Domestic
SKU559775
MFGR #L200L
$/ea
Broan® Ventilation Fan, Straight Through, 196 cfm, 8 in Duct Dia, 120 VAC, 1.8 A, 60 Hz, 127 W, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling/Wall Mount, No, Domestic
Broan® Ventilation Fan, Straight Through, 196 cfm, 8 in Duct Dia, 120 VAC, 1.8 A, 60 Hz, 127 W, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling/Wall Mount, No, Domestic
ARRA Compliant N Buy American Compliant N Catalog Number L200L Country of Origin USA Currency USD Domestic|Import Domestic EU RoHS Indicator N Frequency Rating 60 Hz Grille Material Polymer Gross Weight Per Pack 23.1000 lb Gross Weight per Pack Metric 10.48 Gross Weight UOM Metric kg Height 1.33 in Height [Metric] 3.3866 cm Housing Height 11-3/4 in Housing Length 12-1/4 in Housing Material Galvanized Steel Housing Width 12-1/4 in Humidity Sensing No Length 1.33 in Length [Metric] 3.3866 cm Mounting Type Ceiling Standards UL/cUL Listed Type Straight Through UNSPSC 40101604 UPC 11 02671512461 UPC 12 02671512461 Width 1.25 in Width [Metric] 3.1750 cm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC Amperage Rating 1.8 A Duct Diameter 8 in Flow Rate 196 cfm Power Rating 127 W Voltage Rating 120 VAC High capacity fans are an exceptionally quiet solution to continuous ventilation Removable panel allows for easy motor access without disturbing ductwork Low rpm for quiet operation blower Resilient anti-vibration mounts blower Dynamically balanced, polymeric, centrifugal blower wheel for quiet, efficient performance Permanently lubricated, thermally protected motor designed for continuous operation Rugged galvanized steel housing Ventilator shall have galvanized steel housing 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements Automatic backdraft damper located within duct connector Factory shipped in horizontal discharge position easily converted to vertical discharge Housing to have adjustable mounting brackets and removable panel to allow motor access without disturbing ductwork Automatic backdraft damper to be located within duct connector duct connector blower assembly and wiring plate shall be adjustable for either horizontal or vertical installation Blower unit shall be removable from housing and will have a polymeric, dynamically balanced centrifugal type blower wheel Motor to be permanently lubricated and mounted with resilient anti-vibration mounts Can be ducted horizontally or vertically with in-line ducting available with separate adapter Use Broan® electronic variable speed control to adjust blower speed and sound level (available separately) 196 cfm at 0.1 in/195 cfm at 1/8 in/190 cfm at 1/4 in flow rate 1.9 rated Sones vertical, 1.6 Sones sound No nightlight
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | L200L |
| Country of Origin | USA |
| Currency | USD |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Frequency Rating | 60 Hz |
| Grille Material | Polymer |
| Gross Weight Per Pack | 23.1000 lb |
| Gross Weight per Pack Metric | 10.48 |
| Gross Weight UOM Metric | kg |
| Height | 1.33 in |
| Height [Metric] | 3.3866 cm |
| Housing Height | 11-3/4 in |
| Housing Length | 12-1/4 in |
| Housing Material | Galvanized Steel |
| Housing Width | 12-1/4 in |
| Humidity Sensing | No |
| Length | 1.33 in |
| Length [Metric] | 3.3866 cm |
| Mounting Type | Ceiling |
| Standards | UL/cUL Listed |
| Type | Straight Through |
| UNSPSC | 40101604 |
| UPC 11 | 02671512461 |
| UPC 12 | 02671512461 |
| Width | 1.25 in |
| Width [Metric] | 3.1750 cm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| Amperage Rating | 1.8 A |
| Duct Diameter | 8 in |
| Flow Rate | 196 cfm |
| Power Rating | 127 W |
| Voltage Rating | 120 VAC |
| High capacity fans are an exceptionally quiet solution to continuous ventilation |
| Removable panel allows for easy motor access without disturbing ductwork |
| Low rpm for quiet operation blower |
| Resilient anti-vibration mounts blower |
| Dynamically balanced, polymeric, centrifugal blower wheel for quiet, efficient performance |
| Permanently lubricated, thermally protected motor designed for continuous operation |
| Rugged galvanized steel housing |
| Ventilator shall have galvanized steel housing |
| 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements |
| Automatic backdraft damper located within duct connector |
| Factory shipped in horizontal discharge position easily converted to vertical discharge |
| Housing to have adjustable mounting brackets and removable panel to allow motor access without disturbing ductwork |
| Automatic backdraft damper to be located within duct connector duct connector blower assembly and wiring plate shall be adjustable for either horizontal or vertical installation |
| Blower unit shall be removable from housing and will have a polymeric, dynamically balanced centrifugal type blower wheel |
| Motor to be permanently lubricated and mounted with resilient anti-vibration mounts |
| Can be ducted horizontally or vertically with in-line ducting available with separate adapter |
| Use Broan® electronic variable speed control to adjust blower speed and sound level (available separately) |
| 196 cfm at 0.1 in/195 cfm at 1/8 in/190 cfm at 1/4 in flow rate |
| 1.9 rated Sones vertical, 1.6 Sones sound |
| No nightlight |
