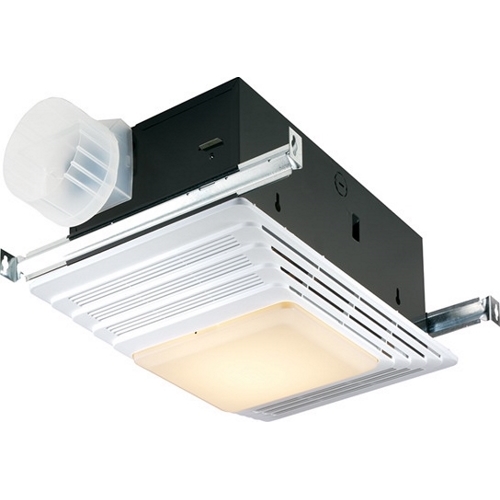

Broan® 696 Fan/Light, 100 cfm, 4 in Duct, 90 W, 120 VAC, 2 A, Import
Custom_Product_Images_Illustration
Broan® 696 Fan/Light, 100 cfm, 4 in Duct, 90 W, 120 VAC, 2 A, Import
SKU497
MFGR #696
Your Cost: $156.07/ea
List: Broan features classic ventilation fan/light combinations which easily fit any d?cor. Why stop at just powerful ventilation when you can add extra lighting to help brighten any room.
Broan features classic ventilation fan/light combinations which easily fit any d?cor. Why stop at just powerful ventilation when you can add extra lighting to help brighten any room.
Air Flow 100 CFM At 0.1 IN SP Application For Bathrooms Up To 90 SQ-ft ARRA Compliant N Buy American Compliant N Catalog Number 696 Color White Country of Origin USA Currency USD Current|Amps 2 A Domestic|Import Domestic EU RoHS Indicator N Fan Grade Quiet Fan Type Ventilation Grille Color White Grille Length 16-3/4 in Grille Material Polymer Grille Shape Rectangular Grille Width 10-5/8 in Gross Weight Per Pack 10.5000 lb Gross Weight per Pack Metric 4.76 Gross Weight UOM Metric kg Height 0.83 in Height [Metric] 21.0820 mm Housing Dimensions 14-1/4 IN Length X 8-1/4 IN Width X 5-3/4 IN Height Housing Height 5-3/4 in Housing Length 14-1/4 in Housing Material Steel Housing Width 8-1/4 in Humidity Sensing No Length 1.58 in Length [Metric] 4.0132 cm Motion Sensing No Motor Rpm 1550 Mounting Type Ceiling Standard UL Listed, HVI 2100 Certified, AMCA Certified Standards AMCA CertifiedUL ListedHVI 2100 Certified Type Quiet UNSPSC 40101502 UPC 11 02671502315 UPC 12 02671502315 Width 1.00 in Width [Metric] 25.4000 mm Stock Status NONSTOCK Brand Broan® Manufacturer Broan-NuTone, LLC Duct Diameter 4 in Flow Rate 100 cfm Sones 4.5 Voltage Rating 120 VAC Wattage Consumption 90 W For Bathrooms Up To 90 SQ-FT Quiet combination unit, built with high performance blowers, acoustic insulation and attractive styling; Fan and light shall be separately controllable; Permanently lubricated motors mounted with resilient anti-vibration mounts; Low sound, high performance blower wheel; Compact 23 GA steel housing finished with electrically bonded epoxy paint and 0.5 IN acoustic insulation; Adjustable mounting brackets up to 24 IN; Polymeric damper/duct connector with 2 IN long tapered sleeve and no metallic clatter; Installation in ceilings up to 12/12 pitch; Suitable for use in insulated ceilings (Type I.C.); Use supply wiring rated for at least 90 ° C; For controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 MINT time control or model 61V (ivory)/61W (white) 15 MINT time control or model 62V (ivory)/62W (white) 1 Designer styled white polymeric grille complements virtually any decor Bright 100 W light capacity (bulb not included) Housing lined with 1/2 in acoustic insulation Type IC (insulation contact) Use with model 68W or 68V 2-function control Two blower wheels, each powered by its own permanently lubricated plug-in motor quietly deliver high efficiency performance Built-in damper prevents backdrafts and eliminates metallic clatter Adjustable, slotted mounting brackets span upto 24 in for easy installation Polymeric 4 in round duct features a 2 in long tapered sleeve for easy, positive ducting Horizontal duct direction 16-3/4 in L x 10-5/8 in W white polymeric grille 2 x 6 in minimum construction space required Quiet combination unit, built with high performance blowers, acoustic insulation and attractive styling Fan and light shall be separately controllable Permanently lubricated motors mounted with resilient anti-vibration mounts Low sound, high performance blower wheel Compact 23 ga steel housing finished with electrically bonded epoxy paint and 1/2 in acoustic insulation Polymeric damper/duct connector with 2 in L tapered sleeve and no metallic clatter Installation in ceilings upto 12/12 pitch Use supply wiring rated for at least 90 deg C
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Air Flow | 100 CFM At 0.1 IN SP |
| Application | For Bathrooms Up To 90 SQ-ft |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 696 |
| Color | White |
| Country of Origin | USA |
| Currency | USD |
| Current|Amps | 2 A |
| Domestic|Import | Domestic |
| EU RoHS Indicator | N |
| Fan Grade | Quiet |
| Fan Type | Ventilation |
| Grille Color | White |
| Grille Length | 16-3/4 in |
| Grille Material | Polymer |
| Grille Shape | Rectangular |
| Grille Width | 10-5/8 in |
| Gross Weight Per Pack | 10.5000 lb |
| Gross Weight per Pack Metric | 4.76 |
| Gross Weight UOM Metric | kg |
| Height | 0.83 in |
| Height [Metric] | 21.0820 mm |
| Housing Dimensions | 14-1/4 IN Length X 8-1/4 IN Width X 5-3/4 IN Height |
| Housing Height | 5-3/4 in |
| Housing Length | 14-1/4 in |
| Housing Material | Steel |
| Housing Width | 8-1/4 in |
| Humidity Sensing | No |
| Length | 1.58 in |
| Length [Metric] | 4.0132 cm |
| Motion Sensing | No |
| Motor Rpm | 1550 |
| Mounting Type | Ceiling |
| Standard | UL Listed, HVI 2100 Certified, AMCA Certified |
| Standards | AMCA CertifiedUL ListedHVI 2100 Certified |
| Type | Quiet |
| UNSPSC | 40101502 |
| UPC 11 | 02671502315 |
| UPC 12 | 02671502315 |
| Width | 1.00 in |
| Width [Metric] | 25.4000 mm |
| Stock Status | NONSTOCK |
| Brand | Broan® |
| Manufacturer | Broan-NuTone, LLC |
| Duct Diameter | 4 in |
| Flow Rate | 100 cfm |
| Sones | 4.5 |
| Voltage Rating | 120 VAC |
| Wattage Consumption | 90 W |
| For Bathrooms Up To 90 SQ-FT |
| Quiet combination unit, built with high performance blowers, acoustic insulation and attractive styling; Fan and light shall be separately controllable; Permanently lubricated motors mounted with resilient anti-vibration mounts; Low sound, high performance blower wheel; Compact 23 GA steel housing finished with electrically bonded epoxy paint and 0.5 IN acoustic insulation; Adjustable mounting brackets up to 24 IN; Polymeric damper/duct connector with 2 IN long tapered sleeve and no metallic clatter; Installation in ceilings up to 12/12 pitch; Suitable for use in insulated ceilings (Type I.C.); Use supply wiring rated for at least 90 ° C; For controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 MINT time control or model 61V (ivory)/61W (white) 15 MINT time control or model 62V (ivory)/62W (white) 1 |
| Designer styled white polymeric grille complements virtually any decor |
| Bright 100 W light capacity (bulb not included) |
| Housing lined with 1/2 in acoustic insulation |
| Type IC (insulation contact) |
| Use with model 68W or 68V 2-function control |
| Two blower wheels, each powered by its own permanently lubricated plug-in motor quietly deliver high efficiency performance |
| Built-in damper prevents backdrafts and eliminates metallic clatter |
| Adjustable, slotted mounting brackets span upto 24 in for easy installation |
| Polymeric 4 in round duct features a 2 in long tapered sleeve for easy, positive ducting |
| Horizontal duct direction |
| 16-3/4 in L x 10-5/8 in W white polymeric grille |
| 2 x 6 in minimum construction space required |
| Quiet combination unit, built with high performance blowers, acoustic insulation and attractive styling |
| Fan and light shall be separately controllable |
| Permanently lubricated motors mounted with resilient anti-vibration mounts |
| Low sound, high performance blower wheel |
| Compact 23 ga steel housing finished with electrically bonded epoxy paint and 1/2 in acoustic insulation |
| Polymeric damper/duct connector with 2 in L tapered sleeve and no metallic clatter |
| Installation in ceilings upto 12/12 pitch |
| Use supply wiring rated for at least 90 deg C |
