Broan®

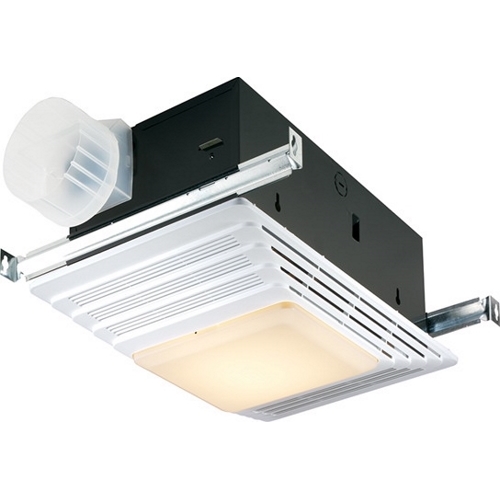

Broan® 659 Heater/Fan/Light,Broan,50
Custom_Product_Images_Illustration
Broan®
Broan® 659 Heater/Fan/Light,Broan,50
SKU153042
MFGR #659
Your Cost: $216.33/ea
List: Heater/Fan/Light; same as Model 655 except 50 CFM, 2.5 Sones
Heater/Fan/Light; same as Model 655 except 50 CFM, 2.5 Sones
Amperage Rating 12 A Application For Bathrooms Up To 45 SQ-FT ARRA Compliant N Brand Broan® Buy American Compliant N Catalog Number 659 Country of Origin USA Currency USD EU RoHS Indicator N Fan Type Ventilation Grille Color White Grille Material Polymeric Grille Shape Rectangular Grille Size 16-3/4 in L Gross Weight Per Pack 12.5000 lb Gross Weight per Pack Metric 5.67 Gross Weight UOM Metric kg Height 0.83 in Housing Dimensions 14-1/4 IN Length X 8-1/4 IN Width X 5-3/4 IN Height Housing Material 23 ga Steel Housing Size 14-1/4 in L x 8-1/4 in W x 5-3/4 in H Length 1.58 in Lighting Type Incandescent Manufacturer Broan-NuTone, LLC Standard UL Listed, HVI 2100 Certified Standards HVI 2100 CertifiedUL Listed Stock Status NONSTOCK Type Fan With Heater And Light UNSPSC 40101502 UPC 11 02671502303 UPC 12 02671502303 Voltage Rating 120 VAC Width 1.00 in Width [Metric] 25.4000 mm For Bathrooms Up To 45 SQ-FT Plug-in, permanently lubricated motor with resilient anti-vibration mounts; Low sound, high performance blower wheel; Directional vanes in grille for heat and exhaust with snap-in light diffusing lens; 1300 WTT heater with metal blower wheel for efficient, even heating; Plug-in, permanently lubricated motor (functions independent of ventilator); Adjustable mounting brackets span up to 24 IN; Polymeric damper/duct connector with 2 IN long tapered sleeve and no metallic clatter; Compact 23 GA steel housing finished with electrically bonded epoxy paint; For installation in ceilings up to 12/12 pitch; Suitable for use in insulated ceilings (Type IC); Use supply wiring rated for at least 90 ° C; Accessories (Purchase separately): Model 66V (ivory)/66W (white) three function control; 1 YR warranty Designer white polymeric grilles complement virtually any decor Fits 2 x 6 in ceiling construction Fan, light and heater function independently or together
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 12 A |
| Application | For Bathrooms Up To 45 SQ-FT |
| ARRA Compliant | N |
| Brand | Broan® |
| Buy American Compliant | N |
| Catalog Number | 659 |
| Country of Origin | USA |
| Currency | USD |
| EU RoHS Indicator | N |
| Fan Type | Ventilation |
| Grille Color | White |
| Grille Material | Polymeric |
| Grille Shape | Rectangular |
| Grille Size | 16-3/4 in L |
| Gross Weight Per Pack | 12.5000 lb |
| Gross Weight per Pack Metric | 5.67 |
| Gross Weight UOM Metric | kg |
| Height | 0.83 in |
| Housing Dimensions | 14-1/4 IN Length X 8-1/4 IN Width X 5-3/4 IN Height |
| Housing Material | 23 ga Steel |
| Housing Size | 14-1/4 in L x 8-1/4 in W x 5-3/4 in H |
| Length | 1.58 in |
| Lighting Type | Incandescent |
| Manufacturer | Broan-NuTone, LLC |
| Standard | UL Listed, HVI 2100 Certified |
| Standards | HVI 2100 CertifiedUL Listed |
| Stock Status | NONSTOCK |
| Type | Fan With Heater And Light |
| UNSPSC | 40101502 |
| UPC 11 | 02671502303 |
| UPC 12 | 02671502303 |
| Voltage Rating | 120 VAC |
| Width | 1.00 in |
| Width [Metric] | 25.4000 mm |
| For Bathrooms Up To 45 SQ-FT |
| Plug-in, permanently lubricated motor with resilient anti-vibration mounts; Low sound, high performance blower wheel; Directional vanes in grille for heat and exhaust with snap-in light diffusing lens; 1300 WTT heater with metal blower wheel for efficient, even heating; Plug-in, permanently lubricated motor (functions independent of ventilator); Adjustable mounting brackets span up to 24 IN; Polymeric damper/duct connector with 2 IN long tapered sleeve and no metallic clatter; Compact 23 GA steel housing finished with electrically bonded epoxy paint; For installation in ceilings up to 12/12 pitch; Suitable for use in insulated ceilings (Type IC); Use supply wiring rated for at least 90 ° C; Accessories (Purchase separately): Model 66V (ivory)/66W (white) three function control; 1 YR warranty |
| Designer white polymeric grilles complement virtually any decor |
| Fits 2 x 6 in ceiling construction |
| Fan, light and heater function independently or together |
