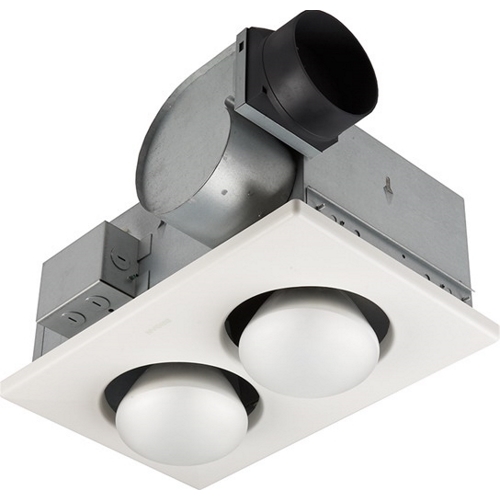

Broan® 164 Bulb Heater, 70 cfm, 4 in Dia Duct, 500 W, 120 VAC, 500 W
Heater/Fan/Light Combo
475
MFG #: 164
Broan®
123.53000
/ ea
Broan® Bulb Heater, 70 cfm, 4 in Duct Dia, 120 VAC, 4.5 A, 545 W, 500 W Heater wattage, Housing Dimension: 8-3/8 in L x 14-1/4 in W x 6-3/8 in H, 500 W Lamp, Infrared Lighting, Ceiling Mount, 15-5/8 in L x 10-1/4 in W Grille, Polymer Grille, Sturdy Steel Housing, No, White
- Brochure URL - BRO_IDEA_1120.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b3ec11cf00aa30614f8193bd1405ed4bc1d079382dcb4b97bf2d5821a9c50bce.pdf(Catalog URL)
- Data Sheet 1 URL - Broan_164_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.broan.com(Seller Home Page URL)
- http://www.broan.com/(Seller Home Page URL)
- Spec Sheet URL - SPE_1326aa8d-dffa-4249-8221-5ad5d2f2e588.pdf(Spec Sheet URL)
- Warranty URL - warranty(Warranty URL)
- Applications
- Features
| For Energy-Saving Warmth And Instant Comfort In The Bathroom |
| Features: 70 CFM 3.5 Sones; UL Listed For 60 ° C Wiring (Retrofits); Type IC; Quiet, Highly Efficient Polymeric Blower Wheels; Polymeric Dampers Eliminate Metallic Clatter While Preventing Backdrafts; Polymeric 4.000 IN Round Duct Connectors With Tapered Sleeves Provide Easier, Positive Ducting; Adjustable Mounting Brackets With Keyhole Slots That Span Up To 24.000 IN; Use 250-Watt BR40 Size Infrared Bulbs (Not Included); Use With Broan Model 68 W, 68 V, 67 W, 67 V, 66 W, 66 V, 65 W, Or 65 V Multi-Function Control (Available Separately); White-White Polymeric Grille; Sturdy Steel Housing; Plug-In, Permanently Lubricated Motor; Polymeric Damper/Duct Connector With 1-5/8 IN Long Tapered Sleeve And No Metallic Clatter; Unit May Function With Bulbs And Fan Controlled Together, Bulbs And Fan Controlled Separately, Or Each Bulb And Fan Controlled Separately; Finish: |
| Bulb heater/fans provide silent warmth and superior ventilation in a compact package |
| Heat and ventilation functions may be controlled separately or in combination so you're always in control of the environment |
| Very low profile, white polymeric grille blends into most ceilings |
| 70 cfm fan provides excellent ventilation at a quiet 3.5 Sones and will keep your bath free from steam or bathroom odors |
| Use 250 W BR40 size infrared bulbs (not included) for comfortable heating performance |
| Quiet, highly efficient polymeric blower wheels maintain consistent power, while polymeric dampers prevent backdrafts and eliminate mechanical noise for reliable operation and a comfortable environment, UL listed for safety |
| Sturdy steel housing, a plug-in, permanently lubricated motor adjustable mounting brackets with keyhole slots and a 4 in round duct connector with tapered sleeves combine to make installation logical and simple |
| Control operation with a choice of wall controls, available separately, 57W, 57V, 59W, 59V, 61W, 61V, 63W, 63V, 64W, 64V, 68W, 68V, 70TW, 71V, 72W, 72V, 269WL, 269VL, DH100W or T24H |
| Ceiling heaters are intended to provide supplemental heat and not to take the place of the home's main heat source |
| Polymeric dampers eliminate metallic clatter while preventing backdrafts |
| Polymeric 4 in round duct connectors with tapered sleeves provide easier, positive ducting |
| Adjustable mounting brackets with keyhole slots that span upto 24 in |
| Use with Broan® model 68W, 68V, 67W, 67V, 66W, 66V, 65W or 65V multi-function control (available separately) |
